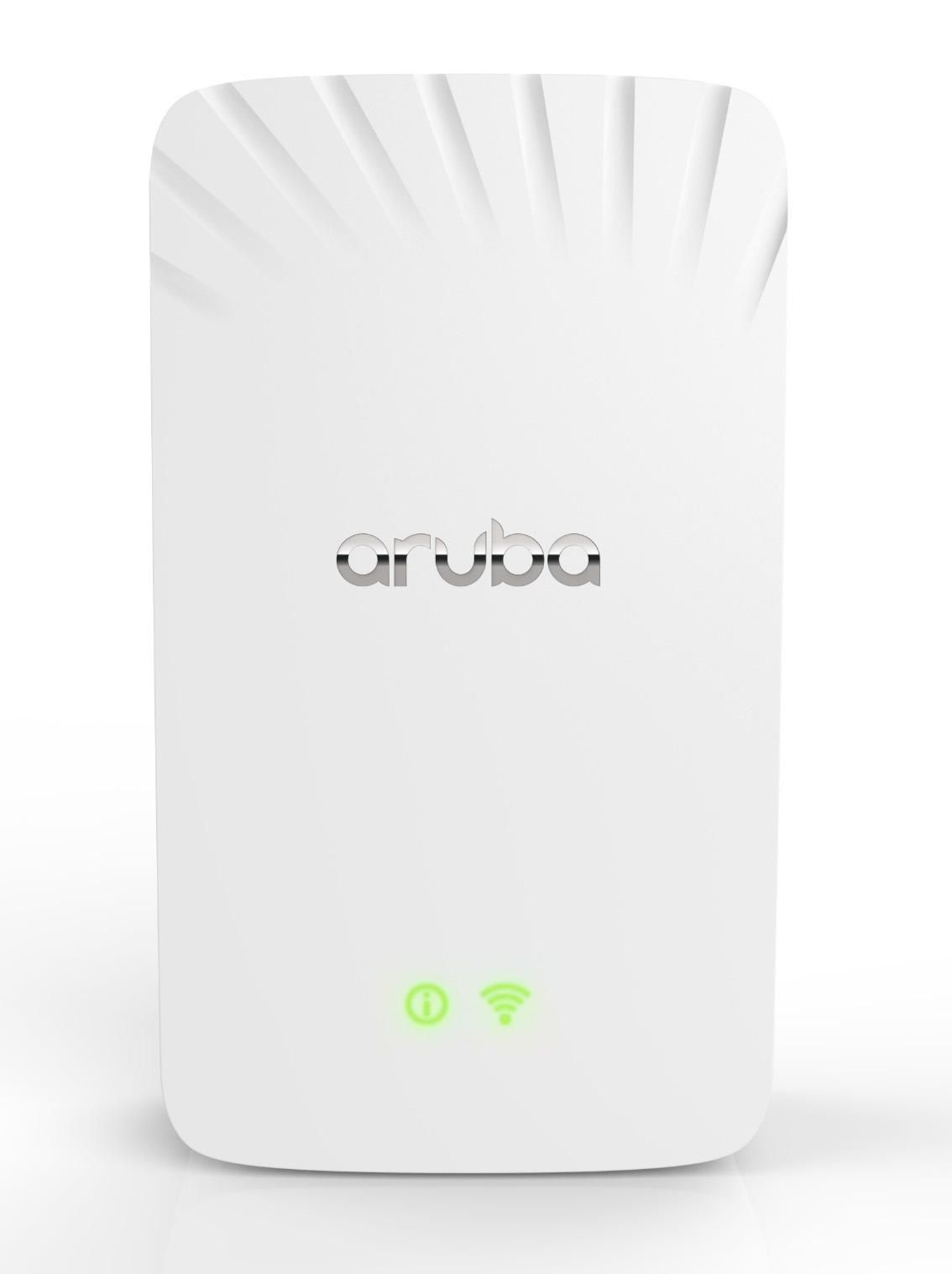

HPE Aruba Networking AP-505HR (EU) Remote AP Bundle Desk Mount and Power Hospitality Access Point
Aruba Networking AP-505HR (EU) Remote AP Bundle Desk Mount and Power Hospitality Access Point
Part#:
R3V56A
Manufacturer:
HPE
Excl. VAT: £611.93
RRP: £859.00
Save: 29%
Available to Backorder: contact for lead time
HPE Aruba Networking 500H Series Hospitality Access Points deliver cost-effective Wi-Fi 6 coverage in a compact form factor that is ideal for hotels, residence halls, and remote offices. With 1.49 Gbps maximum combined speed, zero touch provisioning (ZTP), and wired ports, the 500H series is ready to improve wireless experiences for guests, employees, students, and teleworkers. The 500H series is Wi-Fi CERTIFIED and supports 802.11ax features; orthogonal frequency-division multiple access (OFDMA) for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 500H series includes a limited lifetime warranty.
What is new supporting point:
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise
You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across the network, enhancing user and device security
The AP provides IoT-ready Bluetooth 5 and Zigbee support
The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
Cost-effective Wi-Fi 6 hospitality access points provide up to 1.49 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices
What is new supporting point:
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise
You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across the network, enhancing user and device security
The AP provides IoT-ready Bluetooth 5 and Zigbee support
The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
Cost-effective Wi-Fi 6 hospitality access points provide up to 1.49 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices
More Information
Part#
R3V56A
EAN
0190017395807
Specification
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 1000,5000 Mbit/s |
| Maximum data transfer rate | 1487 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 1000,5000 Mbit/s |
| Certification | Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location (AP-505H only) Bluetooth SIG Ethernet Alliance (PoE) |
| Maximum data transfer rate | 1487 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Compatible operating systems | HPE Aruba Networking Operating System and HPE Aruba Networking Instant OS 8.7.1.0 (AP-503H) and 8.7.0.0 (AP-505H), HPE Aruba Networking Operating System 10.3.0.0 (AP-503H), 10.2.0.0 (AP-505H) |
| Wireless LAN features | |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Network | |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ports & interfaces | |
| I/O ports | 1 x HPE Smart Rate RJ-45 port, auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX. 2.5 Gbps speed complies with NBASE-T and 802.3bz specifications 4 x 10/100/1000BASE-T RJ-45 ports, auto-sensing link speed and MDI/MDX |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 1000,5000 Mbit/s |
| Maximum data transfer rate | 1487 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| MACsec support | No |
| Compatible operating systems | HPE Aruba Networking Operating System and HPE Aruba Networking Instant OS 8.7.1.0 (AP-503H) and 8.7.0.0 (AP-505H), HPE Aruba Networking Operating System 10.3.0.0 (AP-503H), 10.2.0.0 (AP-505H) |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| Management features | |
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Power | |
| Power consumption (max) | 50 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Table, Wall |
| Product colour | White |
| Certification | Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location (AP-505H only) Bluetooth SIG Ethernet Alliance (PoE) |
| Recommended usage | Indoor |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5.4 dBi |
| Antenna direction type | Semi-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Weight (imperial) | 0.363 kg (0.8 lbs) |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Certificates | |
| Certification | Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location (AP-505H only) Bluetooth SIG Ethernet Alliance (PoE) |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Weight & dimensions | |
| Width | 86 mm |
| Depth | 47 mm |
| Weight | 360 g |
| Height | 150 mm |
| Other features | |
| I/O ports | 1 x HPE Smart Rate RJ-45 port, auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX. 2.5 Gbps speed complies with NBASE-T and 802.3bz specifications 4 x 10/100/1000BASE-T RJ-45 ports, auto-sensing link speed and MDI/MDX |
| Weight (imperial) | 0.363 kg (0.8 lbs) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| System requirements | |
| Compatible operating systems | HPE Aruba Networking Operating System and HPE Aruba Networking Instant OS 8.7.1.0 (AP-503H) and 8.7.0.0 (AP-505H), HPE Aruba Networking Operating System 10.3.0.0 (AP-503H), 10.2.0.0 (AP-505H) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Manufacturer
HPE
