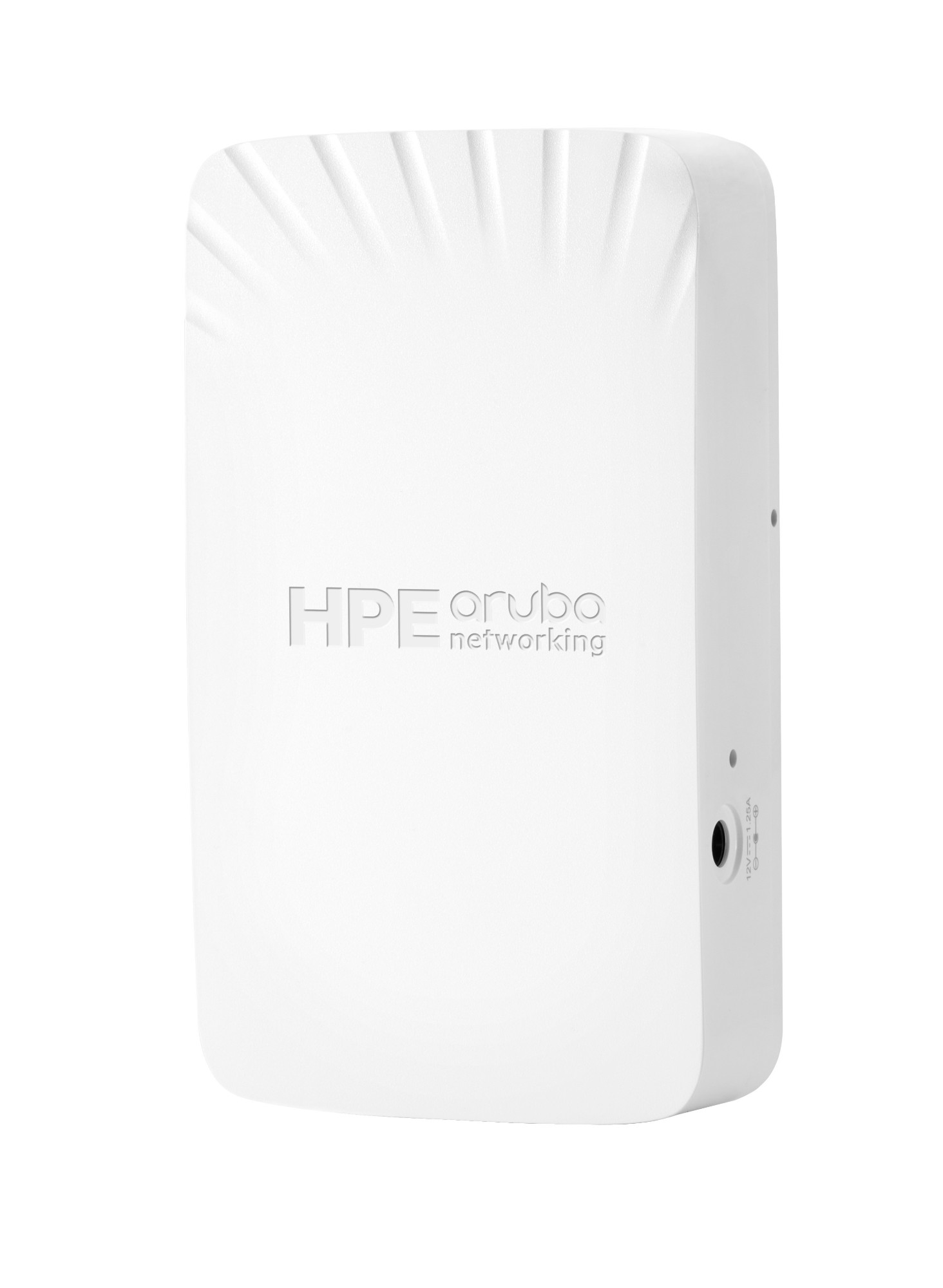

HPE R3V36AR - Aruba AP-503H RW Unified Renew AP

Aruba AP-503H RW Dual-radio 802.11ax 2x2 Unified Hospitality AP with 1+2 Renew Ethernet
Part#:
R3V36AR
Manufacturer:
HPE
Excl. VAT: £110.67
RRP: £445.00
Save: 75%
Available to Backorder: contact for lead time
HPE Aruba Networking 500H Series Unified Hospitality Access Points delivers cost-effective Wi-Fi 6 coverage in a compact form factor that is ideal for hotels, residence halls, and remote offices. With 1.5 Gbps maximum combined speed, Zero Touch Provisioning, and wired ports, the 500H Series is ready to improve wireless experiences for guests, employees, students, and teleworkers. The 500H Series is Wi-Fi CERTIFIED™ and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 500H Series includes a limited lifetime warranty.
More Information
Part#
R3V36AR
Specification
Data transmission
Ethernet LAN data rates10,100,1000 Mbit/s
Maximum data transfer rate1487 Mbit/s
Performance
2.4 GHzYes
5 GHzYes
Auto MDI/MDI-XYes
Spread spectrum methodDSSS, OFDM, OFDMA
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az
Ethernet LAN data rates10,100,1000 Mbit/s
Maximum data transfer rate1487 Mbit/s
MIMO typeMulti User MIMO
MIMOYes
Network
Spread spectrum methodDSSS, OFDM, OFDMA
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az
Features
2.4 GHzYes
5 GHzYes
Auto MDI/MDI-XYes
Spread spectrum methodDSSS, OFDM, OFDMA
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az
Ethernet LAN data rates10,100,1000 Mbit/s
Maximum data transfer rate1487 Mbit/s
BluetoothYes
Bluetooth version5.0
MIMO typeMulti User MIMO
MIMOYes
Maximum data transfer rate (2.4 GHz)287 Mbit/s
Maximum data transfer rate (5 GHz)1200 Mbit/s
Security
Security algorithmsWPA2, WPA3
Ports & interfaces
USB connector typeMicro-USB B
USB 2.0 ports quantity0
Ethernet LAN (RJ-45) ports2
Power
Power consumption (typical)10 W
Power over Ethernet (PoE)Yes
Design
PlacementTable, Wall
Product colourWhite
Antenna
Antenna typeInternal
Antennas quantity2
Antenna gain level (max)5.6 dBi
Antenna direction typeSemi-directional
Antenna featuresIntegrated antenna
Technical details
Compliance certificatesLow Voltage Directive (LVD)
Certificates
Compliance certificatesLow Voltage Directive (LVD)
Weight & dimensions
Width86 mm
Depth47 mm
Weight360 g
Height150 mm
Operational conditions
Operating relative humidity (H-H)5 - 93%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 93%
Manufacturer
HPE
