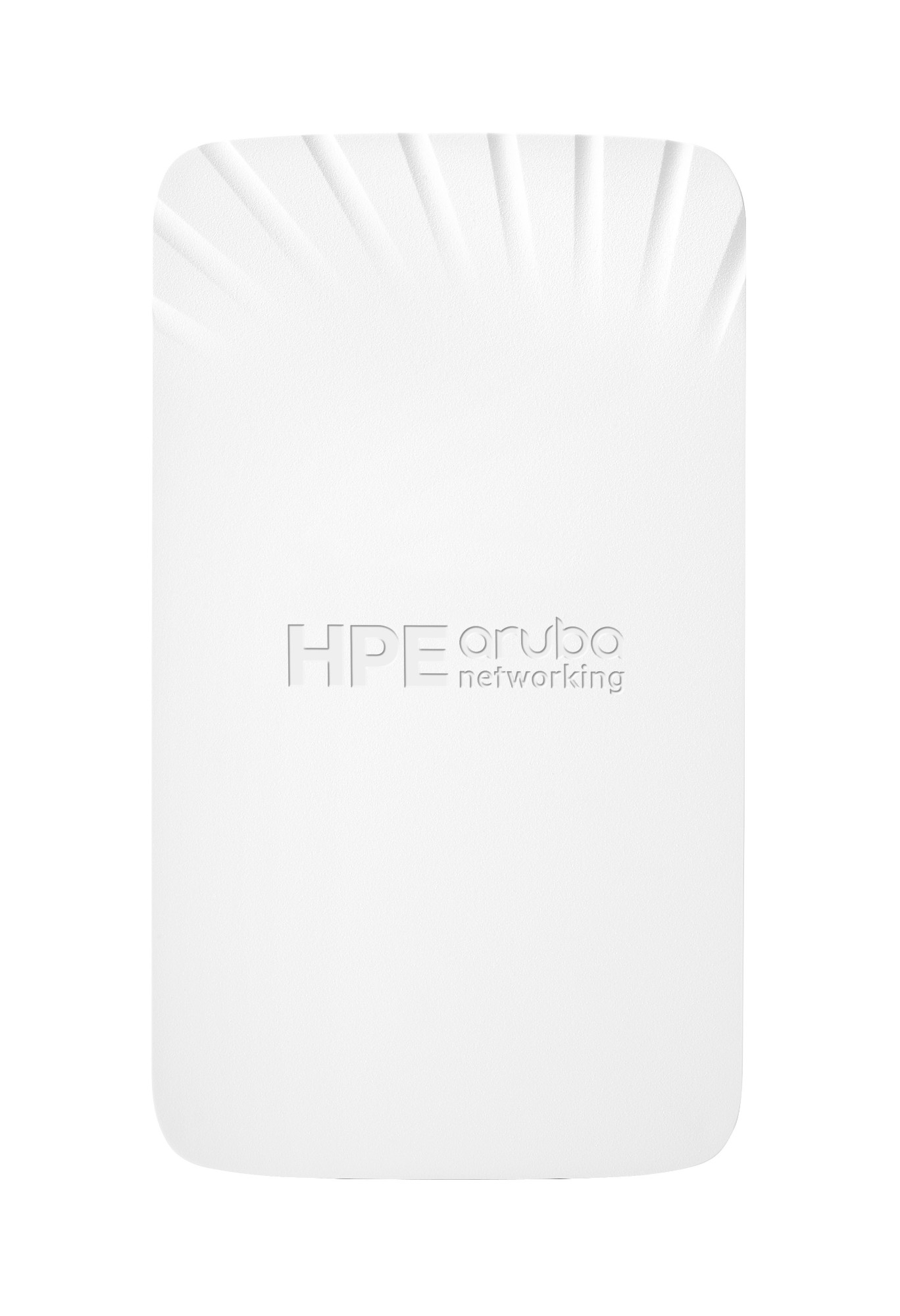

HPE R3V36A - Aruba AP-503H (RW) Unified AP
HPE Aruba Networking AP-503H (RW) Dual Radio 802.11ax 2x2 1+2 Ethernet Unified Hospitality AP
Part#:
R3V36A
Manufacturer:
HPE
Excl. VAT: £230.10
RRP: £536.00
Save: 57%
Available to Backorder: contact for lead time
The Aruba 500H series access points, with Wi-Fi 6 (802.11ax) technology and Aruba’s intelligent software innovations, deliver high performance connectivity for mobile and IoT devices in any environment.
The 500H series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 400% compared to 802.11ac APs.
The 500H series includes AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open certified security, and unified wired and wireless policy with Dynamic Segmentation.
The 500H series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 400% compared to 802.11ac APs.
The 500H series includes AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open certified security, and unified wired and wireless policy with Dynamic Segmentation.
More Information
Part#
R3V36A
EAN
0190017395609
Specification
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1487 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1487 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wireless LAN features | |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Network | |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3az |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1487 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Security | |
| Security algorithms | WPA2, WPA3 |
| Ports & interfaces | |
| USB connector type | Micro-USB B |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (typical) | 10 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Table, Wall |
| Product colour | White |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5.6 dBi |
| Antenna direction type | Semi-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Weight & dimensions | |
| Width | 86 mm |
| Depth | 40 mm |
| Weight | 290 g |
| Height | 150 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 93% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Manufacturer
HPE
