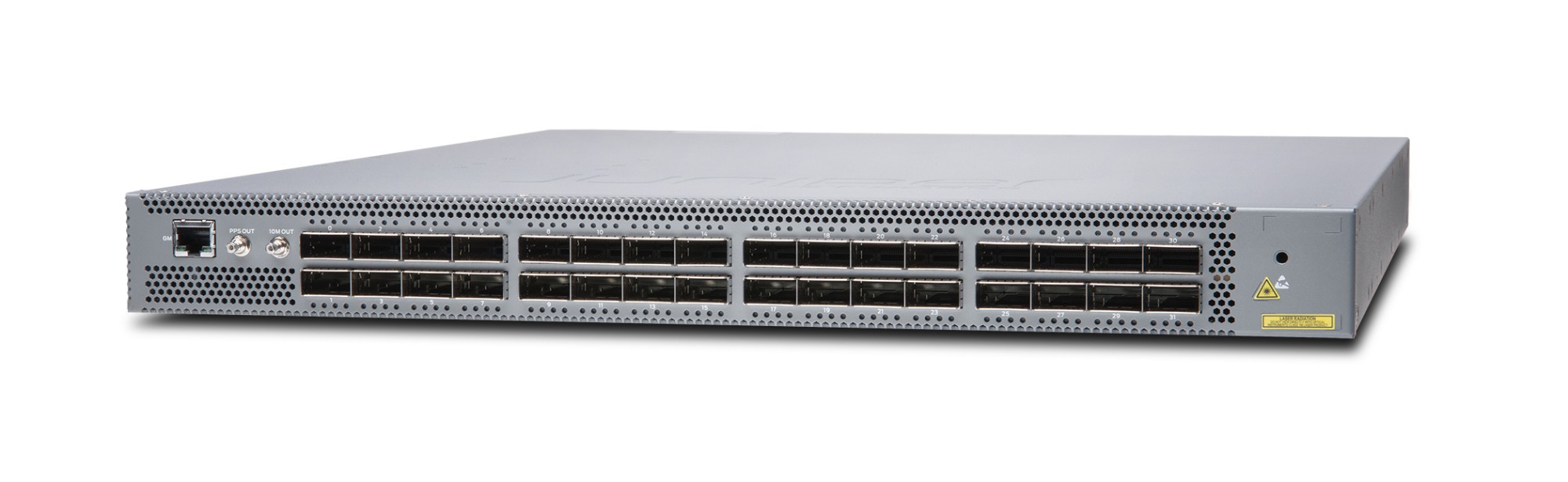

Juniper QFX5200-32C-AFI2 network switch Managed L2/L3 1U Grey
QFX5200 (hardware only; software services sold separately), 32 QSFP+/QSFP28 ports, redundant fans, 2 AC power supplies, back-to-front airflow
Part#:
QFX5200-32C-AFI2
Manufacturer:
Juniper
Excl. VAT: £10,194.19
RRP: £23,685.00
Save: 57%
Available to Backorder: contact for lead time
Juniper Networks is the leader in performance-enabling services that are designed to accelerate, extend, and optimize your high-performance network. Our services allow you to maximize operational efficiency while reducing costs and minimizing risk, achieving a faster time to value for your network. Juniper Networks ensures operational excellence by optimizing the network to maintain required levels of performance, reliability, and availability.
More Information
Part#
QFX5200-32C-AFI2
EAN
0832938093980
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | No |
| Console port | RJ-45 |
| QSFP28 ports quantity | 32 |
| USB Type-A ports quantity | 1 |
| Number of management ports | 3 pc(s) |
| Network | |
| Networking standards | IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1D |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4096 |
| Multiprotocol Label Switching (MPLS) | Yes |
| Address Resolution Protocol (ARP) entries (max) | 32000 |
| IPv6 multicast entries | 28000 |
| IPv4 multicast entries | 52000 |
| Data transmission | |
| Jumbo frames | 9216 |
| Packet buffer memory | 16 MB |
| MAC address table | 136000 entries |
| Jumbo frames support | Yes |
| Forwarding rate | 3200 Mpps |
| Throughput | 6400 Gbit/s |
| Number of VLANs | 4096 |
| Security | |
| Loop protection | Yes |
| Security algorithms | AES, SNMP, SNMPv2, TACACS+, SNMPv3 |
| Root protection | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| IPv6 multicast entries | 28000 |
| IPv4 multicast entries | 52000 |
| Protocols | |
| Virtual Router Redundancy Protocol (VRRP) | Yes |
| Routing protocols | OSPFv2, BGP, BGP4, MPLS |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | Yes |
| Number of fans | 5 fan(s) |
| Redundant fans support | Yes |
| Performance | |
| Processor frequency | 1800 MHz |
| Memory type | DRAM |
| Internal memory | 16000 MB |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Operating system installed | Junos OS |
| Packet buffer memory | 16 MB |
| Power | |
| Power consumption (max) | 312 W |
| Power supply included | Yes |
| Power consumption (typical) | 184 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Other features | |
| Total storage capacity | 64 GB |
| Airflow | 135 CFM |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3048 m |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 520 mm |
| Height | 44 mm |
| Weight | 10.8 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Airflow | 135 CFM |
| Built-in processor | Yes |
| Compliance certificates | RoHS, REACH, BSMI, VCCI, ICES, Federal Communications Commission (FCC), CSA |
| Memory | |
| Packet buffer memory | 16 MB |
| Memory type | DRAM |
| Internal memory | 16000 MB |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, BSMI, VCCI, ICES, Federal Communications Commission (FCC), CSA |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Manufacturer
Juniper
