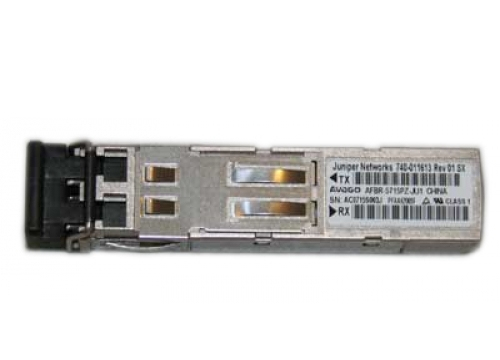

SFP 1000BASE-SX

SFP 1000Base-SX Gigabit Ethernet Optics, 850nm for upto 550m Transmission on MMF
Part#:
QFX-SFP-1GE-SX
Manufacturer:
Juniper
Excl. VAT: £190.85
RRP: £525.00
Save: 64%
Available to Backorder: contact for lead time
Juniper Networks devices support a variety of fixed and pluggable transceivers and network cable, including multimode and single-mode fiber-optic cable. We strongly recommend that only transceivers qualified for Juniper Networks be used on Juniper Networks devices. Different transceiver types (long-range, short-range, copper, and others) can be used together on multiport interface modules as long as they are qualified by Juniper Networks. We cannot guarantee that the interface module will operate correctly if third-party transceivers are used.
More Information
Part#
QFX-SFP-1GE-SX
EAN
0832938057814
Specification
Network
SFP transceiver typeFiber optic
Cabling technology1000BASE-SX
Maximum data transfer rate1000 Mbit/s
Interface typeSFP
Technical details
Hot-Plug supportYes
Maximum transfer distance500 m
Wavelength850 nm
Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
Tx power (min)-9.5 dBmW
Tx power (max)-3 dBmW
Rx power (min)-21 dBmW
Compatible productsJuniper QFX
Cabling technology1000BASE-SX
Performance
Hot-Plug supportYes
Compatible productsJuniper QFX
SFP transceiver typeFiber optic
Maximum transfer distance500 m
Wavelength850 nm
Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
Tx power (min)-9.5 dBmW
Tx power (max)-3 dBmW
Rx power (min)-21 dBmW
Cabling technology1000BASE-SX
Maximum data transfer rate1000 Mbit/s
Interface typeSFP
Multi-mode fiber (MMF) supportedYes
SFP transceiver standardSX
Features
Hot-Plug supportYes
CertificationMSA
Compatible productsJuniper QFX
Power
Input voltage3.3 V
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 80%
Storage relative humidity (H-H)10 - 85%
Weight & dimensions
Width13.4 mm
Depth56.5 mm
Height8.5 mm
Certificates
CertificationMSA
Manufacturer
Juniper
