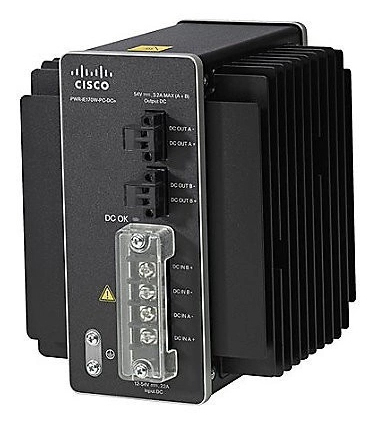

170W Low DC to DC Power Supply
170W Low DC to DC power supply
Part#:
PWR-IE170W-PC-DC=
Manufacturer:
Cisco
Excl. VAT: £959.79
RRP: £1,595.14
Save: 40%
Available to Backorder: contact for lead time
The Cisco industrial din-rail power supplies offer a variety of rugged, reliable, and compact AC and DC power supply options to power Cisco’s industrial Ethernet switches, industrial routers (including industrial gateways), and industrial computing products. Some key features include:
- Power supply options from 50W to 480W
- Operating temperatures ranging between -40°C and +85°C
- Din-rail mountable options
- Enablement of high capacity Power over Ethernet (PoE)
- Conformal coating options
- Power supply options from 50W to 480W
- Operating temperatures ranging between -40°C and +85°C
- Din-rail mountable options
- Enablement of high capacity Power over Ethernet (PoE)
- Conformal coating options
More Information
Part#
PWR-IE170W-PC-DC=
EAN
0882658731372
Specification
| Features | |
|---|---|
| Product type | Power supply |
| Internal | Yes |
| Safety | IP20 |
| Mean time between failures (MTBF) | 2164641 h |
| Product colour | Black |
| Certification | EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 UL 508 Class 1, Div 2/Zone 2 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN 55032:2015, EN 55024: 2010+A1:2015 EN55032:2015, EN 55024: 2010 FCC 15B IEC 61850-3, IEEE1613 EN 61000-6-4, EN 61000-6-2 |
| DIN rail mounting | Yes |
| Harmonized System (HS) code | 85177900 |
| Colour | |
| Product colour | Black |
| Technical details | |
| Internal | Yes |
| Mean time between failures (MTBF) | 2164641 h |
| Height | 146 mm |
| Power | |
| Total power | 170 W |
| Inrush current | 17.3 A |
| DC voltage range | 10.8 - 60 V |
| DC output voltage | 54 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Weight | 1.67 kg |
| Height | 146 mm |
| Width | 114 mm |
| Depth | 150 mm |
| Certificates | |
| Safety | IP20 |
| Certification | EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 UL 508 Class 1, Div 2/Zone 2 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN 55032:2015, EN 55024: 2010+A1:2015 EN55032:2015, EN 55024: 2010 FCC 15B IEC 61850-3, IEEE1613 EN 61000-6-4, EN 61000-6-2 |
| Logistics data | |
| Harmonized System (HS) code | 85177900 |
Manufacturer
Cisco
