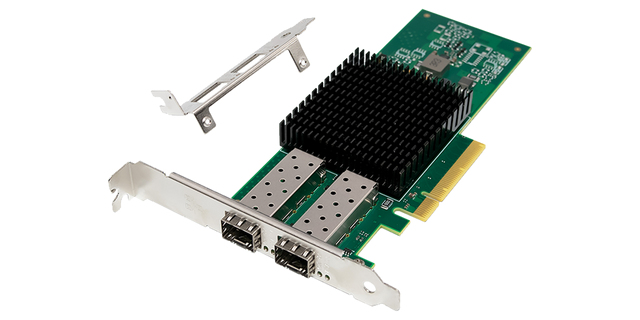

ATGBICS PCIEX8-SFPP-2-BCM57412-AT network card Internal Ethernet 10000 Mbit/s
Broadcom 82599, PCIe 3.0 x8, Dual Port, 10Gbps, 2x Open SFP+, 168x69mm
Part#:
PCIEx8-SFPP-2-BCM57412-AT
Manufacturer:
ATGBICS
Excl. VAT: £180.00
In stock
Broadcom 82599 based NIC PCIe 3.0 x8 Dual Port 10GbE Open SFP+
More Information
Part#
PCIEx8-SFPP-2-BCM57412-AT
Specification
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Network | |
| Chipset | Broadcom BCM975412A |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Broadcom BCM975412A |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Green |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Design | |
| Product colour | Green |
| Chipset | Broadcom BCM975412A |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Component for | PC/Server |
| System requirements | |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 168 mm |
| Depth | 69 mm |
| Performance | |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Other features | |
| Chipset | Broadcom BCM975412A |
| Country of origin | China |
Manufacturer
ATGBICS
