ATGBICS PCIEX16-Q28-2-NVX5-AT network card Internal Ethernet 100000 Mbit/s
NVIDIA ConnectX-5, PCIe 3.0 x16, Dual Port, 100Gbps, 2x Open QSFP28, 150x68mm
Part#:
PCIEx16-Q28-2-NVX5-AT
Manufacturer:
ATGBICS
Excl. VAT: £346.00
In stock

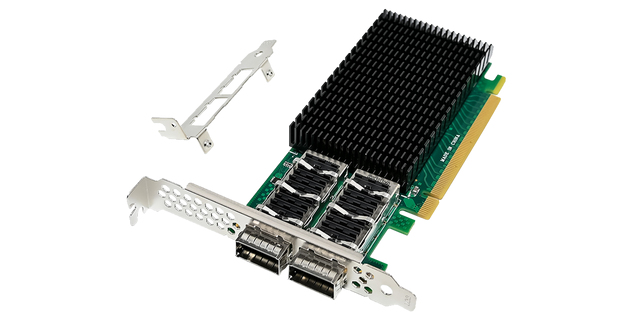

NVIDIA ConnectX-5 based NIC PCIe 3.0 x16 Dual Port 100GbE Open QSFP28
The PCIe x16 Mellanox ConnectX-5 Dual-Port 100G Ethernet Adapter Cards provide a high performance and flexible solution with two ports of 100Gb/s InfiniBand and Ethernet connectivity, low latency, and a high message rate, plus an embedded PCIe switch and NVMe over Fabrics offloads. These intelligent remote direct memory access (RDMA) -enabled adapters provide advanced application offload capabilities for high-performance computing (HPC), cloud hyperscale, and storage platforms.
The PCIe x16 Mellanox ConnectX-5 Dual-Port 100G Ethernet Adapter Cards provide a high performance and flexible solution with two ports of 100Gb/s InfiniBand and Ethernet connectivity, low latency, and a high message rate, plus an embedded PCIe switch and NVMe over Fabrics offloads. These intelligent remote direct memory access (RDMA) -enabled adapters provide advanced application offload capabilities for high-performance computing (HPC), cloud hyperscale, and storage platforms.
More Information
Part#
PCIEx16-Q28-2-NVX5-AT
Specification
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | QSFP28 |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 100000 Mbit/s |
| Network | |
| Chipset | NVIDIA ConnectX-5 |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | NVIDIA ConnectX-5 |
| Ethernet LAN data rates | 1000,10000,25000,40000,50000,100000 Mbit/s |
| Maximum data transfer rate | 100000 Mbit/s |
| Technical details | |
| Product colour | Green |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Design | |
| Product colour | Green |
| Chipset | NVIDIA ConnectX-5 |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Component for | PC/Server |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 68 mm |
| Performance | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other features | |
| Chipset | NVIDIA ConnectX-5 |
| Country of origin | China |
Manufacturer
ATGBICS
