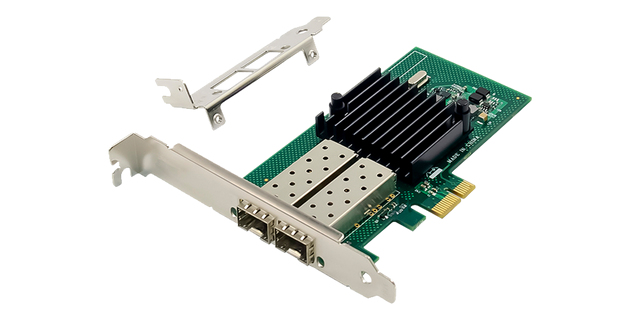

ATGBICS PCIEX1-SFP-2-I350-AT network card Internal Ethernet 1000 Mbit/s
Intel based I350-AM2, PCIe x2.1, Dual Port, 1Gbps, 2x Open SFP, 113x69mm
Part#:
PCIEx1-SFP-2-I350-AT
Manufacturer:
ATGBICS
Excl. VAT: £88.00
Available to Backorder: contact for lead time
Intel based I350 NIC PCIe x2.1 Dual Port 1GbE Open SFP
The Intel Ethernet Server Adapter I350 family represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data centre by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments. This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).
The Intel Ethernet Server Adapter I350 family represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data centre by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments. This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).
More Information
Part#
PCIEx1-SFP-2-I350-AT
Specification
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Network | |
| Chipset | Intel® I350-AM2 |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Intel® I350-AM2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Product colour | Green |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Design | |
| Product colour | Green |
| Chipset | Intel® I350-AM2 |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Component for | PC/Server |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 113 mm |
| Depth | 69 mm |
| Performance | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other features | |
| Chipset | Intel® I350-AM2 |
| Country of origin | China |
Manufacturer
ATGBICS
