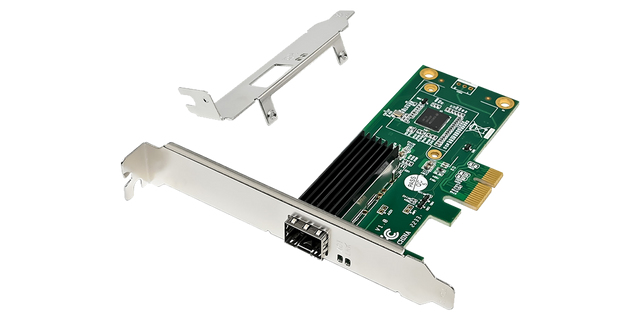

ATGBICS PCIEX1-SFP-1-I210-AT network card Internal Ethernet 1000 Mbit/s
Intel I210, PCIe 2.1 x1, Single Port, 1Gbps, 1x Open Mini GBIC, 105x56mm
Part#:
PCIEx1-SFP-1-I210-AT
Manufacturer:
ATGBICS
Excl. VAT: £40.00
Available to Backorder: contact for lead time
Intel I210 based NIC PCIe 2.1 x1 Single Port 1GbE Open Mini GBIC
This PCIe Intel I210 Single-port Gigabit SFP Fiber Network card is a single port, compact, low power component that supports GbE designs, it supports compliant with the IEEE802.3u specification for 10/100Mbps Ethernet and the IEEE802.3ab specification for 1000Mbps Ethernet.
It can be used for a server system such as rack mounted or pedestal servers, another system configuration is for blade servers as a LOM or mezzanine card, it can also be used as an in embedded application such as network appliances.
This PCIe Intel I210 Single-port Gigabit SFP Fiber Network card is a single port, compact, low power component that supports GbE designs, it supports compliant with the IEEE802.3u specification for 10/100Mbps Ethernet and the IEEE802.3ab specification for 1000Mbps Ethernet.
It can be used for a server system such as rack mounted or pedestal servers, another system configuration is for blade servers as a LOM or mezzanine card, it can also be used as an in embedded application such as network appliances.
More Information
Part#
PCIEx1-SFP-1-I210-AT
Specification
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | MiniGBIC |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Network | |
| Chipset | Intel I210 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Product colour | Green |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Design | |
| Product colour | Green |
| Chipset | Intel I210 |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Component for | PC/Server |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| System requirements | |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 56 mm |
| Performance | |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other features | |
| Chipset | Intel I210 |
| Country of origin | China |
Manufacturer
ATGBICS
