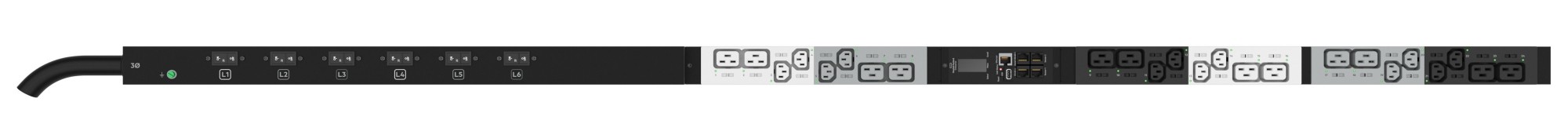

HPE P9S22A - G2 Mtrd/Swtd 3P 17.3kVA/NA/J PDU
G2 Metered/Switched 3Ph 17.3kVA/60309 4-wire 48A/208V Out (12) C13 (12) C19/Vertical NA/JP PDU
Part#:
P9S22A
Manufacturer:
HPE
Excl. VAT: £5,444.00
Available to Backorder: contact for lead time
Looking for a flexible, accurate power distribution solution that allows metering and switching at the outlet level and supports both local and remote power management? The HPE G2 Metered and Switched Power Distribution Unit (PDU) provides both local and remote power management with outlet-level power metering and switching. An LCD screen provides local monitoring and alert indications, while remote access and configuration are available through secure Web, SNMP, CLI, or Telnet interfaces. Remote outlet monitoring offers ±1% billing grade accuracy while remote switching capabilities support power on/off functionality to remotely reboot equipment or restrict outlet usage. The G2 Metered and Switched PDU features a low-profile, single-piece design with multiple mounting options and ease of access to rear devices for maintenance. It is compatible with all Advanced and Enterprise Series Racks, as well as with many non-HPE racks using standard button and keyhole mounting.
What is new supporting point:
A hot swappable Network Management Card (NMC) allowing for power to remain distributed with the removal of the management card thus creating zero down time.
Enhanced environmental sensor options on the G2 Metered and Switched PDUs for monitoring temperature, humidity, intrusion, and water leakage within the rack.
Choose the optional Locking Power Cord for secure cable retention to both the PDU and target device.
HPE G2 Metered and Switched Power Distribution Units (PDU) are rated for operating temperatures of up to 60°C (or 140°F).
Color-coded receptacles on single and three phase models to easily distinguish between the different load segments/phases.
What is new supporting point:
A hot swappable Network Management Card (NMC) allowing for power to remain distributed with the removal of the management card thus creating zero down time.
Enhanced environmental sensor options on the G2 Metered and Switched PDUs for monitoring temperature, humidity, intrusion, and water leakage within the rack.
Choose the optional Locking Power Cord for secure cable retention to both the PDU and target device.
HPE G2 Metered and Switched Power Distribution Units (PDU) are rated for operating temperatures of up to 60°C (or 140°F).
Color-coded receptacles on single and three phase models to easily distinguish between the different load segments/phases.
More Information
Part#
P9S22A
EAN
1900170683050
Specification
Design | |
---|---|
Type | Three-phase |
PDU types | Metered, Switched |
Mounting | Vertical |
Rack capacity | 0U |
Ports & interfaces | |
AC outlets quantity | 24 AC outlet(s) |
AC outlet types | C19 coupler |
Power | |
Nominal input voltage | 208 V |
Maximum current | 48 A |
Load capacity | 10000 VA |
Weight & dimensions | |
Weight | 13.9 kg |
Width | 261.9 mm |
Depth | 1979.9 mm |
Height | 132.1 mm |
Manufacturer
HPE
