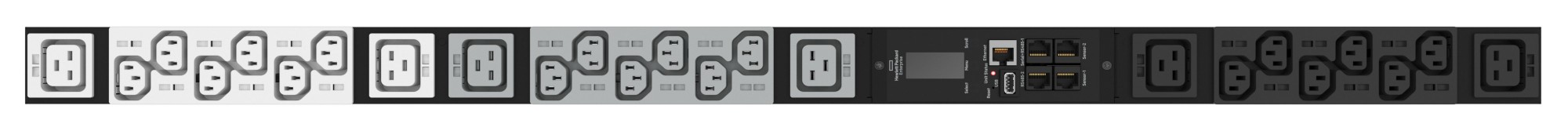

HPE P9R82A - G2 Mtrd 3P 17.3kVA/18 C13 N/J PDU
G2 Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (18) C13 (6) C19/Vertical NA/JP PDU
Part#:
P9R82A
Manufacturer:
HPE
Excl. VAT: £2,243.00
Available to Backorder: contact for lead time
Do you need rack level power monitoring over the network? With billing grade accuracy, HPE G2 Metered Power Distribution Units (PDU) are an excellent choice for data centers wanting to make the most of circuit capacity or for co-location facilities needing to precisely track power usage for billing purposes. The G2 Metered PDUs offer load segment power metering and have a low profile single piece design with multiple mounting options and ease of access to rear devices for maintenance. Designed for HPE racks but also work in a large variety of third party racks as well using standard button and keyhole mounting. They can be installed on either side of the rack with outlets facing the back of the rack for easy access and improved clearance. Also for higher power density they can be installed side by side on both sides of the rack with the outlets facing in towards the center of the rack. HPE G2 Metered PDUs are backed by HPE's limited 3-year warranty.
What is new supporting point:
HPE G2 Metered Power Distribution Units (PDU) are rated for operating temperatures of up to 60°C (or 140°F).
Color-coded receptacles on single and three phase models to easily distinguish between the different load segments/phases.
A hot swappable Network Management Card (NMC) allowing for power to remain distributed with the removal of the management card thus creating zero down time.
Enhanced environmental sensor options on the G2 Metered PDUs for monitoring temperature, humidity, intrusion, and water leakage within the rack.
Choose the optional Locking Power Cord for secure cable retention to both the PDU and target device.
What is new supporting point:
HPE G2 Metered Power Distribution Units (PDU) are rated for operating temperatures of up to 60°C (or 140°F).
Color-coded receptacles on single and three phase models to easily distinguish between the different load segments/phases.
A hot swappable Network Management Card (NMC) allowing for power to remain distributed with the removal of the management card thus creating zero down time.
Enhanced environmental sensor options on the G2 Metered PDUs for monitoring temperature, humidity, intrusion, and water leakage within the rack.
Choose the optional Locking Power Cord for secure cable retention to both the PDU and target device.
More Information
Part#
P9R82A
EAN
1900170798440
Specification
Design | |
---|---|
Type | Three-phase |
PDU types | Metered |
Mounting | Vertical |
Rack capacity | 0U |
Ports & interfaces | |
AC outlets quantity | 24 AC outlet(s) |
AC outlet types | C19 coupler |
Power | |
Nominal input voltage | 208 V |
Maximum current | 48 A |
Load capacity | 10000 VA |
Weight & dimensions | |
Weight | 10.8 kg |
Width | 52 mm |
Depth | 112 mm |
Height | 915 mm |
Manufacturer
HPE
