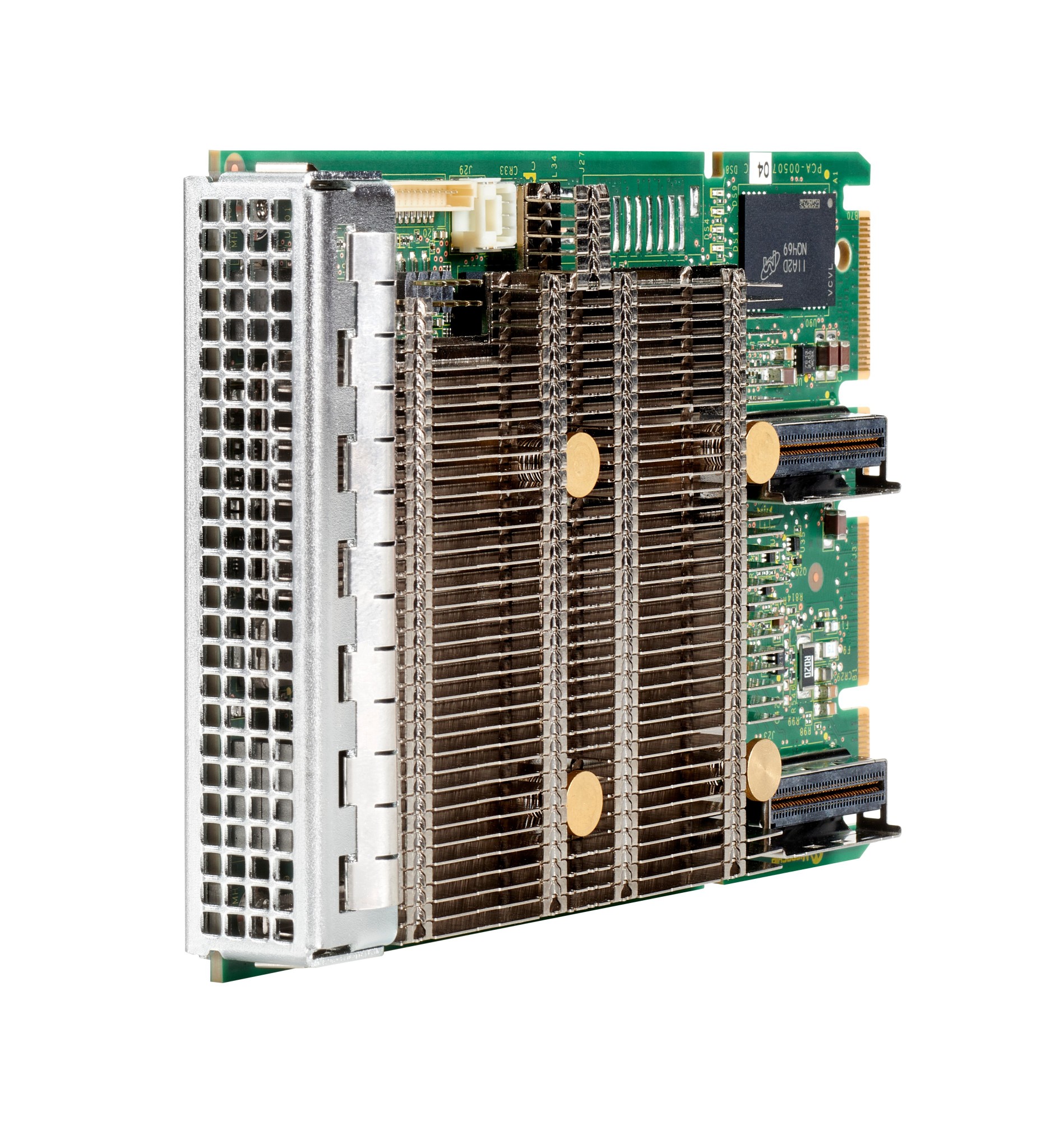

HPE P39959-B21 - SR416ie-m Gen11 SPDM Storage Cntlr
SR416ie-m Gen11 x16 Lanes 4GB Cache SPDM Mezzanine Storage Controller
Part#:
P39959-B21
Manufacturer:
HPE
Excl. VAT: £2,226.70
RRP: £2,411.00
Save: 8%
Available to Backorder: contact for lead time
Does your data center need increased storage, protection, flexibility, and performance for today’s applications demands? HPE Compute SR 900 Series Gen11 Controller supports 24Gb/s SAS and PCIe 4.0 for increased performance while supporting advanced RAID levels with 8 GB flash-backed write cache (FBWC). This tri-mode (SAS/SATA/NVMe) controller operates in mixed mode which combines RAID and HBA operations simultaneously, giving you improved deployment flexibility. The HPE Compute SR932i-p Gen11 Controller provides the ability to support internally attached drives, allowing integration with existing hardware. This controller also features HPE SR Secure Encryption for data-at-rest using controller-based Encryption(CBE) for SAS, SATA and NVMe devices which improves reliability. The Gen11 features Hardware Root of Trust, and Security Protection Data Model (SPDM) support.
What is new supporting point:
Standard PCIe form-factor.
DMTF SPDM supports certificate-based authentication with HPE iLO6.
Hardware Root of Trust (HWRoT) protects against malicious firmware.
What is new supporting point:
Standard PCIe form-factor.
DMTF SPDM supports certificate-based authentication with HPE iLO6.
Hardware Root of Trust (HWRoT) protects against malicious firmware.
More Information
Part#
P39959-B21
EAN
0190017658414
Specification
Storage | |
---|---|
Storage drive interface | PCI Express, Serial ATA, Serial Attached SCSI (SAS) II |
Storage drives installed | No |
RAID levels | 60 |
Data transfer rate | 46 Gbit/s |
Supported storage drive interfaces | Serial ATA III |
Hard drive | |
RAID levels | 60 |
Technical details | |
Data transfer rate | 46 Gbit/s |
Weight & dimensions | |
Width | 190.5 mm |
Depth | 241.3 mm |
Weight | 400 g |
Height | 57.1 mm |
Other features | |
Internal memory | 8192 MB |
Manufacturer
HPE
