HPE P35519-B21 - DL180 G10 4210R 1P 16G8SFF Renew Svr

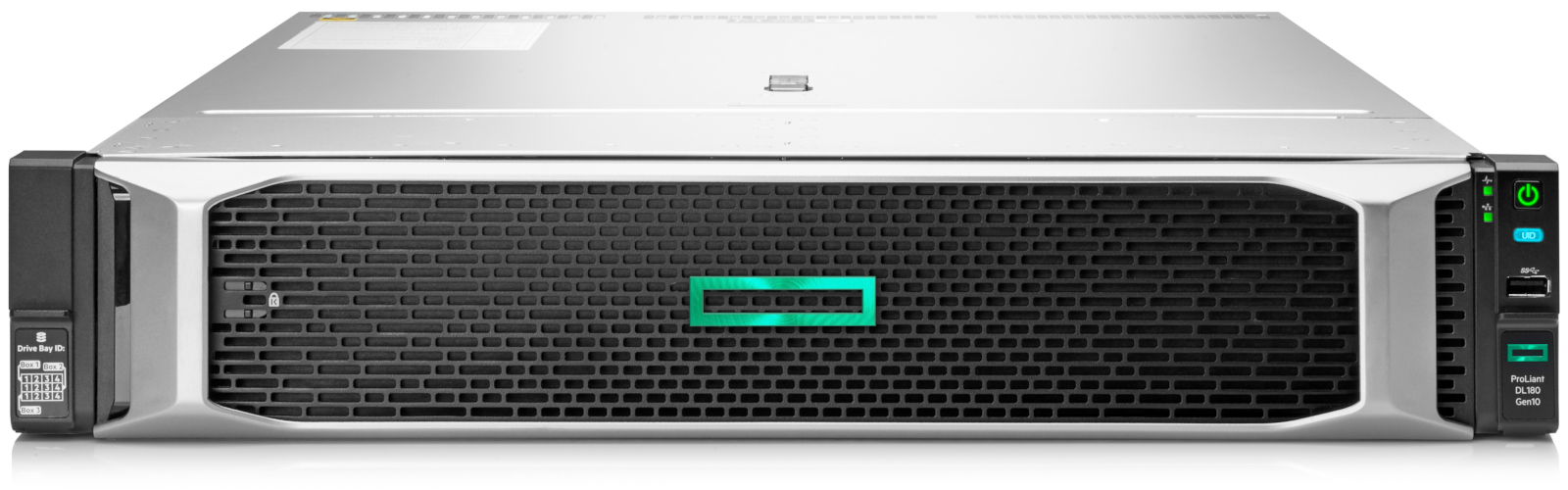

HPE ProLiant DL180 Gen10 4210R 2.4GHz 10-core 1P 16GB-R S100i 8SFF 500W PS Renew Server
Part#:
P35519R-B21
Manufacturer:
HPE
Excl. VAT: £2,783.00
Available to Backorder: contact for lead time
HPE ProLiant DL180 Gen10 4210R 2.4GHz 10-core 1P 16GB-R S100i 8SFF 500W PS Renew Server
More Information
Part#
P35519R-B21
Specification
| Processor | |
|---|---|
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Thermal Design Power (TDP) | 100 W |
| Tcase | 84 °C |
| Supported instruction sets | SSE4.2, AVX, AVX 2.0, AVX-512 |
| Scalability | 2S |
| Processor threads | 20 |
| Processor package size | 76.0 x 56.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Cascade Lake |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Maximum number of PCI Express lanes | 48 |
| Maximum internal memory supported by processor | 1.02 TB |
| Execute Disable Bit | Yes |
| Embedded options available | Yes |
| Processor cache | 13.75 MB |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 3.2 GHz |
| Number of processors installed | 1 |
| Processor model | 4210R |
| Processor socket | LGA 3647 (Socket P) |
| Processor cores | 10 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel C622 |
| Maximum number of SMP processors | 2 |
| Processor family | Intel Xeon Silver |
| Memory | |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 16x DIMM |
| Memory clock speed | 2933 MHz |
| Maximum internal memory | 1.02 TB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Storage | |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Optical drive type | No |
| Number of HDDs supported | 8 |
| Maximum storage capacity | 52 TB |
| Hot-Plug support | Yes |
| HDD interface | Serial ATA |
| Graphics | |
| On-board graphics card model | Not available |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (2U) |
| Performance | |
| Compatible operating systems | Windows Server 2016, 2019 VMware ESXi 6.5 U3, 6.7 U3, 7.0 Red Hat Enterprise Linux (RHEL) 7.6, 8.0 SUSE Linux Enterprise Server (SLES) 12 SP4, 15 SP1 |
| Remote administration | iLO 5 ASIC |
| Trusted Platform Module (TPM) | Yes |
| Operating system installed | No |
| Software | |
| Compatible operating systems | Windows Server 2016, 2019 VMware ESXi 6.5 U3, 6.7 U3, 7.0 Red Hat Enterprise Linux (RHEL) 7.6, 8.0 SUSE Linux Enterprise Server (SLES) 12 SP4, 15 SP1 |
| Operating system installed | No |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 197098 |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 500 W |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Trusted Platform Module (TPM) | Yes |
| Supported HDD sizes | 2.5" |
| Rack mounting | Yes |
| Hot-Plug support | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Chassis type | Rack (2U) |
| Management features | |
| Remote administration | iLO 5 ASIC |
| Weight & dimensions | |
| Width | 445.4 mm |
| Height | 87.3 mm |
| Depth | 634.7 mm |
Manufacturer
HPE
