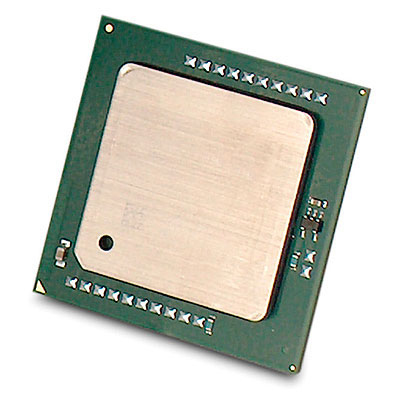

HPE P16385-B21 - SY 480/660 Gn10 XeonG 6246 Renew Kit
HPE Synergy 480/660 Gen10 Intel Xeon-Gold 6246 (3.3GHz/12-core/165W) Renew Processor Kit
Part#:
P16385R-B21
Manufacturer:
HPE
Excl. VAT: £4,380.00
Available to Backorder: contact for lead time
HPE Synergy 480/660 Gen10 Intel Xeon-Gold 6246 (3.3GHz/12-core/165W) Renew Processor Kit
More Information
Part#
P16385R-B21
Specification
| Processor | |
|---|---|
| Processor base frequency | 3.3 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Cascade Lake |
| Thermal Design Power (TDP) | 165 W |
| Processor cache | 25 MB |
| Processor model | 6246 |
| Processor threads | 24 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 4.2 GHz |
| Stepping | B1 |
| Bus type | UPI |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor family | Intel® Xeon® Gold |
| Processor cores | 12 |
| Processor socket | LGA 3647 (Socket P) |
| Processor series | Intel Xeon Gold 6000 Series |
| Processor cache type | L3 |
| Memory | |
| Maximum internal memory supported by processor | 1000 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2933 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | No |
| Power | |
| Thermal Design Power (TDP) | 165 W |
| Technical details | |
| Intel TSX-NI | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX-512 |
| Scalability | 4S |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 165 W |
| Processor series | Intel Xeon Gold 6000 Series |
| Market segment | Server |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor cache type | L3 |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Features | |
| Maximum number of PCI Express lanes | 48 |
| Thermal Design Power (TDP) | 165 W |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX-512 |
| Scalability | 4S |
| Embedded options available | No |
| Market segment | Server |
| Harmonized System (HS) code | 85423119 |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® Speed Shift Technology | Yes |
| Intel TSX-NI | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® Speed Select technology - Performance Profile (Intel® SST-PP) | No |
| Intel® Optane™ DC Persistent Memory Supported | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Run Sure Technology | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Speed Select Technology - Base Frequency (Intel® SST-BF) | No |
| Operational conditions | |
| Tcase | 76 °C |
| Logistics data | |
| Harmonized System (HS) code | 85423119 |
| Other features | |
| Compatibility | SY 480/660 GEN10 |
Manufacturer
HPE
