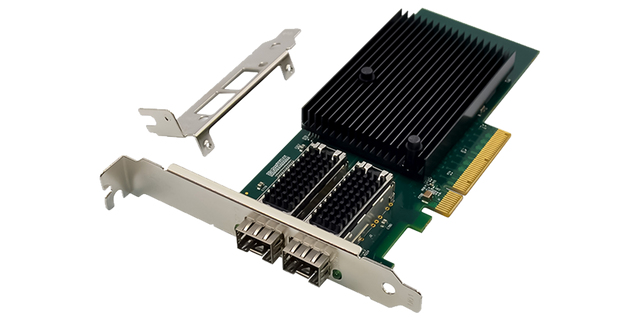

ATGBICS P08446-B21-C network card Internal Ethernet 10000 Mbit/s
HPE P08446-B21, Intel X710, PCIe 3.0 x8, Dual Port, 10Gbps, 2x SFP+, 167x69mm
Part#:
P08446-B21-C
Manufacturer:
ATGBICS
Excl. VAT: £140.00
In stock
HPE® P08446-B21 alternative Intel X710 NIC PCIe 3.0 x8 Dual Port 10GbE SFP+
The Intel Ethernet Converged Network Adapter X710 addresses the demanding needs of an agile data centre by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks, and proven, reliable performance.
X710DA2 network adapters are the foundation for server connectivity, providing broad interoperability, critical performance optimisations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.
▪ PCI Express (PCIe) 3.0, x8
▪ Network Virtualization offloads including VxLAN, GENEVE, NVGRE, MPLS, and VxLAN- GPE with Network Service Headers (NSH)
▪ Intel Ethernet Flow Director for hardware-based application traffic steering
▪ Dynamic Device Personalization (DDP) enables increased packet processing efficiency for NFV and Cloud deployments
▪ Data Plane Development Kit (DPDK) optimized for efficient packet processing
▪ Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
▪ Intelligent offloads to enable high performance on servers with Intel Xeon processors
▪ I/O virtualization innovations for maximum performance in a virtualized server
The Intel Ethernet Converged Network Adapter X710 addresses the demanding needs of an agile data centre by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks, and proven, reliable performance.
X710DA2 network adapters are the foundation for server connectivity, providing broad interoperability, critical performance optimisations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.
▪ PCI Express (PCIe) 3.0, x8
▪ Network Virtualization offloads including VxLAN, GENEVE, NVGRE, MPLS, and VxLAN- GPE with Network Service Headers (NSH)
▪ Intel Ethernet Flow Director for hardware-based application traffic steering
▪ Dynamic Device Personalization (DDP) enables increased packet processing efficiency for NFV and Cloud deployments
▪ Data Plane Development Kit (DPDK) optimized for efficient packet processing
▪ Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
▪ Intelligent offloads to enable high performance on servers with Intel Xeon processors
▪ I/O virtualization innovations for maximum performance in a virtualized server
More Information
Part#
P08446-B21-C
Specification
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Network | |
| Chipset | Intel® X710-BM2 |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Intel FTX710-BM2 |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Green |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Design | |
| Product colour | Green |
| Chipset | Intel® X710-BM2 |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Component for | PC/Server |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| System requirements | |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 167 mm |
| Depth | 69 mm |
| Performance | |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other features | |
| Chipset | Intel® X710-BM2 |
| Country of origin | China |
Manufacturer
ATGBICS
