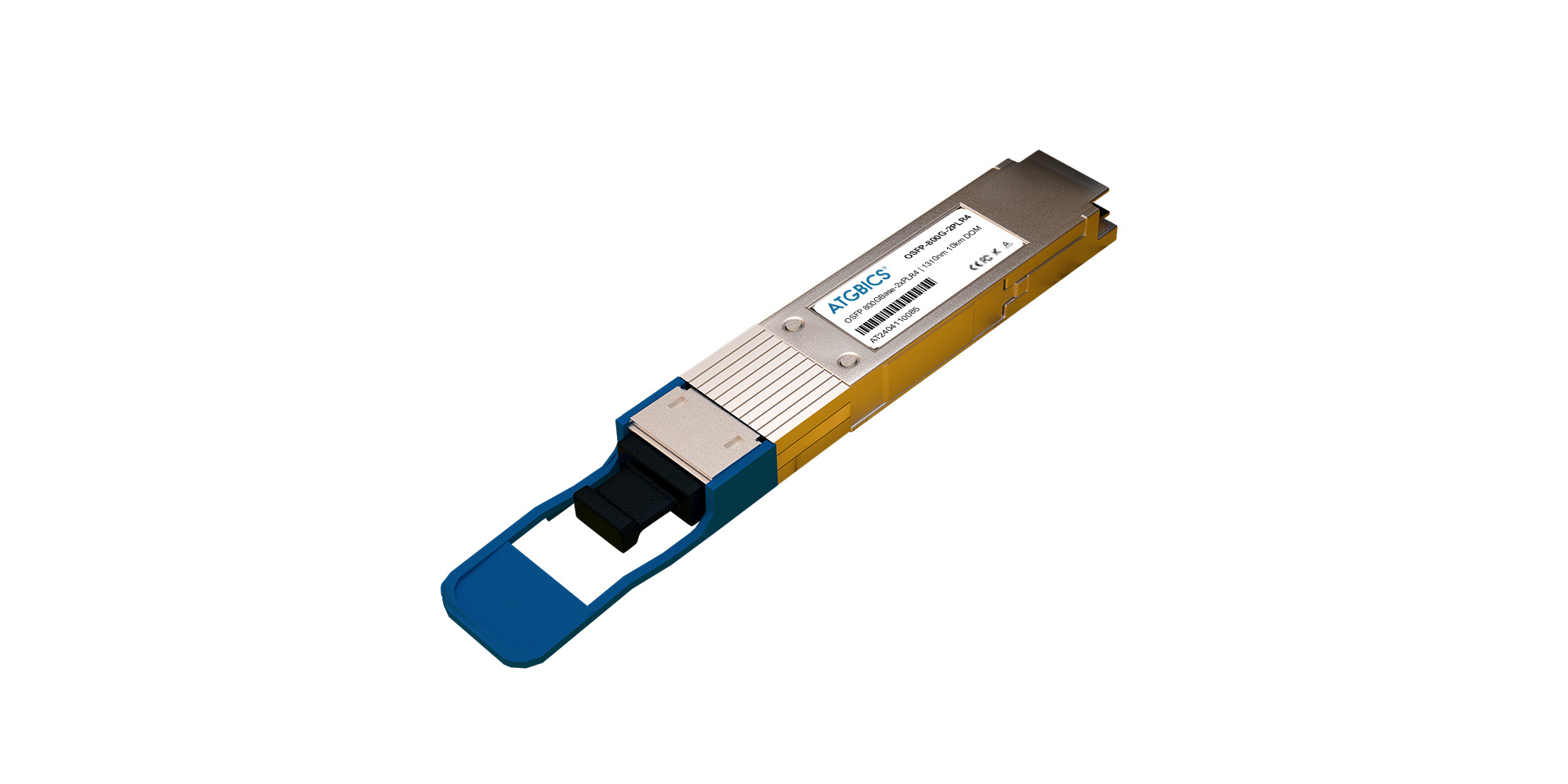

ATGBICS OSFP-800G-2PLR4 Arista compatible Transceiver OSFP 800GBase-LR8/2PLR4 (1271/1291/1311/1331nm SMF 10km 2xMPO-12 DOM)
OSFP-800G-2PLR4 Arista compatible Transceiver OSFP 800GBase-LR8/2PLR4 (1271/1291/1311/1331nm SMF 10km 2xMPO-12 DOM)
Part#:
OSFP-800G-2PLR4-C
Manufacturer:
ATGBICS
Excl. VAT: £3,148.00
Available to Backorder: contact for lead time
ATGBICS Arista compatible OSFP-800G-2PLR4 OSFP 800GBase-2xPLR4 form factor network transceiver supports a distance of up to 10km over single-mode fibre (SMF) using a wavelength of 1271/1291/1311/1331nm via an 2xMPO-12/APC connector. This product operates within a commercial temperature range. Digital optical monitoring (DOM) support is also present enabling real-time monitoring of the parameters of the fibre optic transceiver. Our product meets the specification of Arista OSFP-800G-2PLR4 and we proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
More Information
Part#
OSFP-800G-2PLR4-C
Specification
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Ethernet LAN | Yes |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | MPO-12 |
| Maximum transfer distance | 10000 m |
| Wavelength | 1331 nm |
| Maximum data transfer rate | 800000 Mbit/s |
| Interface type | OSFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Ethernet interface type | 800 Gigabit Ethernet |
| SFP transceiver standard | LR8, PLR4 |
| Fiber ethernet cabling technology | 800GBASE |
| Export Control Classification Number (ECCN) | 5A991 |
| Country of origin | China |
| Easy to install | Yes |
| Product colour | Silver |
| Housing material | Metal |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Brand compatibility | Arista Networks |
| Features | |
| Easy to install | Yes |
| Product colour | Silver |
| Housing material | Metal |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Brand compatibility | Arista Networks |
| Country of origin | China |
| Certification | CE, UKCA, EMC, FCC, REACH, RoHS, TÜV, FDA |
| Certificates | |
| Certification | CE, UKCA, EMC, FCC, REACH, RoHS, TÜV, FDA |
| Compliance certificates | TÜV mark, UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE |
| Sustainability | |
| Doesn't contain | Lead |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | MPO-12 |
| Maximum data transfer rate | 800000 Mbit/s |
| Interface type | OSFP |
| Ethernet interface type | 800 Gigabit Ethernet |
| Technical details | |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1331 nm |
| Ethernet LAN | Yes |
| Doesn't contain | Lead |
| Compliance certificates | TÜV mark, UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Package type | Box |
| Logistics data | |
| Country of origin | China |
Manufacturer
ATGBICS
