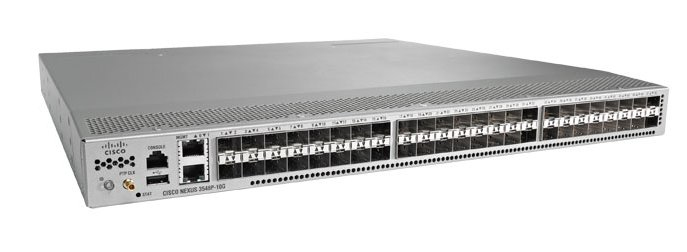

Nexus 3548-X 48 SFP+ ports, Enhanced No FT/PS REMANUFACTURED
Nexus 3548-X Switch, 48 SFP+, 960 Gbps, 1RU, Refurbished
Part#:
N3K-C3548P-10GX-RF
Manufacturer:
Cisco
Excl. VAT: £12,853.62
Available to Backorder: contact for lead time
Nexus 3548-X 48 SFP+ ports, Enhanced No FT/PS REMANUFACTURED
More Information
Part#
N3K-C3548P-10GX-RF
EAN
0889728023184
Specification
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Switch layer | L2/L3 |
| Network | |
| IPv4 multicast entries | 8000 |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4096 |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Data transmission | |
| Number of VLANs | 4096 |
| Jumbo frames | 9216 |
| Packet buffer memory | 18 MB |
| MAC address table | 64000 entries |
| Switching capacity | 960 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 720 Mpps |
| Optical fiber | |
| Fiber optic connector | SFP+ |
| Performance | |
| Packet buffer memory | 18 MB |
| Internal memory | 4000 MB |
| Flash memory | 4000 MB |
| Telnet | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | Yes |
| Telnet | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 48 |
| USB 2.0 ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Console port | RS-232 |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | AES, SNMP, SSH-2 |
| Access Control List (ACL) | Yes |
| Authentication type | AAA, RADIUS |
| DHCP features | DHCP relay |
| Multicast features | |
| Multicast support | Yes |
| IPv4 multicast entries | 8000 |
| Protocols | |
| Virtual Router Redundancy Protocol (VRRP) | Yes |
| Routing protocols | BGP, EIGRP, HSRP, OSPF, RIP-2, VRRP |
| Memory | |
| Packet buffer memory | 18 MB |
| Internal memory | 4000 MB |
| Flash memory | 4000 MB |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 4 fan(s) |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 213 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 112 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 383 BTU/h |
| Weight & dimensions | |
| Width | 439 mm |
| Depth | 467 mm |
| Height | 43.6 mm |
| Weight | 7.9 kg |
Manufacturer
Cisco
