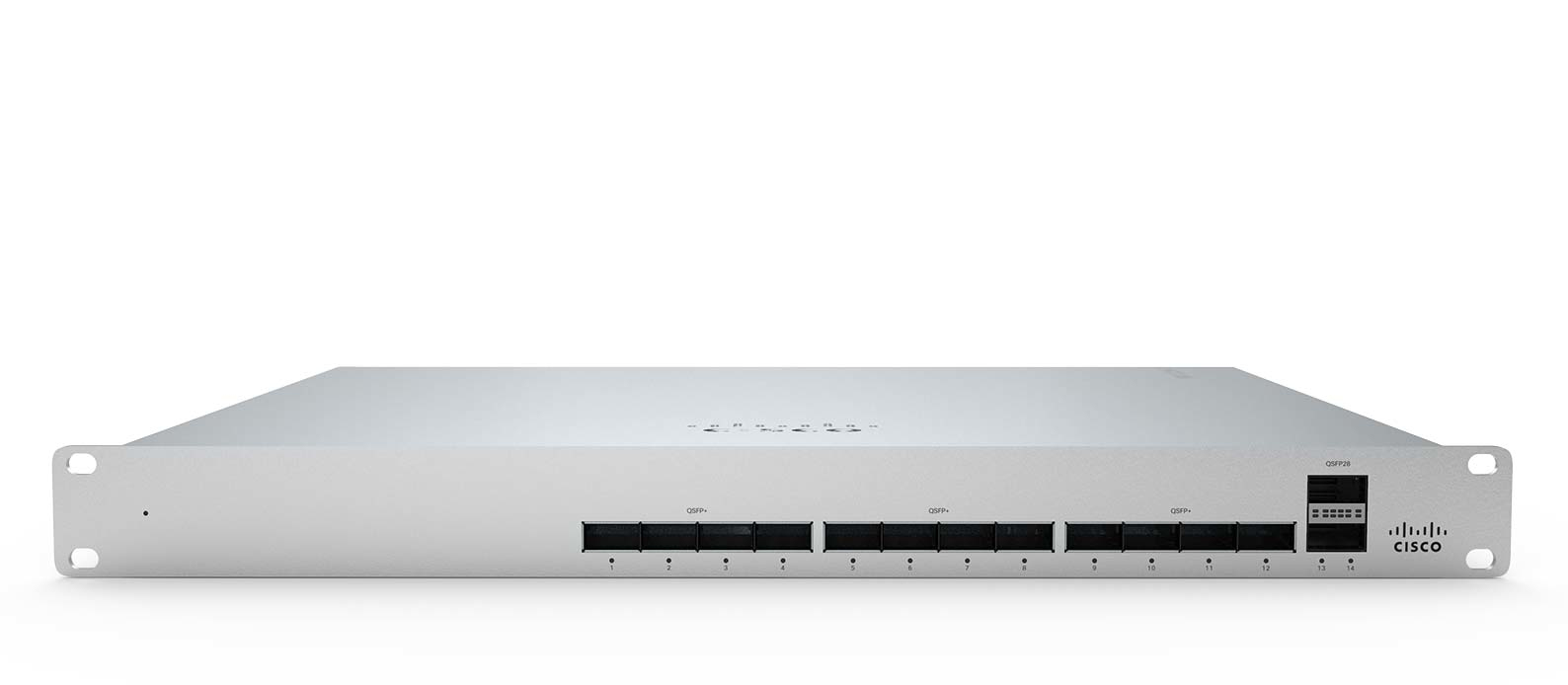

Meraki MS450-L3 Stack Cld-Mngd 12x40GE Aggregation Switch
MS450-12, 12 × 40G QSFP, 400 Gbps, 1.36 Tbps, 57 / 138 W
Part#:
MS450-12-HW
Manufacturer:
Cisco
Excl. VAT: £13,288.01
RRP: £22,414.16
Save: 41%
Available to Backorder: contact for lead time
HIGH-BANDWIDTH AGGREGATION SWITCHING The Cisco Meraki MS450 brings powerful high-bandwidth switching to the aggregation layer. The 40G fiber aggregation switch with 100G uplinks adopts the benefits of the cloud with simplified management, reduced complexity, and network-wide visibility. EXPANDING CLOUD MANAGEMENT TO THE CAMPUS Meraki aggregation switches are built from the ground up to be easy to manage without compromising the power and flexibility traditionally found in enterprise-class switches. To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management. Meraki’s centralized management gives administrators granular visibility into their network. The dashboard helps you keep track of every configuration change in your network with detailed event and change logs. INDUSTRY-LEADING CLOUD MANAGEMENT Cloud management has a number of benefits that make it easier to build campus networks
More Information
Part#
MS450-12-HW
EAN
0810979015833
Specification
Management features | |
---|---|
Multicast support | Yes |
Switch type | Managed |
Web-based management | Yes |
System event log | Yes |
Quality of Service (QoS) support | Yes |
Switch layer | L3 |
Network | |
IGMP snooping | Yes |
Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad |
VLAN support | Yes |
Broadcast storm control | Yes |
Virtual LAN features | |
VLAN support | Yes |
Performance | |
Stackable | Yes |
Mean time between failures (MTBF) | 436776 h |
Harmonized System (HS) code | 85176990 |
Technical details | |
Form factor | 1U |
Product colour | Grey |
Stackable | Yes |
Mean time between failures (MTBF) | 436776 h |
Rack mounting | Yes |
Ports & interfaces | |
QSFP+ module slots quantity | 12 |
Console port | RJ-45 |
QSFP28 ports quantity | 4 |
Data transmission | |
MAC address table | 64000 entries |
Switching capacity | 400 Gbit/s |
Forwarding rate | 654.76 Mpps |
Security | |
IGMP snooping | Yes |
DHCP features | DHCP client, DHCP server |
Multicast features | |
Multicast support | Yes |
Protocols | |
Management protocols | DHCP, SNMPD |
Certificates | |
Certification | CSA (US), IC (Canada), CE (Europe), C-Tick (Australia/New Zealand), RoHS |
Design | |
Form factor | 1U |
Product colour | Grey |
Stackable | Yes |
Certification | CSA (US), IC (Canada), CE (Europe), C-Tick (Australia/New Zealand), RoHS |
Rack mounting | Yes |
Power | |
Power consumption (max) | 138 W |
AC input voltage | 100 - 240 V |
AC input frequency | 47/63 Hz |
Power consumption (typical) | 57 W |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Operating temperature (T-T) | 0 - 45 °C |
Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
Width | 484.6 mm |
Depth | 478.8 mm |
Height | 43.7 mm |
Weight | 6.26 kg |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Manufacturer
Cisco
