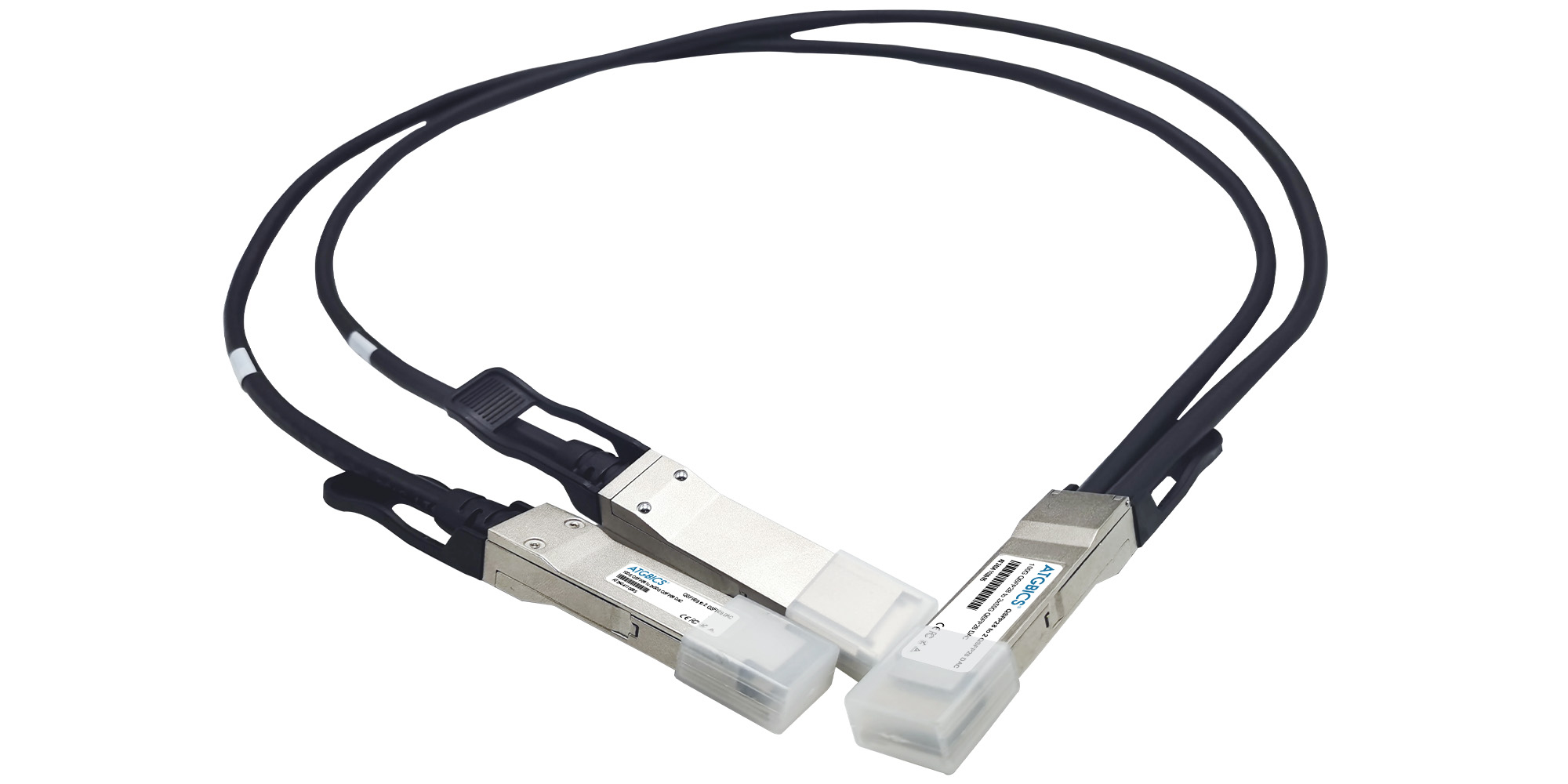

ATGBICS MCP7H00-G003 NVIDIA Mellanox compatible Direct Attach Copper Breakout Cable 100GBase-CU QSFP28 to 2x50GBase-CU QSFP28 (Passive Twinax 3m)
MCP7H00-G003 NVIDIA Mellanox compatible Direct Attach Copper Breakout Cable 100GBase-CU QSFP28 to 2x50GBase-CU QSFP28 (Passive Twinax 3m)
Part#:
MCP7H00-G003-C
Manufacturer:
ATGBICS
Excl. VAT: £204.00
Available to Backorder: contact for lead time
ATGBICS NVIDIA Mellanox compatible MCP7H00-G003 100GBase-CU QSFP28 to 2 QSFP28 Passive Direct Attach Cable operates over Passive Copper with a cable length of 3m. This product operates within a commercial temperature range. It is suitable for short reach connection between 100G QSFP28 and 50G QSFP28 enabled host adapters, switches, and servers in 100G interconnecting networking applications and provides a cost-efficient way to connect hardware within close proximity racks. This breakout cable connects to 1 x 100G QSFP28 port on one end and to 2 x 50G QSFP28 ports on the other end. Our product meets the specification of NVIDIA Mellanox MCP7H00-G003 and we proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
More Information
Part#
MCP7H00-G003-C
Specification
Features | |
---|---|
Jacket material | Optical fiber non-conductive riser (OFNR), Polyvinyl chloride (PVC) |
Connector 1 | QSFP28 |
Connector 2 | 2x QSFP28 |
Cable type | DAC |
Cable length | 3 m |
Data transfer rate | 100000 Gbit/s |
Ethernet interface type | 100 Gigabit Ethernet |
Brand compatibility | Mellanox Technologies |
Export Control Classification Number (ECCN) | 5A991 |
Product colour | Black |
Plug and Play | Yes |
Conductor material | Copper |
AWG wire size | 28 |
Cable shape | Round |
Fastening type | Push–pull |
Bending radius | 3.1 cm |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -40 - 85 °C |
Certification | CE, EMC, FCC, REACH, RoHS, TÜV |
Country of origin | United Kingdom |
Sustainability | |
Doesn't contain | Lead, Halogen |
Certificates | |
Certification | CE, EMC, FCC, REACH, RoHS, TÜV |
Compliance certificates | TÜV mark, UKCA, Electromagnetic Compatibility (EMC), REACH, Federal Communications Commission (FCC), RoHS, CE |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions | |
Bending radius | 3.1 cm |
Cable length | 3 m |
Packaging content | |
Quantity per pack | 1 pc(s) |
Technical details | |
Jacket material | Optical fiber non-conductive riser (OFNR), Polyvinyl chloride (PVC) |
Connector 1 | QSFP28 |
Connector 2 | 2x QSFP28 |
Cable type | DAC |
Cable length | 3 m |
Doesn't contain | Lead, Halogen |
Compliance certificates | TÜV mark, UKCA, Electromagnetic Compatibility (EMC), REACH, Federal Communications Commission (FCC), RoHS, CE |
Data transmission | |
Data transfer rate | 100000 Gbit/s |
Packaging data | |
Quantity per pack | 1 pc(s) |
Logistics data | |
Quantity per pack | 1 pc(s) |
Country of origin | United Kingdom |
Manufacturer
ATGBICS
PDF Url
