HPE JZ509A - Aruba ClearPass C2000 DL20 G9 Renew App
HPE Aruba ClearPass C2000 DL20 Gen9 HW-Based Renew Appliance
Part#:
JZ509AR
Manufacturer:
HPE
Excl. VAT: £9,469.00
Available to Backorder: contact for lead time

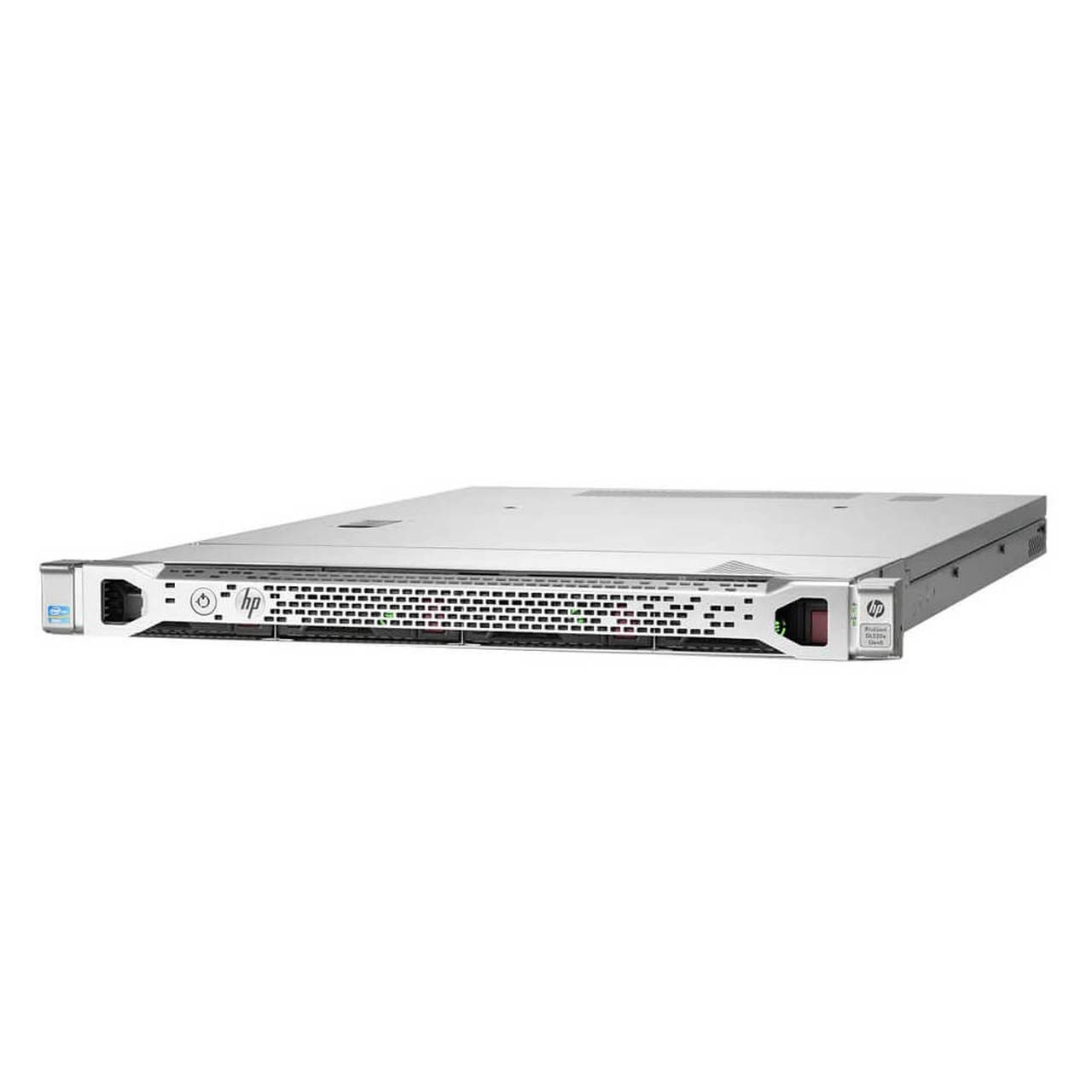

HPE Aruba ClearPass C2000 DL20 Gen9 HW-Based Renew Appliance
More Information
Part#
JZ509AR
Specification
| Processor | |
|---|---|
| Thermal Monitoring Technologies | Yes |
| Thermal Design Power (TDP) | 80 W |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Stepping | R0 |
| Scalability | 1S |
| Processor threads | 8 |
| Processor package size | 37.5 x 37.5 mm |
| Processor operating modes | 32-bit, 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Skylake |
| Processor code | SR2LD |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Memory voltage supported by processor | 1.35 V |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Maximum number of PCI Express lanes | 16 |
| Maximum internal memory supported by processor | 64 GB |
| Idle States | Yes |
| Graphics & IMC lithography | 14 nm |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Bus type | DMI3 |
| Processor cache type | Smart Cache |
| Processor cache | 8 MB |
| Conflict-Free processor | Yes |
| Processor series | Intel Xeon E3-1200 v5 |
| Processor frequency | 3.5 GHz |
| Processor boost frequency | 3.9 GHz |
| Number of processors installed | 1 |
| Processor model | E3-1240V5 |
| System bus rate | 8 GT/s |
| Processor socket | LGA 1151 (Socket H4) |
| Processor cores | 4 |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 v5 |
| Memory | |
| Internal memory | 16 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Storage | |
| Total storage capacity | 2 TB |
| Number of HDDs installed | 2 |
| HDD speed | 7200 RPM |
| HDD capacity | 1 TB |
| RAID support | Yes |
| RAID levels | 1 |
| Optical drive type | No |
| Maximum storage capacity | 2 TB |
| HDD interface | Serial ATA |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (1U) |
| Performance | |
| Remote administration | iLO |
| Processor special features | |
| Intel® Wireless Display (Intel® WiDi) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Smart Response Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Secure Key | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel Clear Video Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Built-in Visuals Technology | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Smart Connect Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel® Rapid Start Technology | No |
| Intel HD Graphics | No |
| Intel® High Definition Audio (Intel® HD Audio) | No |
| Intel® Active Management Technology (Intel® AMT) | No |
| Processor ARK ID | 88176 |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| CPU configuration (max) | 1 |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply input frequency | 50/60 Hz |
| Power supply | 900 W |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Rack mounting | Yes |
| Ethernet interface type | Gigabit Ethernet |
| CPU configuration (max) | 1 |
| Chassis type | Rack (1U) |
| Management features | |
| Remote administration | iLO |
| Weight & dimensions | |
| Width | 434.6 mm |
| Weight | 8.7 kg |
| Height | 43.2 mm |
| Depth | 382.3 mm |
| Other features | |
| CPU configuration (max) | 1 |
Manufacturer
HPE
