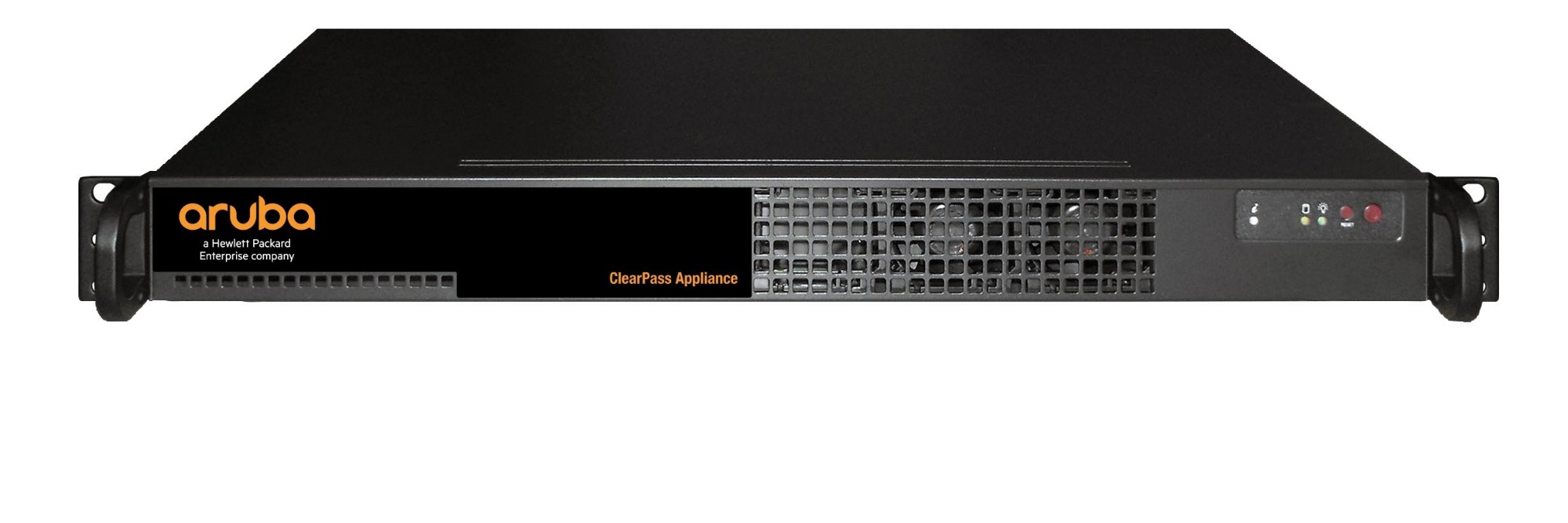

HPE JZ508A - Aruba ClearPass C1000 S-1200 Renew Appl
HPE Aruba ClearPass C1000 S-1200 R4 HW-Based Renew Appliance
Part#:
JZ508AR
Manufacturer:
HPE
Excl. VAT: £4,915.00
Available to Backorder: contact for lead time
HPE Aruba ClearPass C1000 S-1200 R4 HW-Based Renew Appliance
More Information
Part#
JZ508AR
Specification
| Processor | |
|---|---|
| Thermal Design Power (TDP) | 20 W |
| Stepping | B0 |
| Processor threads | 8 |
| Processor package size | 34 x 28 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 22 nm |
| Processor code | SR1CW |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Memory types supported by processor | DDR3-SDRAM, DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1600 MHz |
| Maximum number of PCI Express lanes | 16 |
| Maximum internal memory supported by processor | 64 GB |
| Execute Disable Bit | Yes |
| Embedded options available | Yes |
| Processor cache type | L2 |
| Processor cache | 4 MB |
| Conflict-Free processor | No |
| Processor frequency | 2.4 GHz |
| Number of processors installed | 1 |
| Processor model | C2758 |
| Processor socket | BGA 1283 |
| Processor cores | 8 |
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Memory | |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 1600 MHz |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR3-SDRAM |
| Storage | |
| Total storage capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| RAID support | Yes |
| Optical drive type | No |
| Maximum storage capacity | 1 TB |
| HDD interface | Serial ATA |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Expansion slots | |
| PCI Express slots version | 2.0 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (1U) |
| Product colour | Black |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel QuickAssist Technology | Yes |
| Processor ARK ID | 77988 |
| Power | |
| Redundant power supply (RPS) support | No |
| Power supply input frequency | 50/60 Hz |
| Power supply | 200 W |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating altitude | -16 - 3048 m |
| Technical details | |
| Rack mounting | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Chassis type | Rack (1U) |
| Weight & dimensions | |
| Width | 436.7 mm |
| Weight | 3.86 kg |
| Height | 43.2 mm |
| Depth | 287 mm |
Manufacturer
HPE
