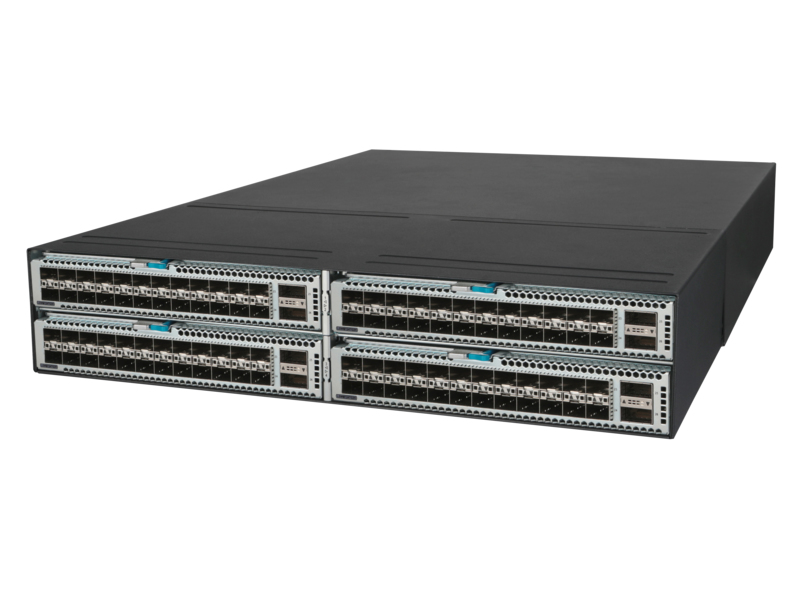

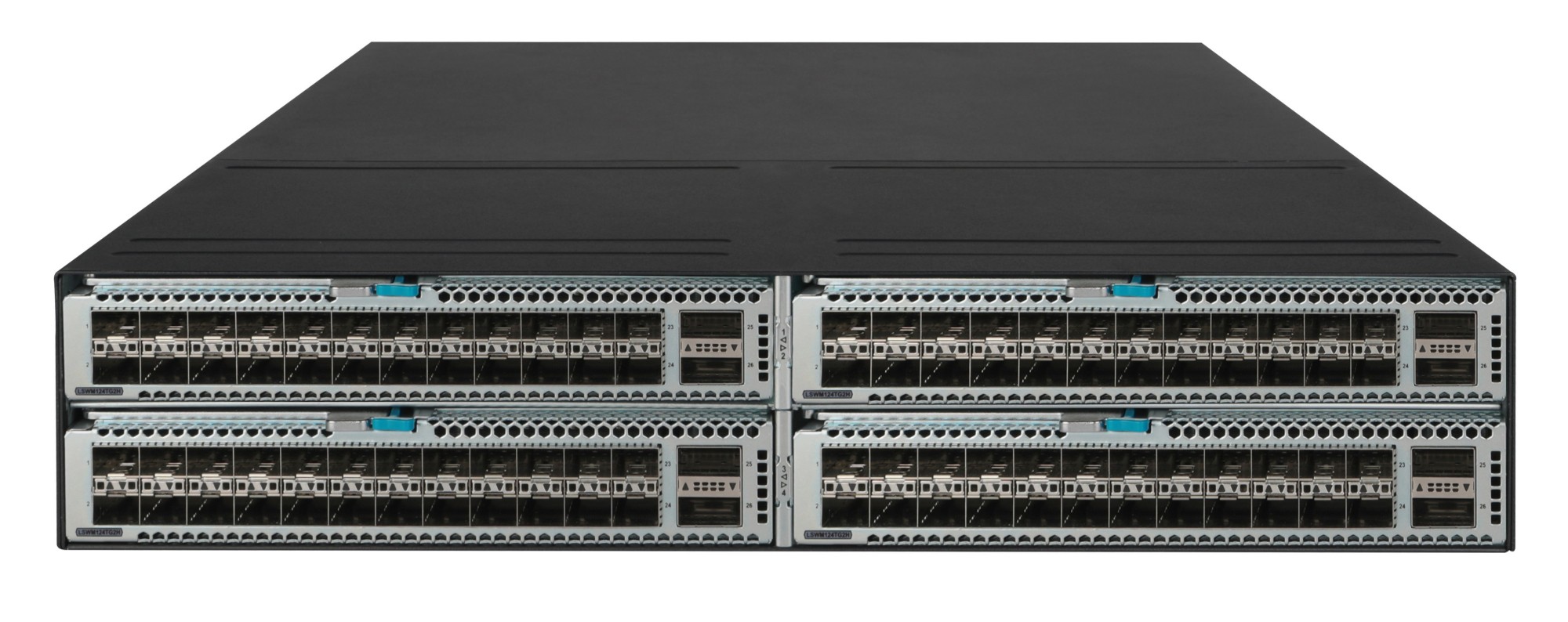

HPE JQ076A - 5945 4-slot Switch

Networking Comware Switch 4-slot 5945
Part#:
JQ076A
Manufacturer:
HPE
Excl. VAT: £18,098.05
RRP: £26,240.00
Save: 31%
Available to Backorder: contact for lead time
The HPE Networking Comware Switch Series 5945 are high-density, ultra-low-latency, and top-of-rack (ToR) switches ideally suited for deployment at the aggregation or server access layer of large enterprise data centers. The HPE 5945 Series is also powerful enough for deployment at the core layer of medium-sized enterprises. With the increase in virtualized applications and server-to-server traffic, customers require spine and ToR switches that can meet their throughput requirements. With the HPE 5945 Series, data centers can now support up to 100GbE per port, allowing high performance server connectivity and the capabilities to handle virtual environments. The HPE Networking Comware Switch Series 5945 provides choices that fit your budget and IT environment by cut-through with ultra-low-latency and wire speed, offering different port density and speeds of 100GbE/40GbE/25GbE/10GbE spine/ToR connectivity.

What is new supporting point:
New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about "made in China" products.
High-density 100GbE/40GbE/25GbE/10GbE spine/top-of-rack (ToR) connectivity and Cut-through switching with low-latency and wire speed performance.
New 32G/16G support for storage networking and ROCE V1/V2 for RDMA High-Performance computing.VXLAN, EVPN, and MPLS support for virtualized environments.
Greater flexibility with two/four slot options for varying use cases such as MACsec 256-bit encryption, high-performance DC leaf, storage networking and NVMe storage.
IPv4 and IPv6 support with full L2/L3 features and PTP 1588V2 for Boundary Clock, Transparent Clock, End to End/Peer to Peer Transparent Clock.
HPE Aruba Networking IMC Orchestrator and Analyzer for enhanced network operations with orchestration, automation, and analytical capabilities.
More Information
Part#
JQ076A
EAN
0190017209685
Specification
Management features
Switch typeManaged
Ports & interfaces
SFP module slots quantity4
Data transmission
Switching capacity6400 Gbit/s
Design
Product colourBlack
StackableYes
Rack mountingYes
Performance
Physical stacking (units)10
Internal memory4096 MB
Flash memory1024 MB
StackableYes
Harmonized System (HS) code85176990
Power
Power consumption (max)650 W
AC input voltage100 - 240 V
Power consumption (typical)650 W
DC input voltage48 - 60 V
Operational conditions
Heat dissipation2348 BTU/h
Weight & dimensions
Width440 mm
Depth660 mm
Height88.1 mm
Weight18.1 kg
Technical details
Physical stacking (units)10
Product colourBlack
StackableYes
Rack mountingYes
Memory
Internal memory4096 MB
Flash memory1024 MB
Logistics data
Harmonized System (HS) code85176990
Manufacturer
HPE
