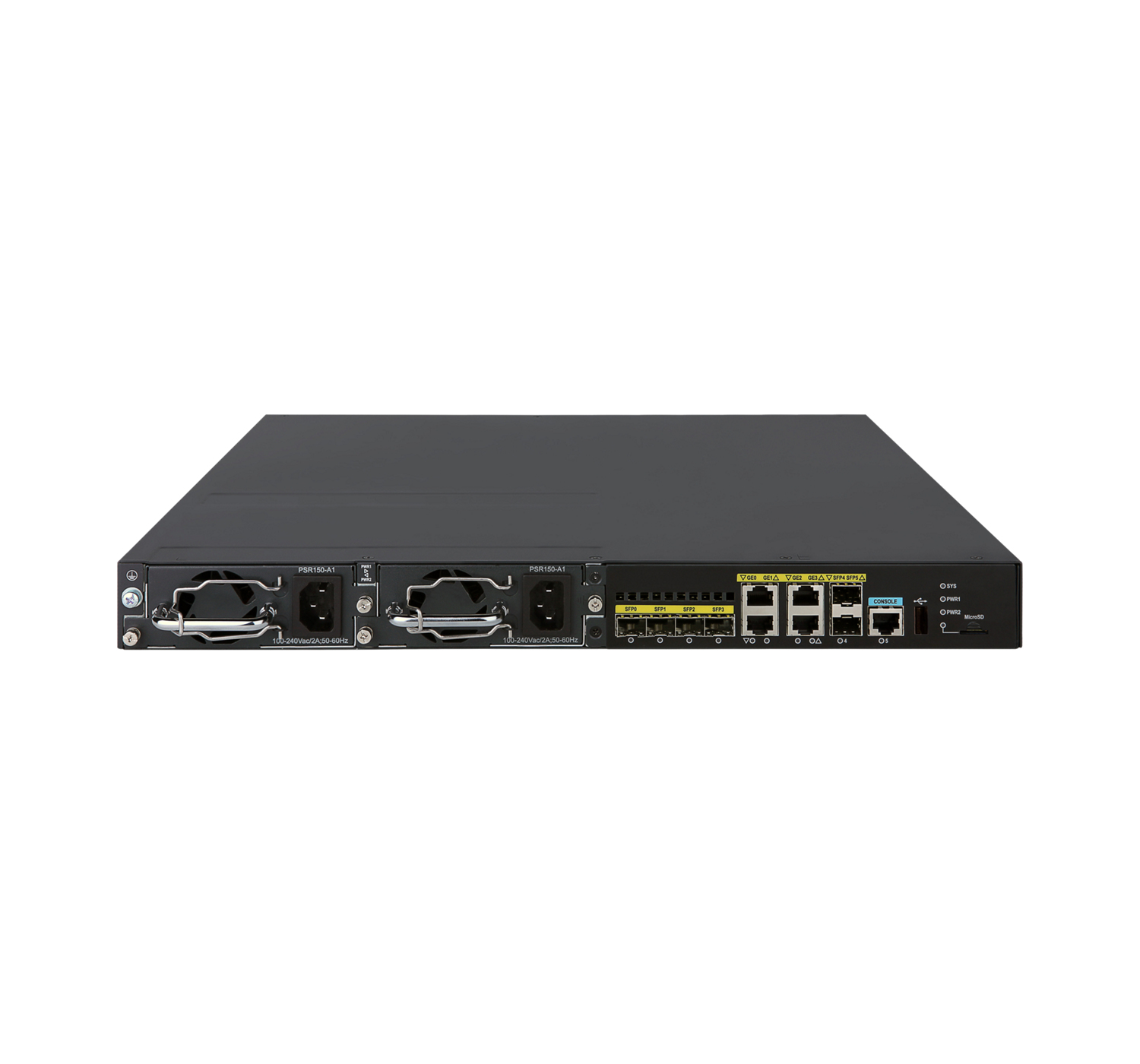

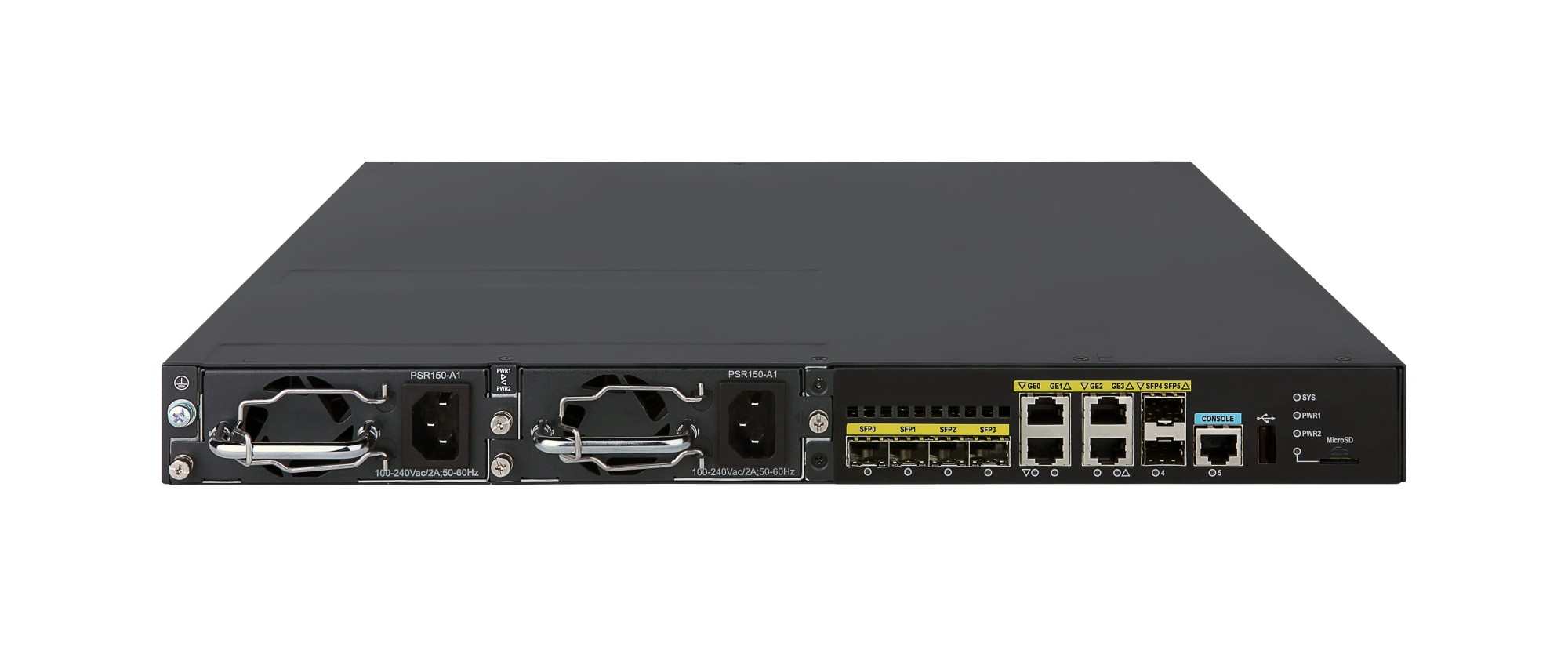

HPE JM044A - MSR3620-DP Router
Networking MSR3620-DP Router
Part#:
JM044A
Manufacturer:
HPE
Excl. VAT: £5,324.00
Available to Backorder: contact for lead time
The HPE Networking Comware Router Series MSR3000 feature a modular design that delivers unmatched application services for medium to large branch offices. These routers offer Gigabit switching, provide an enhanced PCI bus, ship with the Comware v7 OS, provide a full-featured resilient routing platform including IPv6 and MPLS, offer up to 13 Mpps forwarding capacity and 14.3 Gb/s of IPSec VPN encrypted throughput to ensure high performance with concurrent services. With the Open Application Platform module, the HPE Networking Comware Router Series MSR3000 offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches. The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly adapt to changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.
What is new supporting point:
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
High-density voice modules and channelized POS access to cover.
Additional features such as ADVPN and hierarchical QoS.
What is new supporting point:
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
High-density voice modules and channelized POS access to cover.
Additional features such as ADVPN and hierarchical QoS.
More Information
Part#
JM044A
EAN
0190017458915
Specification
Ethernet LAN features | |
---|---|
Ethernet LAN data rates | 1000 Mbit/s |
Network | |
MAC address table | 500000 entries |
Ethernet LAN data rates | 1000 Mbit/s |
Forwarding rate | 5 Mpps |
Ethernet interface type | Gigabit Ethernet |
Memory | |
Internal memory | 2048 MB |
Performance | |
Compatible memory cards | MicroSD (TransFlash) |
Internal memory type | DDR3 |
Internal memory | 2048 MB |
Heat dissipation | 218 BTU/h |
WAN connection | |
SFP WAN | Yes |
Ethernet WAN | Yes |
DSL WAN | No |
SIM card slot | No |
3G/4G USB modem compatibility | Yes |
Management features | |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
Ports & interfaces | |
USB ports quantity | 1 |
USB version | 2.0 |
Ethernet LAN (RJ-45) ports | 1 |
Smart Interface Card (SIC) slots quantity | 4 |
Combo SFP ports quantity | 4 |
WAN ports quantity | 4 |
Protocols | |
DHCP server | Yes |
DHCP client | Yes |
Technical details | |
Rack mounting | Yes |
Product colour | Black |
Heat dissipation | 218 BTU/h |
Harmonized System (HS) code | 85176990 |
Security | |
MAC address table | 500000 entries |
Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP |
Features | |
Compatible memory cards | MicroSD (TransFlash) |
Internal memory type | DDR3 |
Internal memory | 2048 MB |
Heat dissipation | 218 BTU/h |
Design | |
Rack mounting | Yes |
Product colour | Black |
Rack capacity | 1U |
Power | |
AC input voltage | 220 - 240 V |
Power consumption (max) | 100 W |
Weight & dimensions | |
Width | 440 mm |
Depth | 480 mm |
Height | 44.2 mm |
Weight | 9.7 kg |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Manufacturer
HPE
