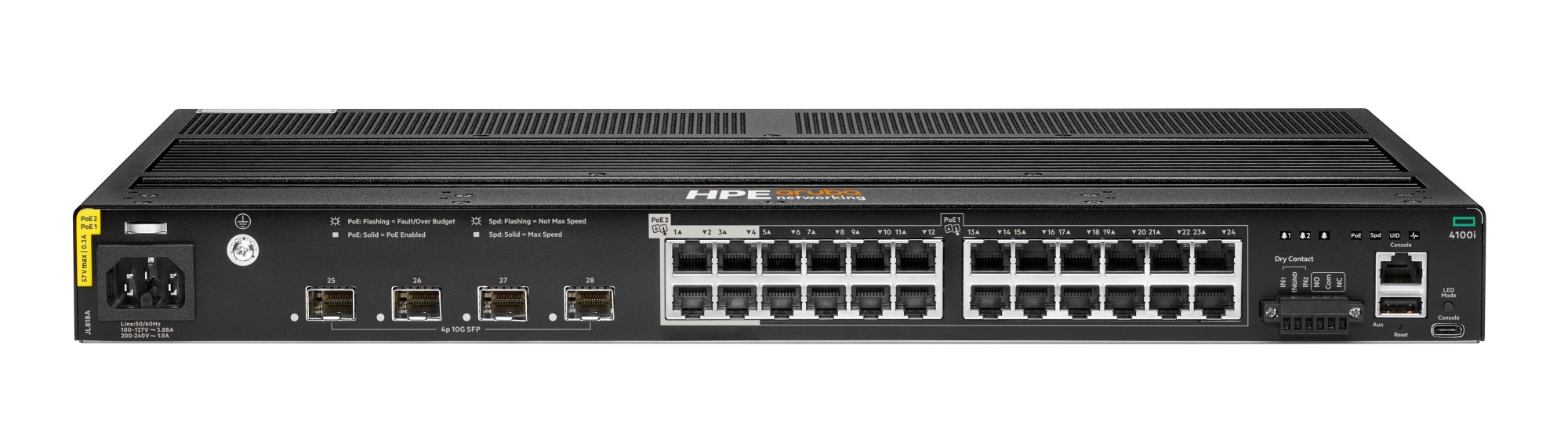

HPE JL818A - Aruba 4100i 24G CL4/6 POE 4SFP+ Sw
HPE Aruba Networking CX 4100i 24p 1GbE 20p Class4 POE and 4p Class6 PoE 4p SFP+ Switch
Part#:
JL818A
Manufacturer:
HPE
Excl. VAT: £7,461.30
RRP: £9,699.00
Save: 23%
Available to Backorder: contact for lead time
The HPE Aruba Networking CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and secure access with enhanced security, the CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces. Based on the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) used across the CX portfolio, this IP30 ruggedized series helps deliver a more consistent and efficient operator experience. This Layer 2 series has convenient built-in high speed uplinks, supports both 30W and 60W PoE, and is ready for deployment with fan less 12 port DIN mount and 24 port 1U rack mount models. With robust QoS, support for static routing, and IPv6, the CX 4100i series also simplifies ownership with no switch software licensing requirements.
What is new supporting point:
HPE Aruba Networking Virtual Switching Framework (VSF) now available to scale up local network resources and resiliency requirements.
HPE Aruba Networking Dynamic Segmentation enables enhanced security and simplified access for users and IoT.
Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments.
Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.
Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.
Layer 2 feature set with static routing and no switch software licensing required.
What is new supporting point:
HPE Aruba Networking Virtual Switching Framework (VSF) now available to scale up local network resources and resiliency requirements.
HPE Aruba Networking Dynamic Segmentation enables enhanced security and simplified access for users and IoT.
Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments.
Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.
Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.
Layer 2 feature set with static routing and no switch software licensing required.
More Information
Part#
JL818A
EAN
0190017537733
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45/USB Type-C |
| I/O ports | 4 x 100M/1G Base-T Class 6 PoE ports, supporting up to 60W per port 20 x 100M/1G Base-T Class 4 PoE ports, supporting up to 30W per port 4 x 1G/10G SFP ports 1 x USB-C console port 1 x RJ45 console 1 x USB Type-A host port 1 x Alarm socket |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 95 Mpps |
| Latency (1 Gbps) | 1.585 µs |
| Latency (10 Gbps) | 1.243 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSH-2 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | No |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 32000 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power supply included | No |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption note | Idle: 23W 100% Traffic Rate: 34W 100% Traffic Rate (w/ heater): 62W Note: Heater will only turn on at extreme low temperature condition. |
| Power source | AC |
| Power supply note | Fixed internal power supply (300W) 240W of PoE Power (no de-rating) |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Latency | 1 Gbps: 1.585 μSec , 10 Gbps: 1.243 μSec Average Latency (LIFO-64-bytes packets) |
| Performance management | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software. |
| Memory and processor | 4 GB DDR3 32 GB eMMC Dual Core ARM Cortex A9 @ 1016 Mhz |
| Weight (imperial) | 6.47 kg (14.3 lbs) |
| I/O ports | 4 x 100M/1G Base-T Class 6 PoE ports, supporting up to 60W per port 20 x 100M/1G Base-T Class 4 PoE ports, supporting up to 30W per port 4 x 1G/10G SFP ports 1 x USB-C console port 1 x RJ45 console 1 x USB Type-A host port 1 x Alarm socket |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 4200 m |
| Non-operating altitude | 0 - 4600 m |
| Heat dissipation | 117 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 444.5 mm |
| Depth | 304.4 mm |
| Height | 44 mm |
| Weight | 6.47 kg |
| Weight (imperial) | 6.47 kg (14.3 lbs) |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | No |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 32000 MB |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
