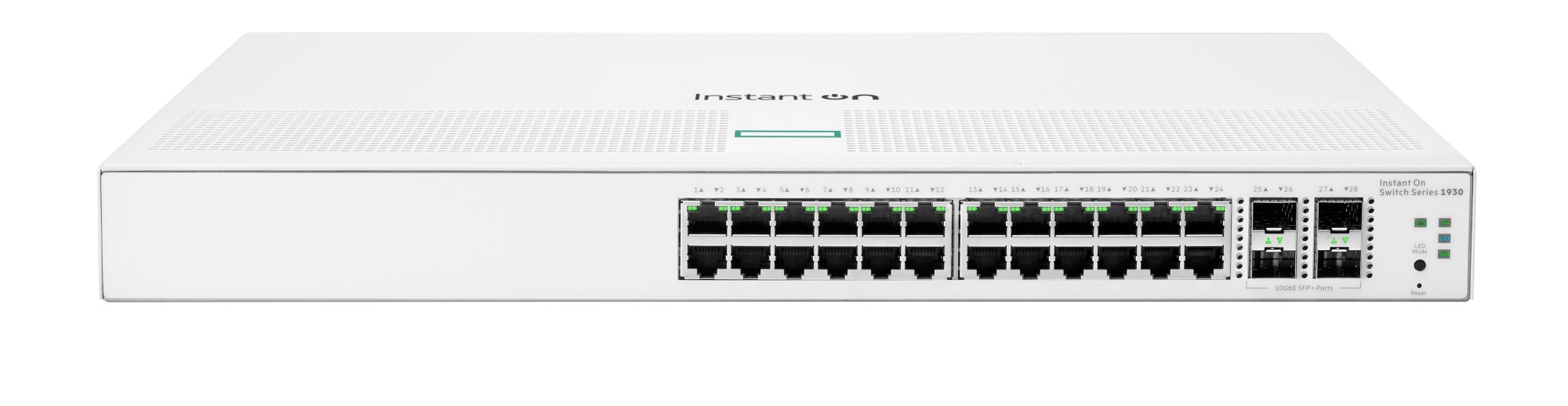

HPE JL682A - Aruba IOn 1930 24G 4SFP+ Switch
Aruba Instant On 1930 24G 4SFP/SFP+ Switch
Part#:
JL682A
Manufacturer:
HPE
Excl. VAT: £205.39
RRP: £286.00
Save: 28%
Available to Backorder: contact for lead time
DifferentiatorAdvanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports.
More Information
Part#
JL682A
EAN
0190017355498
Specification
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Copper ethernet cabling technology | 1000BASE-T |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| IGMP snooping | Yes |
| Active link detection | Yes |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 1000BASE-T |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 32 |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4093 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| 10G support | No |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4093 |
| Data transmission | |
| Number of VLANs | 4093 |
| Throughput | 95.23 Mpps |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Performance | |
| Stackable | Yes |
| Processor frequency | 800 MHz |
| Memory type | SDRAM / Flash |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Technical details | |
| Form factor | 1U |
| Product colour | White |
| Stackable | Yes |
| Processor frequency | 800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Memory type | SDRAM / Flash |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Design | |
| Form factor | 1U |
| Product colour | White |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 22.6 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.2 A |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Weight & dimensions | |
| Width | 442.5 mm |
| Depth | 221.5 mm |
| Height | 43.9 mm |
| Weight | 2.41 kg |
| Other features | |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
Manufacturer
HPE
