HPE JL661A - Aruba 6300M 48G CL4 PoE 4SFP56 Swch

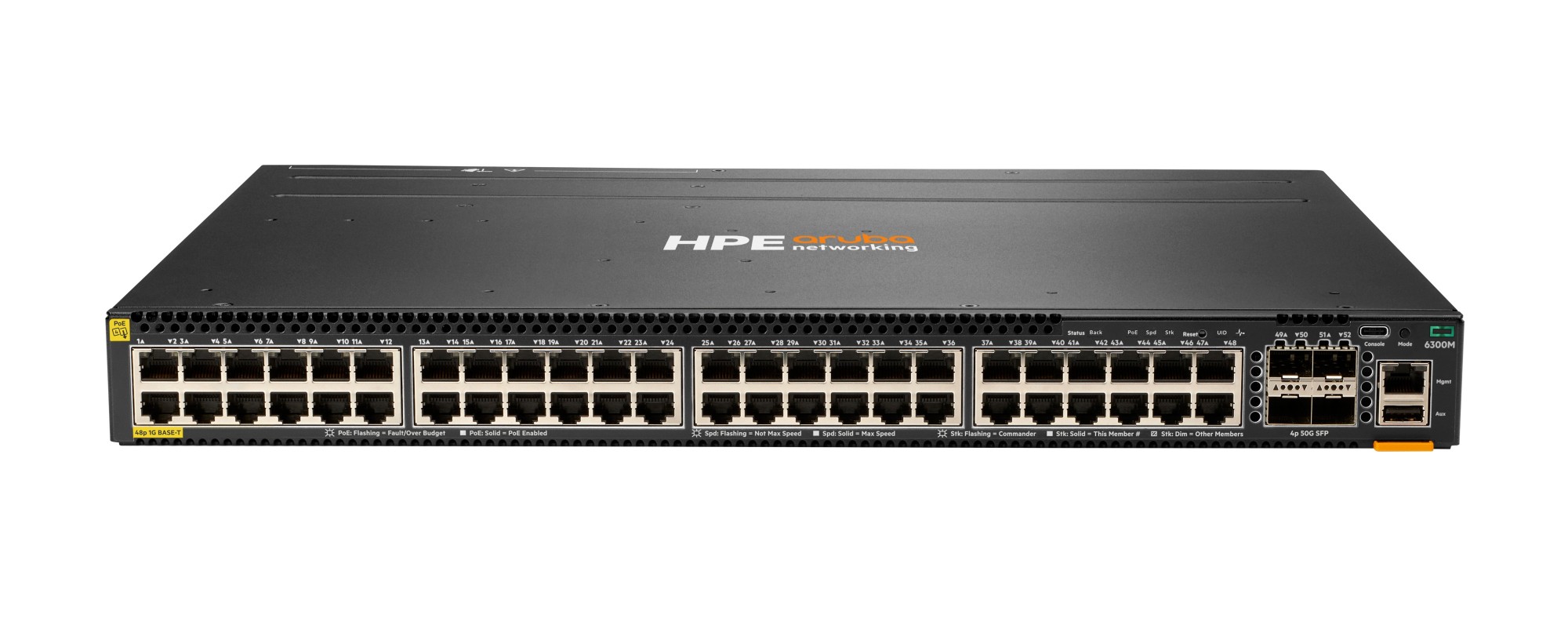

HPE Aruba Networking CX 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch
Part#:
JL661A
Manufacturer:
HPE
Excl. VAT: £3,819.39
RRP: £12,191.00
Save: 69%
Available to Backorder: contact for lead time
The Aruba CX 6300 Switch Series is a modern, flexible, and intelligent family of AOS-CX stackable switches ideal for enterprise access and aggregation. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy.
A powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow’s unpredictable demands. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for high speed APs and IoT devices using existing cabling.
Features
Automation and Analytics
- The Aruba CX 6300 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
- Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application and security related issues easily, through the use of Python agents and REST APIs.
- The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
Performance and Power
- The Aruba CX 6300 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
- Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front plane stacking. Four built-in QSFP28 ports support speeds of 1GbE, 10GbE, 25GbE, and 50GbE for a total of up to 200 Gbps of stacking throughput per switch.
- Deploy wireless access points and IoT devices with Aruba CX 6300 models that offer high density HPE Smart Rate multi-gigabit Ethernet with 60W PoE on every port for a total of 2880W of PoE.
Smarter Segmentation
- The Aruba CX 6300 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.
- Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
- Switch-to-switch tunnels enable scalable multi-tenancy support with VXLAN to VRF mapping, while allowing policy application via user roles.
A powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow’s unpredictable demands. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for high speed APs and IoT devices using existing cabling.
Features
Automation and Analytics
- The Aruba CX 6300 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
- Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application and security related issues easily, through the use of Python agents and REST APIs.
- The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
Performance and Power
- The Aruba CX 6300 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
- Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front plane stacking. Four built-in QSFP28 ports support speeds of 1GbE, 10GbE, 25GbE, and 50GbE for a total of up to 200 Gbps of stacking throughput per switch.
- Deploy wireless access points and IoT devices with Aruba CX 6300 models that offer high density HPE Smart Rate multi-gigabit Ethernet with 60W PoE on every port for a total of 2880W of PoE.
Smarter Segmentation
- The Aruba CX 6300 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.
- Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
- Switch-to-switch tunnels enable scalable multi-tenancy support with VXLAN to VRF mapping, while allowing policy application via user roles.
Part#
JL661A
EAN
0190017339443
Specification
Management features | |
---|---|
Multicast support | Yes |
Switch type | Managed |
Quality of Service (QoS) support | Yes |
Switch layer | L3 |
Network | |
IGMP snooping | Yes |
Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.3z |
VLAN support | Yes |
Spanning tree protocol | Yes |
Rate limiting | Yes |
Port mirroring | Yes |
Link aggregation | Yes |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
10G support | Yes |
Virtual LAN features | |
VLAN support | Yes |
Performance | |
Packet buffer memory | 8 MB |
Stackable | Yes |
Physical stacking (units) | 10 |
Processor frequency | 1800 MHz |
Memory type | DDR4-SDRAM |
Internal memory | 8192 MB |
Flash memory | 32 MB |
Built-in processor | Yes |
Processor model | ARM Cortex-A72 |
Harmonized System (HS) code | 85176990 |
Technical details | |
Physical stacking (units) | 10 |
Form factor | 1U |
Product colour | Grey |
Stackable | Yes |
Processor frequency | 1800 MHz |
Rack mounting | Yes |
Built-in processor | Yes |
Ports & interfaces | |
SFP module slots quantity | 4 |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Optical fiber | |
Transmission distance (max) | 10 km |
Data transmission | |
Throughput | 369 Mpps |
Latency (1 Gbps) | 2.28 µs |
Latency (10 Gbps) | 1.46 µs |
Packet buffer memory | 8 MB |
MAC address table | 29490 entries |
Switching capacity | 496 Gbit/s |
Jumbo frames support | Yes |
Security | |
SSH/SSL support | Yes |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
DHCP features | DHCP server |
Multicast features | |
Multicast support | Yes |
Protocols | |
Routing protocols | BGP, BGP4, IP, OSPF |
Memory | |
Packet buffer memory | 8 MB |
Memory type | DDR4-SDRAM |
Internal memory | 8192 MB |
Flash memory | 32 MB |
Design | |
Form factor | 1U |
Product colour | Grey |
Stackable | Yes |
Rack mounting | Yes |
Power | |
Power supply included | Yes |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE) | |
Total Power over Ethernet (PoE) budget | 1440 W |
Power over Ethernet (PoE) | Yes |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 45 °C |
Operating relative humidity (H-H) | 15 - 95% |
Weight & dimensions | |
Width | 442 mm |
Depth | 385 mm |
Height | 44 mm |
Weight | 5.72 kg |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Manufacturer
HPE
