HPE JL658A - Aruba 6300M 24SFP+ 4SFP56 Renew Swch

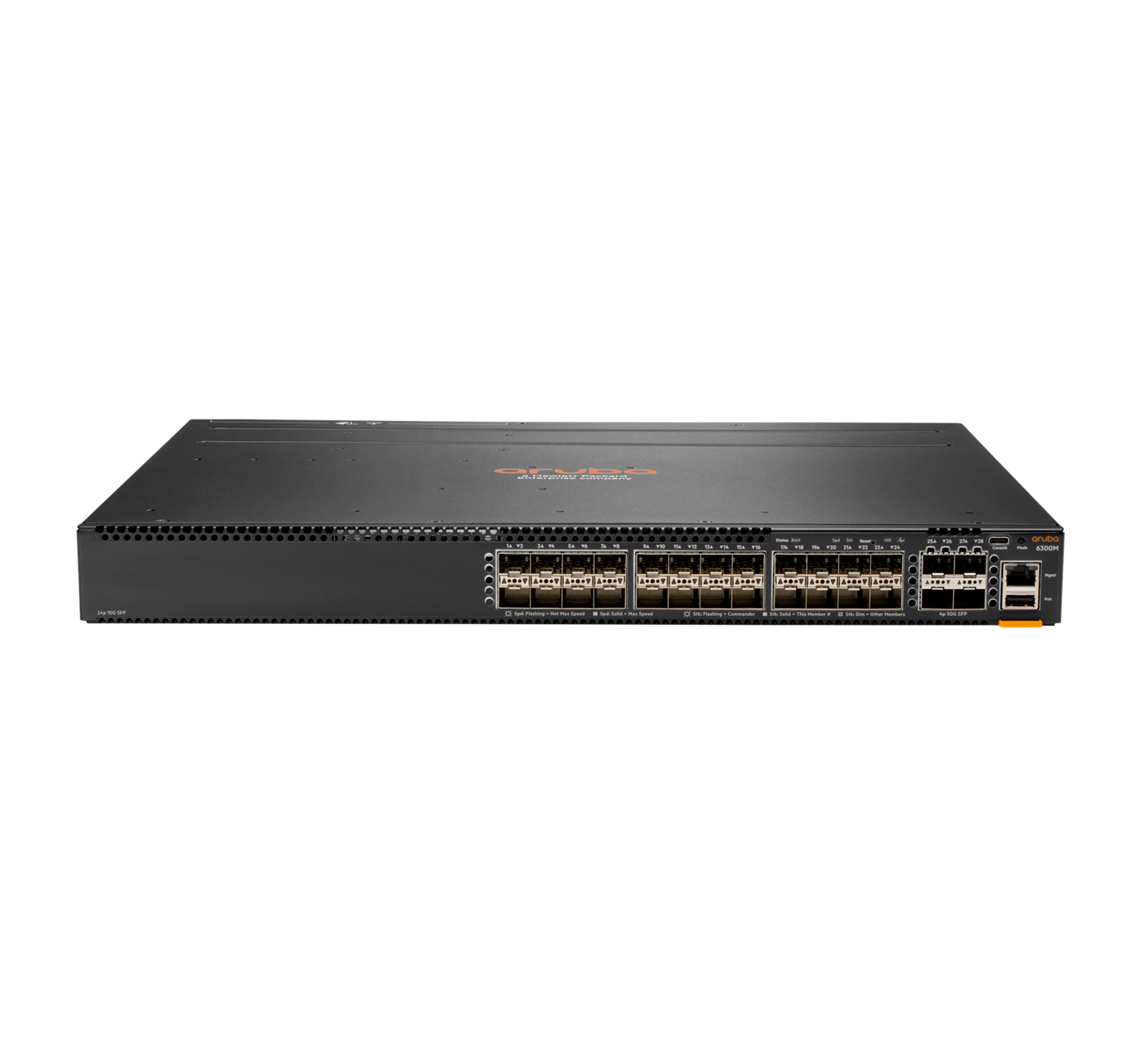

Aruba 6300M 24-port SFP+ and 4-port SFP56 Renew Switch
Part#:
JL658AR
Manufacturer:
HPE
Excl. VAT: £14,624.00
Available to Backorder: contact for lead time
Aruba 6300M 24-port SFP+ and 4-port SFP56 Renew Switch
More Information
Part#
JL658AR
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 24 |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP56 |
| USB Type-A ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN |
| IGMP snooping | Yes |
| Optical fiber | |
| Transmission distance (max) | 10 km |
| Fiber optic connector | SFP56 |
| Data transmission | |
| Jumbo frames | 9198 |
| Throughput | 654 Mpps |
| Latency (1 Gbps) | 1.99 µs |
| Latency (10 Gbps) | 1.49 µs |
| Packet buffer memory | 8 MB |
| MAC address table | 32768 entries |
| Switching capacity | 880 Gbit/s |
| Jumbo frames support | Yes |
| Number of VLANs | 4094 |
| Security | |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP relay, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv2c, SNMPv3, RMON |
| Routing protocols | BGP, BGP4, OSPFv2, OSPFv3, RIP-2, VRRP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Performance | |
| Physical stacking (units) | 10 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8192 MB |
| Flash memory | 32768 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Packet buffer memory | 8 MB |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 85 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 3048 m |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Private VLAN |
| Weight & dimensions | |
| Width | 442 mm |
| Depth | 385 mm |
| Height | 44 mm |
| Weight | 5.11 kg |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Technical details | |
| Physical stacking (units) | 10 |
| Form factor | 1U |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 8 MB |
| Memory type | DDR4-SDRAM |
| Internal memory | 8192 MB |
| Flash memory | 32768 MB |
Manufacturer
HPE
