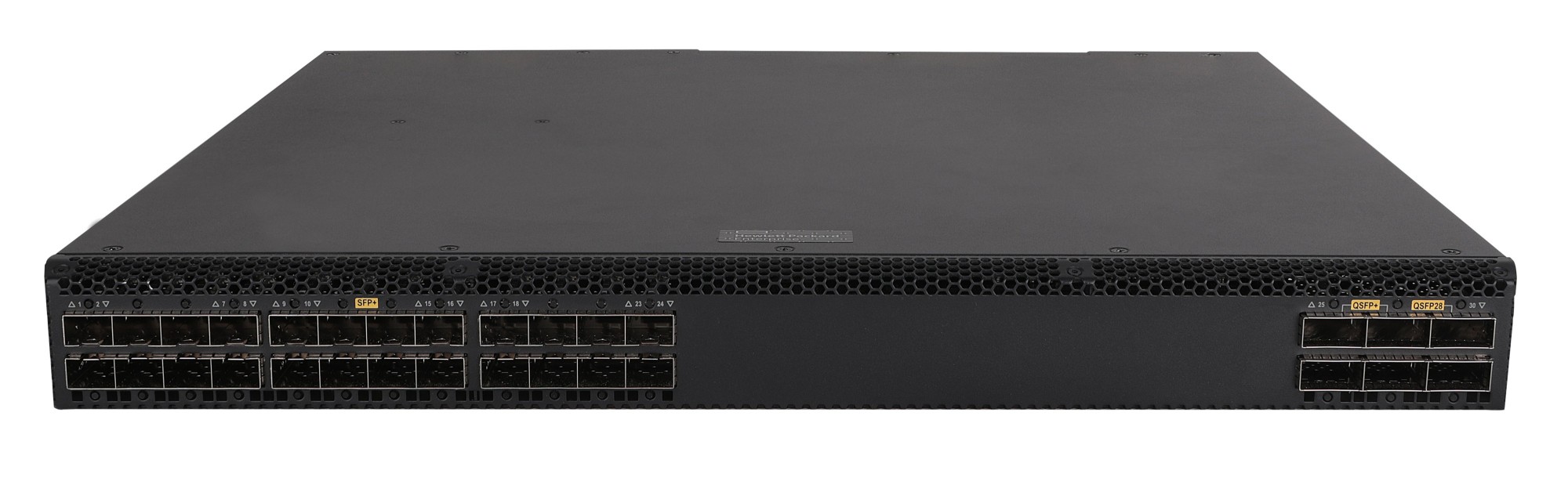

HPE JL587A - 5710 24SFP+ 6QS+/2QS28 Switch
Networking Comware Switch 24SFP+ 6QSFP+ or 2QSFP28 5710
Part#:
JL587A
Manufacturer:
HPE
Excl. VAT: £10,593.20
RRP: £15,428.00
Save: 31%
Available to Backorder: contact for lead time
The HPE Networking Comware Switch Series 5710 are purpose built top-of-rack data center switches that address the growth of Web, cloud and dense virtualized environments that require high performance 1/10GbE server connectivity, direct attached IP storage networking and GbE out-of-band server management. The 5710 Series switch is a family of fixed high-performance and low-latency 1/10GbE top-of-rack data center switches designed for small to mid-size data center rack server connectivity. The HPE Networking Comware Switch Series 5710 provides choices that fit your budget and IT environment by offering different port density and speeds (1/10G) SFP+ or 10BASE-T with 40 and 100GbE high speed uplinks options. Although affordability priced, the 5710 Series switch offers a comprehensive set of data center features including full support for Layer 2, Layer 3, IPv4 and IPv6 networking protocols at no additional cost for these advanced features.
What is new supporting point:
New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about "made in China" products
Delivers up to 1,440 Gbps switching capacity for the most demanding applications.
Low latency, under 1.5 µs 10GbE latency, provides improved throughput and fewer lost packets.
Provides choices that fit your budget and IT environment by offering different port density and speeds (1/10G) SFP+ or 10BASE-T with 40 and 100GbE high speed uplinks options.
Affordably priced, with full support for Layer 2, Layer 3, IPv4 and IPv6 networking protocols at no additional cost for these advanced features.
What is new supporting point:
New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about "made in China" products
Delivers up to 1,440 Gbps switching capacity for the most demanding applications.
Low latency, under 1.5 µs 10GbE latency, provides improved throughput and fewer lost packets.
Provides choices that fit your budget and IT environment by offering different port density and speeds (1/10G) SFP+ or 10BASE-T with 40 and 100GbE high speed uplinks options.
Affordably priced, with full support for Layer 2, Layer 3, IPv4 and IPv6 networking protocols at no additional cost for these advanced features.
More Information
Part#
JL587A
EAN
0190017284682
Specification
Management features | |
---|---|
Switch type | Managed |
Quality of Service (QoS) support | Yes |
Switch layer | L3 |
Ports & interfaces | |
SFP+ module slots quantity | 24 |
Basic switching RJ-45 Ethernet ports quantity | 0 |
Basic switching RJ-45 Ethernet ports type | No |
Network | |
Networking standards | IEEE 802.1D, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ah |
Spanning tree protocol | Yes |
Link aggregation | Yes |
Flow control support | Yes |
10G support | Yes |
IPv6 FIB entries | 8000 |
IPv4 FIB entries | 16000 |
Data transmission | |
Throughput | 714 Mpps |
Latency (10 Gbps) | 1.5 µs |
Packet buffer memory | 12 MB |
MAC address table | 208000 entries |
Switching capacity | 960 Gbit/s |
Jumbo frames support | Yes |
Security | |
Access Control List (ACL) | Yes |
Authentication type | IEEE 802.1x, RADIUS |
DHCP features | DHCP client, DHCP server |
Protocols | |
Routing protocols | BGP, IP, MPLS, OSPF, RIP, VRRP |
IPv6 FIB entries | 8000 |
IPv4 FIB entries | 16000 |
Design | |
Form factor | 1U |
Product colour | Black |
Stackable | Yes |
Rack mounting | Yes |
Performance | |
Physical stacking (units) | 9 |
Virtual stacking (units) | 10 |
Memory type | SDRAM |
Internal memory | 4096 MB |
Flash memory | 1024 MB |
Packet buffer memory | 12 MB |
Stackable | Yes |
Harmonized System (HS) code | 85176990 |
Power | |
Power supply included | Yes |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Redundant power supply (RPS) support | Yes |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Operating temperature (T-T) | 0 - 45 °C |
Operating relative humidity (H-H) | 10 - 90% |
Heat dissipation | 457 BTU/h |
Weight & dimensions | |
Width | 440 mm |
Depth | 400 mm |
Height | 44 mm |
Weight | 8.55 kg |
IPv4 & IPv6 features | |
IPv6 FIB entries | 8000 |
IPv4 FIB entries | 16000 |
Technical details | |
Physical stacking (units) | 9 |
Virtual stacking (units) | 10 |
Form factor | 1U |
Product colour | Black |
Stackable | Yes |
Rack mounting | Yes |
Memory | |
Packet buffer memory | 12 MB |
Memory type | SDRAM |
Internal memory | 4096 MB |
Flash memory | 1024 MB |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Manufacturer
HPE
