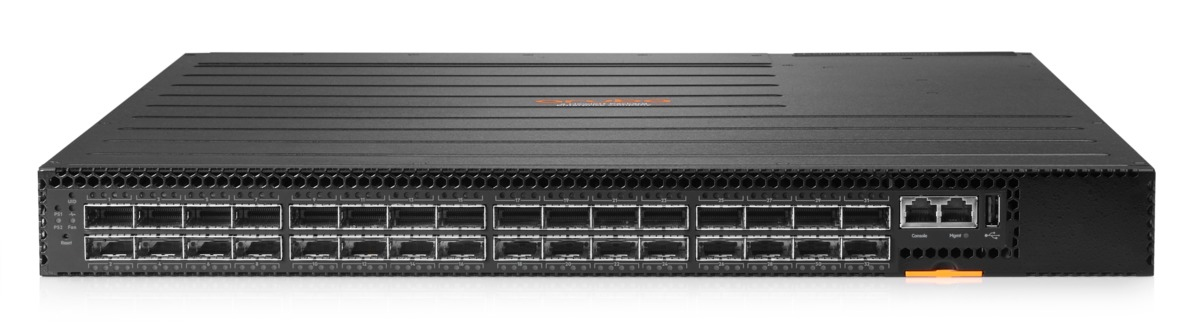

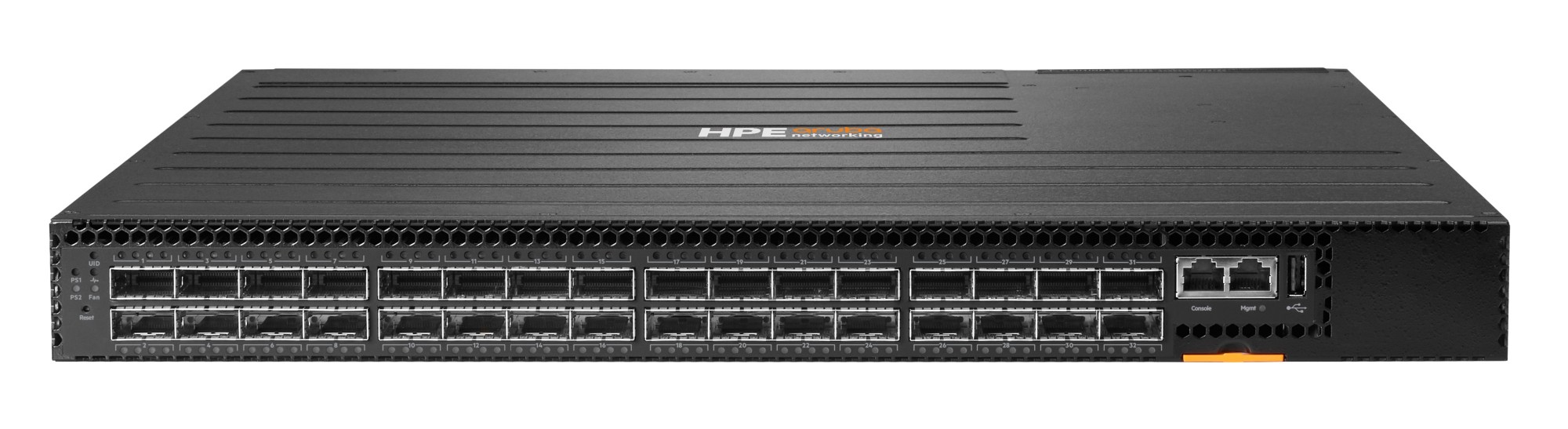

HPE JL579A - Aruba 8320 32 40G X472 5 2 Bdl
Aruba Networking CX 8320 32 40G QSFP+ with X472 5 Fans 2 Power Supply Switch Bundle
Part#:
JL579A
Manufacturer:
HPE
Excl. VAT: £15,498.38
RRP: £22,397.00
Save: 31%
Available to Backorder: contact for lead time
The HPE Aruba Networking CX 8320 Switch Series provides industry‑leading line rate 1/10GbE (SFP/SFP+ and 10GBASE‑T) and 40GbE connectivity in a compact 1U form factor. It provides up to 2.5 Tbps of switching capacity with redundant power and fans combined with HPE Aruba Networking Virtual Switching Extension (VSX) for a high availability solution ideal for enterprise campus and data center deployments. The CX 8320 also serves as a top of rack (ToR) switch for data centers needing 10GbE connectivity to servers and 40GbE to the spine. The CX 8320 is based on HPE Aruba Networking CX Switch Operating System (AOS-CX), a modern, database‑driven operating system that automates and simplifies many critical and complex network tasks. A built‑in time series database enables customers and developers to utilize software scripts for historical troubleshooting, as well as analysis of past trends. This helps predict and avoid future problems due to scale, security, and performance bottlenecks.
What is new supporting point:
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF and IPv6.
High availability, virtualization and simplicity with HPE Aruba Networking Virtual Switching Extension (VSX).
Compact 1U switches with 10 GbE (SFP/SFP+ or 10 GBASE-T) and 40 GbE connectivity.
High-performance campus core and aggregation switch with 2.5 Tbps switching capacity.
HPE Aruba Networking CX Switch Operating System (AOS-CX) automates using REST APIs and Python scripts.
Monitor and troubleshoot with HPE Aruba Networking Network Analytics Engine (NAE).
What is new supporting point:
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF and IPv6.
High availability, virtualization and simplicity with HPE Aruba Networking Virtual Switching Extension (VSX).
Compact 1U switches with 10 GbE (SFP/SFP+ or 10 GBASE-T) and 40 GbE connectivity.
High-performance campus core and aggregation switch with 2.5 Tbps switching capacity.
HPE Aruba Networking CX Switch Operating System (AOS-CX) automates using REST APIs and Python scripts.
Monitor and troubleshoot with HPE Aruba Networking Network Analytics Engine (NAE).
More Information
Part#
JL579A
EAN
0190017251509
Specification
Management features | |
---|---|
Switch type | Managed |
Quality of Service (QoS) support | Yes |
Multicast support | Yes |
Switch layer | L3 |
Ports & interfaces | |
QSFP+ module slots quantity | 32 |
Basic switching RJ-45 Ethernet ports quantity | 0 |
Basic switching RJ-45 Ethernet ports type | No |
USB 2.0 ports quantity | 1 |
Console port | RJ-45 |
Copper ethernet cabling technology | 10BASE-T |
Network | |
Copper ethernet cabling technology | 10BASE-T |
Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z |
VLAN support | Yes |
Port mirroring | Yes |
IP routing | Yes |
10G support | Yes |
MLD entries | 4094 |
IPv6 multicast entries | 4094 |
IPv4 multicast entries | 4094 |
Data transmission | |
Packet buffer memory | 16 MB |
MAC address table | 98304 entries |
Switching capacity | 2500 Gbit/s |
Jumbo frames support | Yes |
Security | |
Access Control List (ACL) | Yes |
Authentication type | RADIUS |
DHCP features | DHCP server |
Multicast features | |
Multicast support | Yes |
MLD entries | 4094 |
IPv6 multicast entries | 4094 |
IPv4 multicast entries | 4094 |
Protocols | |
Routing protocols | BGP, OSPF |
Design | |
Form factor | 1U |
Product colour | Black |
Stackable | Yes |
Rack mounting | Yes |
Airflow direction | Front-to-back airflow |
Number of fans | 5 fan(s) |
Performance | |
Processor frequency | 2000 MHz |
Noise level | 79 dB |
Mean time between failures (MTBF) | 296526 h |
Internal memory | 16000 MB |
Flash memory | 8000 MB |
Built-in processor | Yes |
Packet buffer memory | 16 MB |
Stackable | Yes |
Harmonized System (HS) code | 85176990 |
Power | |
Power consumption (max) | 310 W |
Power supply included | Yes |
AC input voltage | 200 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (typical) | 310 W |
Redundant power supply (RPS) support | Yes |
Number of power supply units | 2 |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 5 - 95% |
Virtual LAN features | |
VLAN support | Yes |
Weight & dimensions | |
Width | 43.5 mm |
Depth | 438 mm |
Height | 515 mm |
Weight | 9.7 kg |
Technical details | |
Form factor | 1U |
Product colour | Black |
Stackable | Yes |
Processor frequency | 2000 MHz |
Noise level | 79 dB |
Mean time between failures (MTBF) | 296526 h |
Rack mounting | Yes |
Built-in processor | Yes |
Memory | |
Packet buffer memory | 16 MB |
Internal memory | 16000 MB |
Flash memory | 8000 MB |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Manufacturer
HPE
