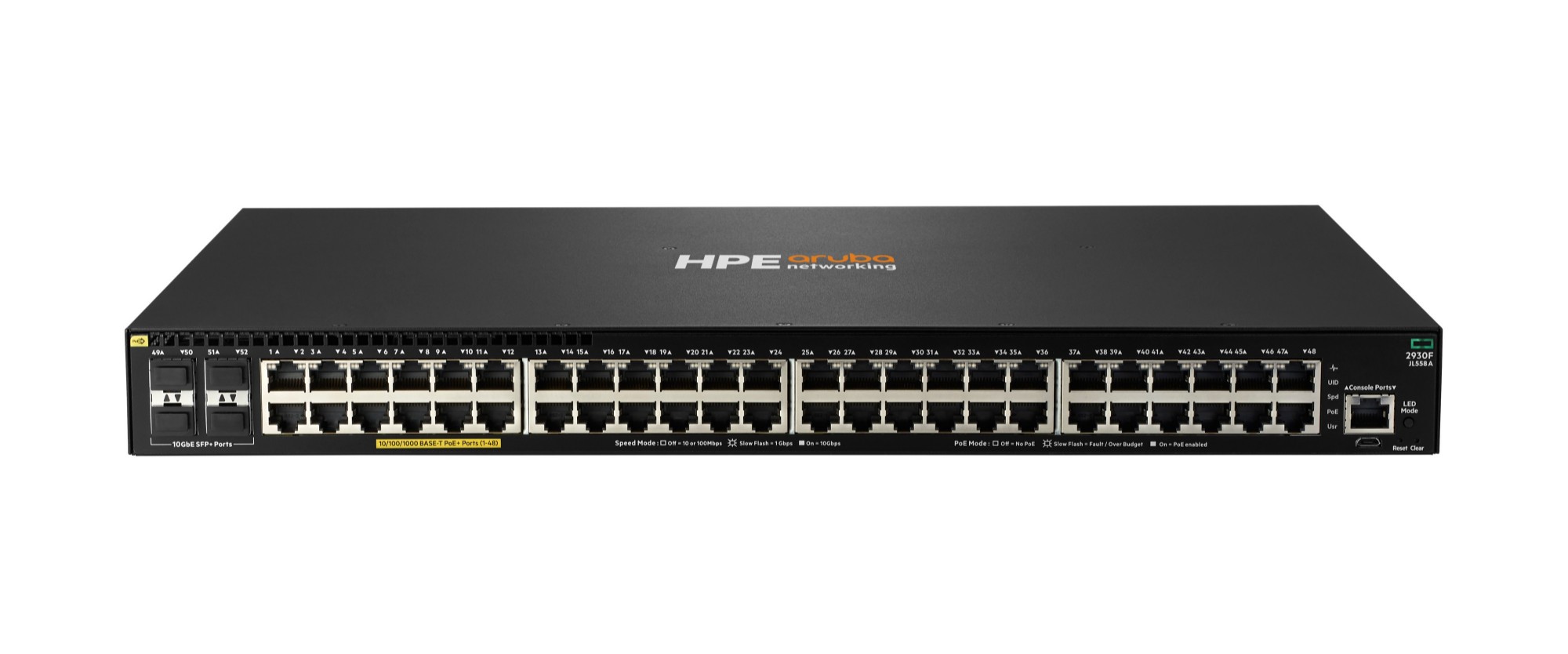

HPE JL558A - Aruba 2930F 48GPoE+4SFP+740W Swch
HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch
Part#:
JL558A
Manufacturer:
HPE
Excl. VAT: £1,837.50
RRP: £8,086.00
Save: 77%
In stock
The HPE Aruba Networking 2930F Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. HPE Aruba Networking Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F series delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
What is new supporting point:
Scale with 8-member stacking
The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks
Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support
What is new supporting point:
Scale with 8-member stacking
The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks
Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support
More Information
Part#
JL558A
EAN
0190017219721
Specification
| Management features | |
|---|---|
| Traffic classification | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Installed SFP+ modules quantity | 0 |
| I/O ports | 48x RJ-45 autosensing 10/100/1000 PoE+ ports 4x SFP+ 1/10GbE ports PHY-less |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
| Throughput | 112 Mpps |
| Switching capacity | 176 Gbit/s |
| Performance | |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 980 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption note | 980W (maximum) |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 740 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Latency | 1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs |
| Performance management | HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central network management HPE IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
| Memory and processor | Dual Core Arm Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC |
| Weight (imperial) | 4.79 kg (10.6 lbs) |
| I/O ports | 48x RJ-45 autosensing 10/100/1000 PoE+ ports 4x SFP+ 1/10GbE ports PHY-less |
| Dimensions (W x D x H) (imperial) | 43.9 x 442.5 x 324.4 mm (1.73 x 17.4 x 12.8") |
| Weight & dimensions | |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 324.2 mm |
| Weight | 4.79 kg |
| Weight (imperial) | 4.79 kg (10.6 lbs) |
| Dimensions (W x D x H) (imperial) | 43.9 x 442.5 x 324.4 mm (1.73 x 17.4 x 12.8") |
| Technical details | |
| Built-in processor | Yes |
| Memory | |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Manufacturer
HPE
