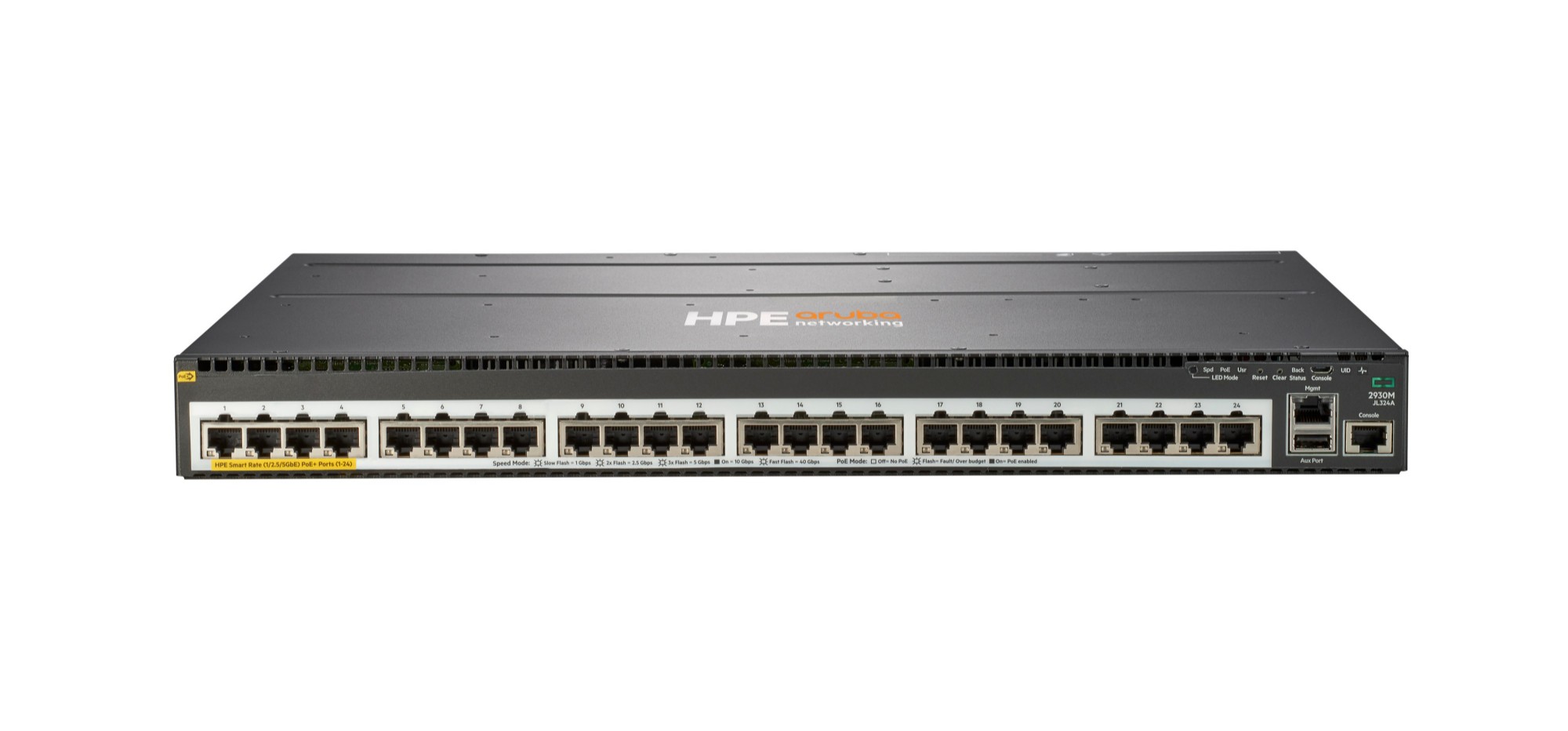

HPE JL324A - Aruba 2930M 24 Smrt Rte PoE+ 1s Swch
HPE Aruba Networking 2930M 24 HPE Smart Rate PoE+ 1-slot Switch
Part#:
JL324A
Manufacturer:
HPE
Excl. VAT: £3,440.87
RRP: £9,954.00
Save: 65%
Available to Backorder: contact for lead time
The Aruba 2930M Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch office networks. The 2930M delivers performance and value with support for static, RIP and Access OSPF routing, 10GbE and 40GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE, robust QoS, and Dynamic Segmentation for unified and secure access.
More Information
Part#
JL324A
EAN
0190017071299
Specification
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| IGMP snooping | Yes |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 4096 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Data transmission | |
| Throughput | 112 Mpps |
| Latency (1 Gbps) | 3.1 µs |
| Latency (10 Gbps) | 3.4 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 32768 entries |
| Switching capacity | 320 Gbit/s |
| Security | |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | SNMP |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 4096 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 513 W |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 860 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 150 BTU/h |
| Weight & dimensions | |
| Width | 442.5 mm |
| Depth | 324.3 mm |
| Height | 43.9 mm |
| Weight | 4.5 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Manufacturer
HPE
