HPE JL261A - Aruba 2930F 24G PoE+ 4SFP Swch

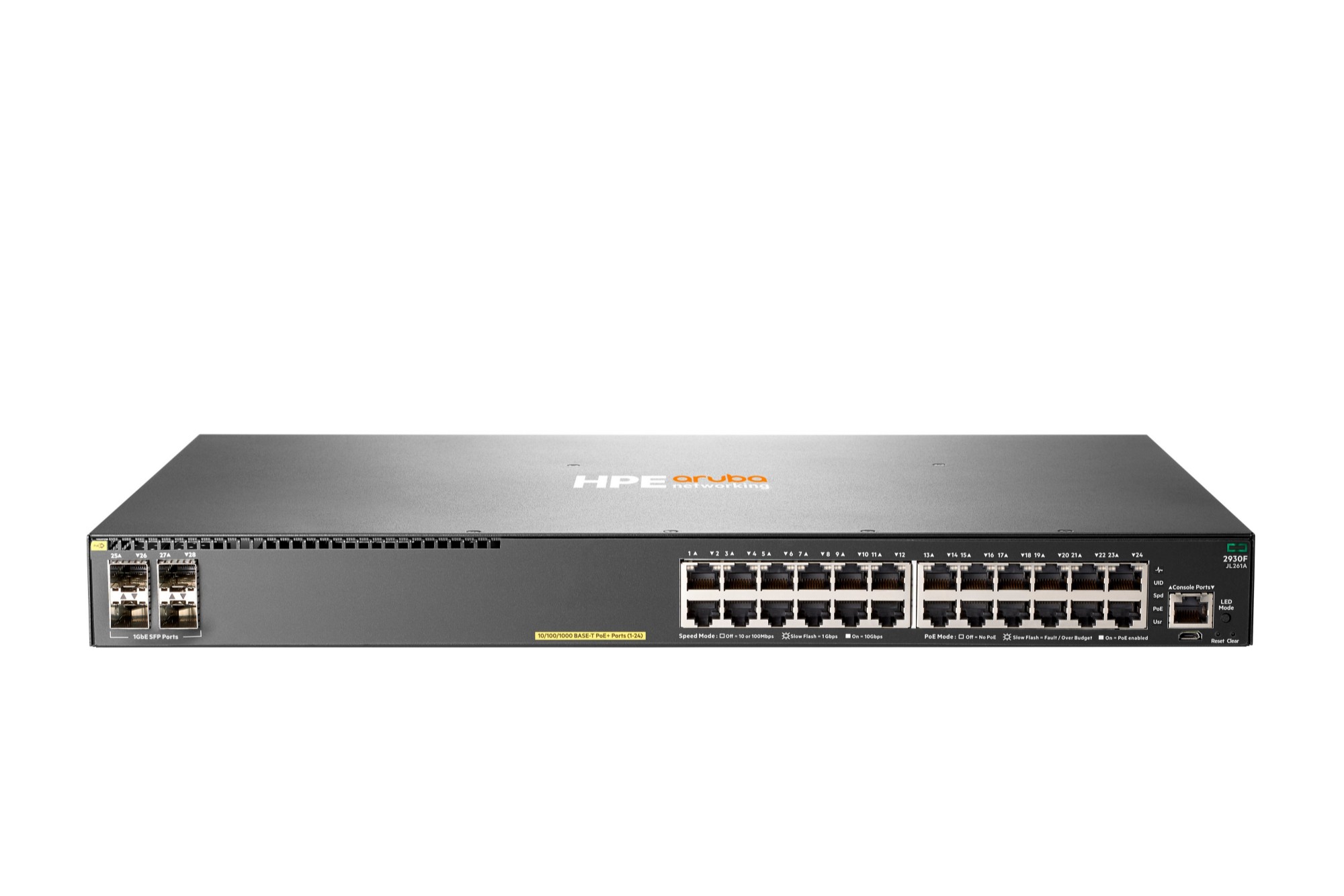

HPE Aruba Networking 2930F 24G PoE+ 4SFP Switch
Part#:
JL261A
Manufacturer:
HPE
Excl. VAT: £733.32
RRP: £3,166.00
Save: 77%
In stock
The HPE Aruba Networking 2930F Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. HPE Aruba Networking Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F series delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
What is new supporting point:
Scale with 8-member stacking
Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support
The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks
What is new supporting point:
Scale with 8-member stacking
Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support
The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks
More Information
Part#
JL261A
EAN
0190017005515
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Copper ethernet cabling technology | 10BASE-T |
| I/O ports | 24x RJ-45 autosensing 10/100/1000 PoE+ ports 4x SFP |
| Network | |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 10000 |
| Rate limiting | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Data transmission | |
| Throughput | 41.7 Mpps |
| Latency (1 Gbps) | 3.8 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 32768 entries |
| Switching capacity | 56 Gbit/s |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | IP |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 445 W |
| Power supply included | Yes |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption note | 445W (maximum) |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Latency | 1000 Mb Latency: < 3.8 µs |
| Performance management | HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central network management HPE IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
| Memory and processor | Dual Core Arm Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC |
| Weight (imperial) | 3.9 kg (8.6 lbs) |
| I/O ports | 24x RJ-45 autosensing 10/100/1000 PoE+ ports 4x SFP |
| Dimensions (W x D x H) (imperial) | 43.9 x 442.5 x 304.3 mm (1.73 x 17.4 x 12") |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 258 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 304.2 mm |
| Weight | 3.9 kg |
| Weight (imperial) | 3.9 kg (8.6 lbs) |
| Dimensions (W x D x H) (imperial) | 43.9 x 442.5 x 304.3 mm (1.73 x 17.4 x 12") |
| IPv4 & IPv6 features | |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
Manufacturer
HPE
