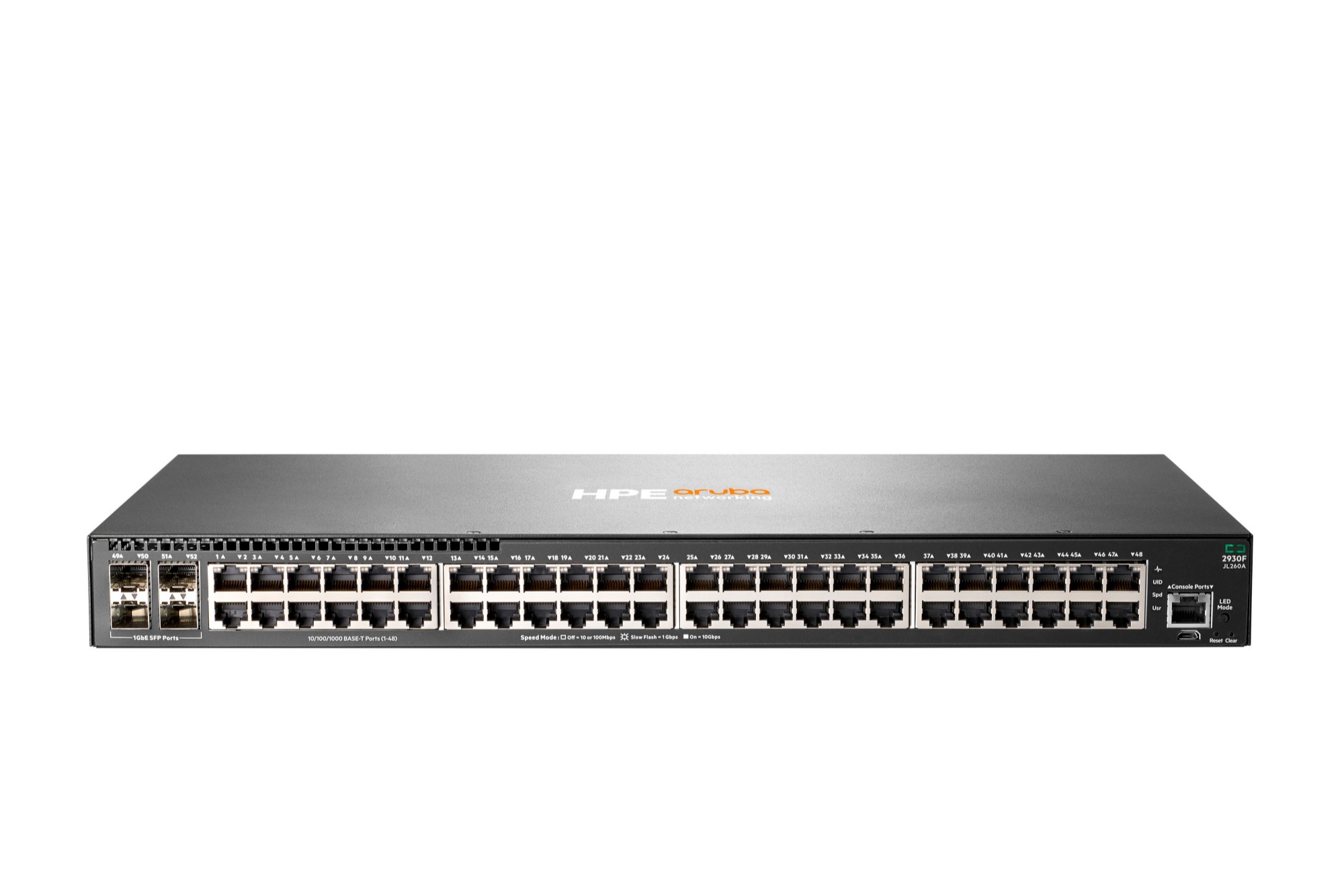

HPE JL260A - Aruba 2930F 48G 4SFP Swch

Details

The HPE Aruba Networking 2930F Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. HPE Aruba Networking Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10 GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.

What is new supporting point:
Scale with 8-member stacking.
Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support.
The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks.
Convenient built-in 1 GbE or 10 GbE uplinks and up to 740W PoE+.

Specification

More Information

Part#

JL260A

EAN

0190017006222

Specification

Management features
Traffic classification	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45
Copper ethernet cabling technology	10BASE-F, 100BASE-TX, 1000BASE-T
Network
Auto-sensing	Yes
Copper ethernet cabling technology	10BASE-F, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Routing entries	10000
Rate limiting	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
IGMP snooping	Yes
IPv6 FIB entries	5000
IPv4 FIB entries	10000
Data transmission
Throughput	77.4 Mpps
Latency (1 Gbps)	3.8 µs
Packet buffer memory	12.38 MB
MAC address table	32768 entries
Switching capacity	104 Gbit/s
Jumbo frames support	Yes
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Protocols
Routing protocols	IP
IPv6 FIB entries	5000
IPv4 FIB entries	10000
Design
Form factor	1U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Performance
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	1024 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Packet buffer memory	12.38 MB
Stackable	Yes
Power
Power consumption (max)	46.6 W
Power supply included	Yes
AC input voltage	200 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	32.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 95%
Heat dissipation	100 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	43.9 mm
Depth	442.5 mm
Height	246.3 mm
Weight	3.1 kg
IPv4 & IPv6 features
IPv6 FIB entries	5000
IPv4 FIB entries	10000
Technical details
Form factor	1U
Product colour	Grey
Stackable	Yes
Processor frequency	1016 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Packet buffer memory	12.38 MB
Memory type	DDR3-SDRAM
Internal memory	1024 MB

Manufacturer

HPE
