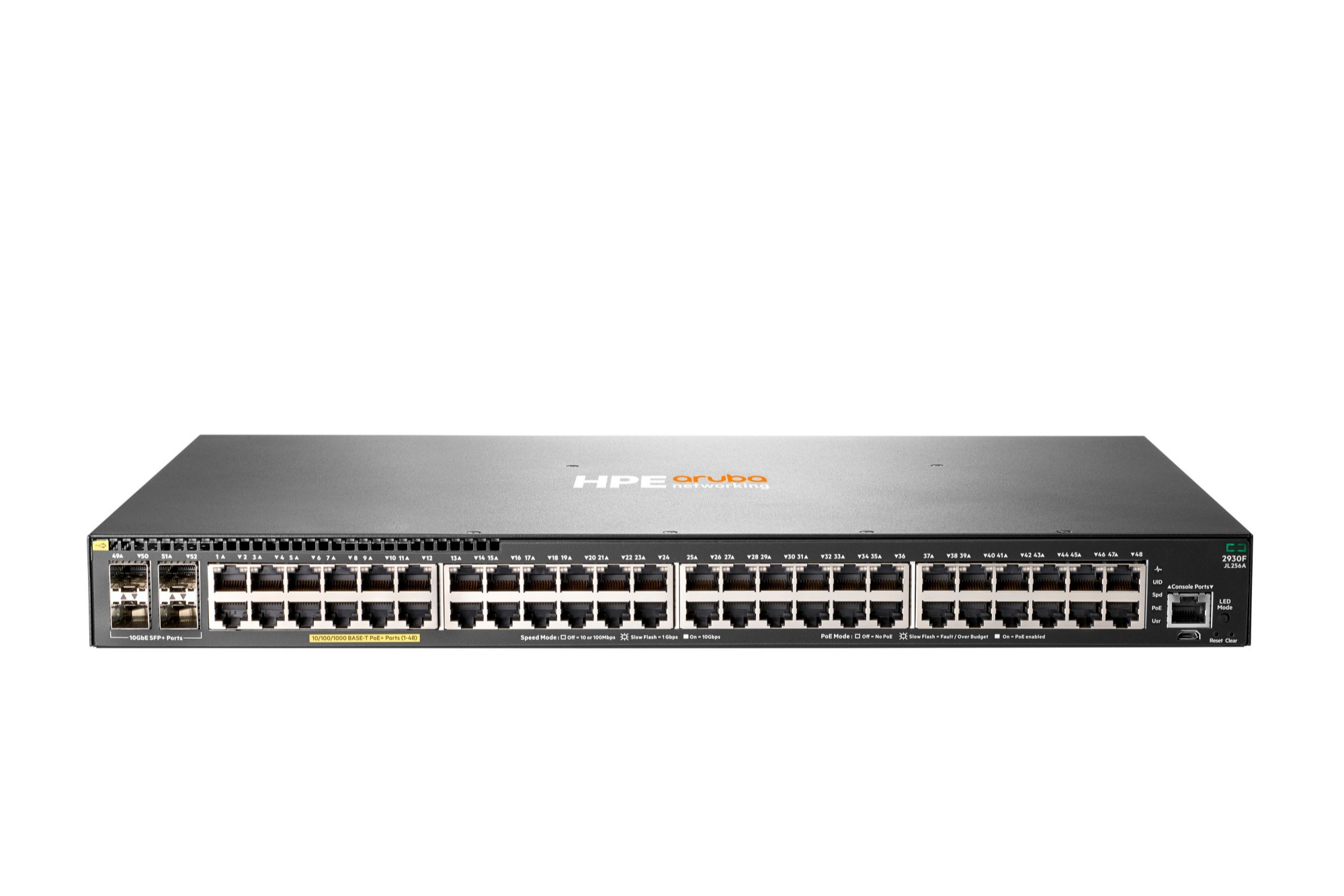

HPE JL256A - Aruba 2930F 48G PoE+ 4SFP+ Swch
Aruba Networking 2930F 48G PoE+ 4SFP+ Switch
Part#:
JL256A
Manufacturer:
HPE
Excl. VAT: £1,564.50
RRP: £6,579.00
Save: 76%
In stock
The HPE Aruba Networking 2930F Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. HPE Aruba Networking Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10 GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
What is new supporting point:
Scale with 8-member stacking.
Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support.
Convenient built-in 1 GbE or 10 GbE uplinks and up to 740W PoE+.
The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks.
What is new supporting point:
Scale with 8-member stacking.
Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support.
Convenient built-in 1 GbE or 10 GbE uplinks and up to 740W PoE+.
The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks.
More Information
Part#
JL256A
EAN
0190017007229
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45/micro-USB |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Half duplex | Yes |
| Virtual LAN features | Private VLAN |
| Data transmission | |
| Throughput | 112 Mpps |
| Latency (1 Gbps) | 3.8 µs |
| Latency (10 Gbps) | 1.6 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 32768 entries |
| Switching capacity | 176 Gbit/s |
| Security | |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv1, SNMPv2, SNMPv3, Telnet, RMON1, FTP |
| Routing protocols | RIPng, VRRP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Side-to-side airflow |
| Performance | |
| Virtual stacking (units) | 8 |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 4096 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 459 W |
| Power supply included | Yes |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 293 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Weight & dimensions | |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 304.2 mm |
| Weight | 4.46 kg |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Technical details | |
| Virtual stacking (units) | 8 |
| Form factor | 1U |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 4096 MB |
Manufacturer
HPE
