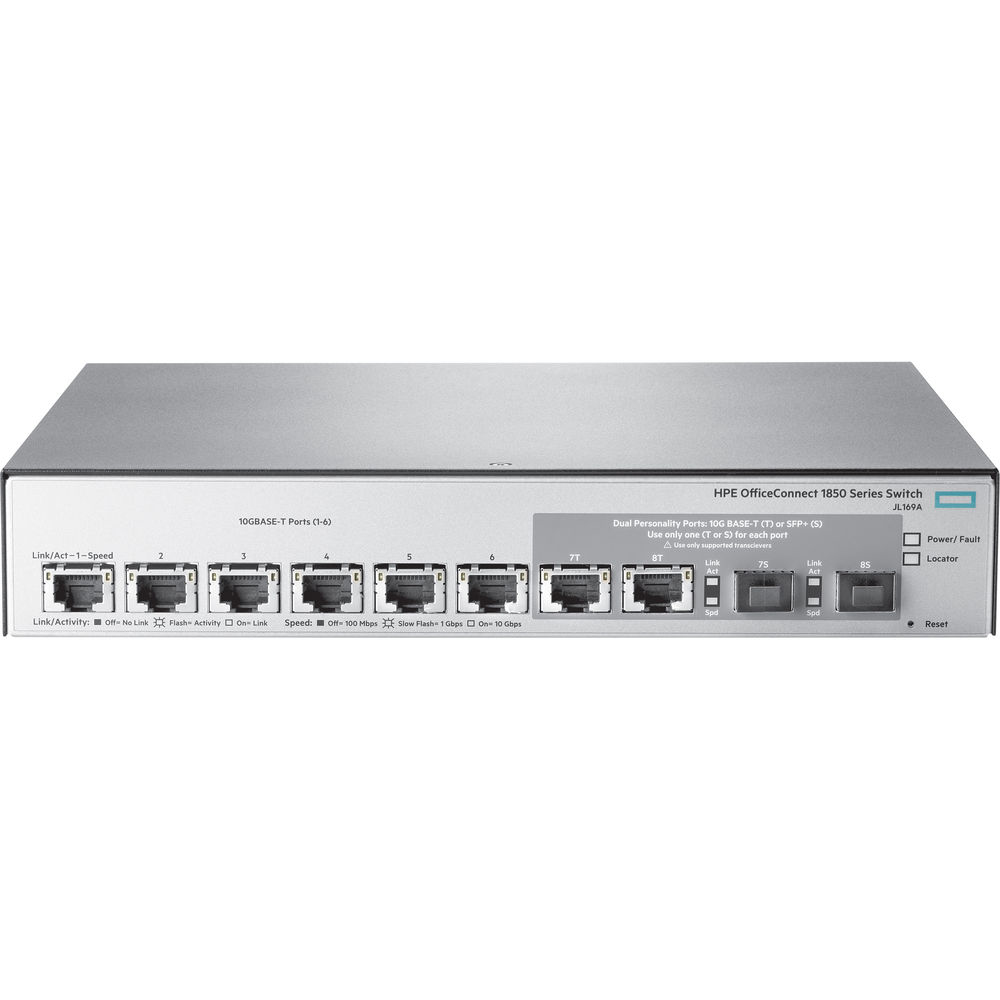

HPE JL169A - 1850 6XGT 2XGT/SFP+ Renew Switch
HPE OfficeConnect 1850 6XGT and 2XGT/SPF+ Renew Switch
Part#:
JL169AR
Manufacturer:
HPE
Excl. VAT: £1,048.00
Available to Backorder: contact for lead time
HPE OfficeConnect 1850 6XGT and 2XGT/SPF+ Renew Switch
More Information
Part#
JL169AR
Specification
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 2 |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Packet buffer memory | 2 MB |
| Stackable | Yes |
| Processor frequency | 600 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 128 MB |
| Built-in processor | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Processor frequency | 600 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Management features | |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Data transmission | |
| Throughput | 119 Mpps |
| Latency (10-100 Mbps) | 6.8 µs |
| Latency (1 Gbps) | 2.9 µs |
| Latency (10 Gbps) | 6.8 µs |
| Packet buffer memory | 2 MB |
| MAC address table | 16000 entries |
| Switching capacity | 160 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Memory | |
| Packet buffer memory | 2 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 128 MB |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 42.8 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Weight & dimensions | |
| Width | 253 mm |
| Depth | 260.7 mm |
| Height | 44 mm |
| Weight | 1.74 kg |
Manufacturer
HPE
