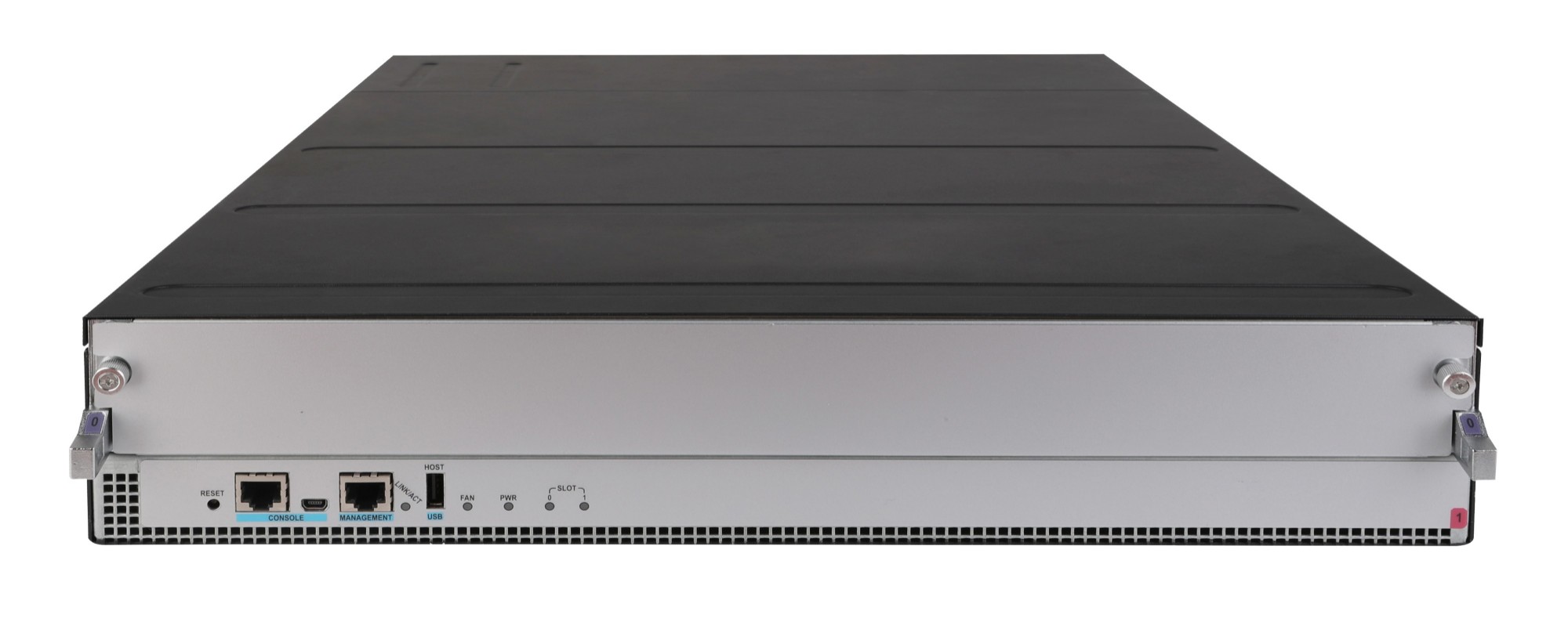

HPE JH951A - 12901E Switch Chassis
HPE Networking Comware Switch Chassis 12901E
Part#:
JH951A
Manufacturer:
HPE
Excl. VAT: £48,033.00
Available to Backorder: contact for lead time
The HPE Networking Comware Switch Series 12900E is a next-generation modular data center core switch designed to support virtualized data centers and the evolving needs of private and public cloud deployments. It offers unprecedented levels of performance, buffering, scale, and availability with high-density 1GbE, 10GbE, 40GbE,100GbE and 400GbE connectivity. The switch series includes 1-, 2-, 4-, 8- and 16-slot chassis. Ready for software-defined networking (SDN), the HPE Networking Comware Switch Series 12900E supports a full Layer 2 and Layer 3 feature set as well as advanced data center features to build resilient scalable fabrics and deliver outstanding convergence times.
What is new supporting point:
Introducing next-generation, high performance 400G/100G H2 modules with improved features ideal for Telco, Cloud Service Providers and large enterprises
High density 10GbE, 40GbE, 100GbE and 400GbE connectivity with nonblocking wirespeed performance. (H2 modules supports 100GbE/400GbE with OS-Comware v9)
Nonblocking, lossless Clos architecture
VXLAN, EVPN, IRF, and DRNI support for virtualized and cloud deployments
New generation OS-Comware v9 available with H2 modules offers enhanced software features such as segment routing MPLS, egress ACL, egress rate limiting and others for highly distributed environments
HB/HF, Type X and H2 modules support the same chassis, fan tray and power supply resulting in investment protection for customer
What is new supporting point:
Introducing next-generation, high performance 400G/100G H2 modules with improved features ideal for Telco, Cloud Service Providers and large enterprises
High density 10GbE, 40GbE, 100GbE and 400GbE connectivity with nonblocking wirespeed performance. (H2 modules supports 100GbE/400GbE with OS-Comware v9)
Nonblocking, lossless Clos architecture
VXLAN, EVPN, IRF, and DRNI support for virtualized and cloud deployments
New generation OS-Comware v9 available with H2 modules offers enhanced software features such as segment routing MPLS, egress ACL, egress rate limiting and others for highly distributed environments
HB/HF, Type X and H2 modules support the same chassis, fan tray and power supply resulting in investment protection for customer
More Information
Part#
JH951A
EAN
0190017165226
Specification
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Traffic classification | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| Console port | RJ-45 |
| Number of management ports | 2 pc(s) |
| I/O ports | Supports a maximum of 48 100 GbE, 40 GbE or 10 GbE ports or a combination |
| Network | |
| 10G support | Yes |
| Data transmission | |
| Throughput | 5800 Mpps |
| MAC address table | 16384 entries |
| Switching capacity | 9600 Gbit/s |
| Protocols | |
| Routing protocols | BGP4, IS-IS, MPLS, OSPF, OSPFv3, RIP, RIPng |
| Design | |
| Form factor | 1U |
| Product colour | Grey, Black |
| Stackable | No |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 1200 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 16000 MB |
| Flash memory | 1024 MB |
| Built-in processor | Yes |
| Stackable | No |
| Power | |
| Power supply included | No |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 48 - 60 V |
| Power consumption note | 2400W |
| Power source | AC/DC |
| Power supply note | 16 power supply slots 1 minimum power supply required (ordered separately) |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Latency | < 5 microseconds (64-byte packets) |
| Performance management | IMC - Intelligent Management Center; Command-line interface; Out-of-band management (serial RS-232C); SNMP manager; Telnet; Terminal interface (serial RS-232C); Modem interface; IEEE 802.3 Ethernet MIB; Ethernet interface MIB |
| Memory and processor | Quad Core MIPS64 @ 1.2GHz, 1 GB flash, 16 GB DDR3 SDRAM |
| I/O ports | Supports a maximum of 48 100 GbE, 40 GbE or 10 GbE ports or a combination |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 856 mm |
| Height | 88 mm |
| Weight | 35 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey, Black |
| Stackable | No |
| Processor frequency | 1200 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Memory type | DDR3-SDRAM |
| Internal memory | 16000 MB |
| Flash memory | 1024 MB |
Manufacturer
HPE
