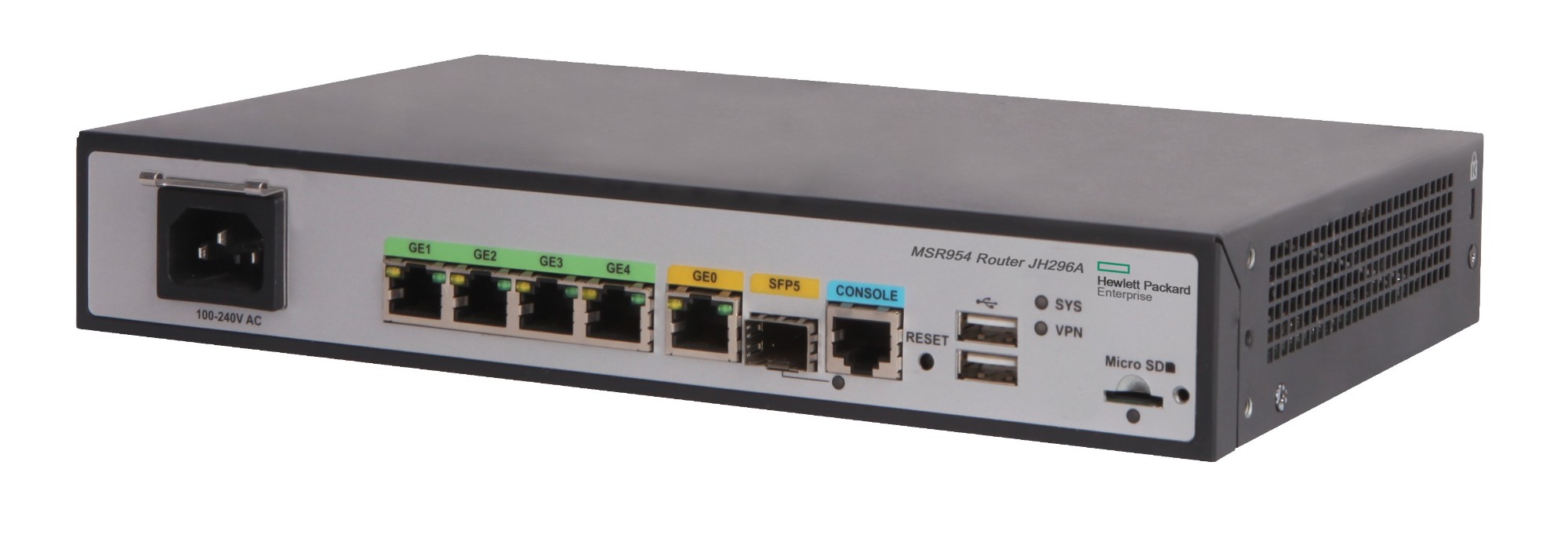

HPE MSR954 1GbE SFP 2GbE-WAN 4GbE-LAN CWv7 Router
MSR954 1GbE SFP 2GbE-WAN 4GbE-LAN CWv7 Router
Part#:
JH296A#ACC
Manufacturer:
HPE
Excl. VAT: £574.87
Available to Backorder: contact for lead time
The HPE Networking Comware Router Series MSR95x delivers high-performance, small branch routing in a single, cost-optimized form factor. Featuring integrated routing, switching, wireless, security, and voice with no additional licensing, boost your service delivery while simplifying the management of the corporate wide area network (WAN). This series is flexible to deploy, with Zero Touch Provisioning and WAN options with LTE connectivity. With Comware v7 and fiber connections, the MSR95x also brings the performance and advanced services available on modular routers, such as IPS and high encryption, to a fixed port form factor.
What is new supporting point:
Integrated 4G LTE, 3G as well as IEEE 802.11b/g/n WLAN in one box
Integrated 1/10GbE, WAN and LAN, fiber (SFP)
Converged high-performance fiber routing, switching, security, and 3 Mpps performance
Unified Comware v7 OS, Comware v7 OS zero-touch solution, and single-pane-of-glass management
Embedded encryption, stateful firewall, NAT, ADVPN security features
The new HPE Networking Comware Router MSR958X router supports 10GbE ports with Comware v9 OS
What is new supporting point:
Integrated 4G LTE, 3G as well as IEEE 802.11b/g/n WLAN in one box
Integrated 1/10GbE, WAN and LAN, fiber (SFP)
Converged high-performance fiber routing, switching, security, and 3 Mpps performance
Unified Comware v7 OS, Comware v7 OS zero-touch solution, and single-pane-of-glass management
Embedded encryption, stateful firewall, NAT, ADVPN security features
The new HPE Networking Comware Router MSR958X router supports 10GbE ports with Comware v9 OS
More Information
Part#
JH296A#ACC
EAN
0889296338277
Specification
Ethernet LAN features | |
---|---|
Ethernet LAN data rates | 1000 Mbit/s |
Cabling technology | 10/100/1000Base-T(X) |
Ethernet LAN | Yes |
Network | |
MAC address table | 10000 entries |
Networking standards | IEEE 802.3 |
Ethernet LAN data rates | 1000 Mbit/s |
Cabling technology | 10/100/1000Base-T(X) |
Ethernet LAN | Yes |
Forwarding rate | 0.03 Mpps |
Ethernet interface type | Gigabit Ethernet |
WAN connection | |
Ethernet WAN | Yes |
Management features | |
Web-based management | Yes |
Ports & interfaces | |
USB ports quantity | 1 |
USB version | 2.0 |
Ethernet LAN (RJ-45) ports | 4 |
WAN ports quantity | 1 |
Protocols | |
DHCP server | Yes |
DHCP client | Yes |
Technical details | |
Product colour | Grey |
Harmonized System (HS) code | 85176990 |
Security | |
Firewall | No |
MAC address table | 10000 entries |
Security algorithms | Not supported |
Design | |
Product colour | Grey |
Power | |
AC input voltage | 100 - 264 V |
Power consumption (typical) | 22 W |
Power consumption (max) | 22 W |
Operational conditions | |
Operating relative humidity (H-H) | 5 - 92% |
Weight & dimensions | |
Width | 266 mm |
Depth | 161 mm |
Height | 43.6 mm |
Weight | 1 kg |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Manufacturer
HPE
