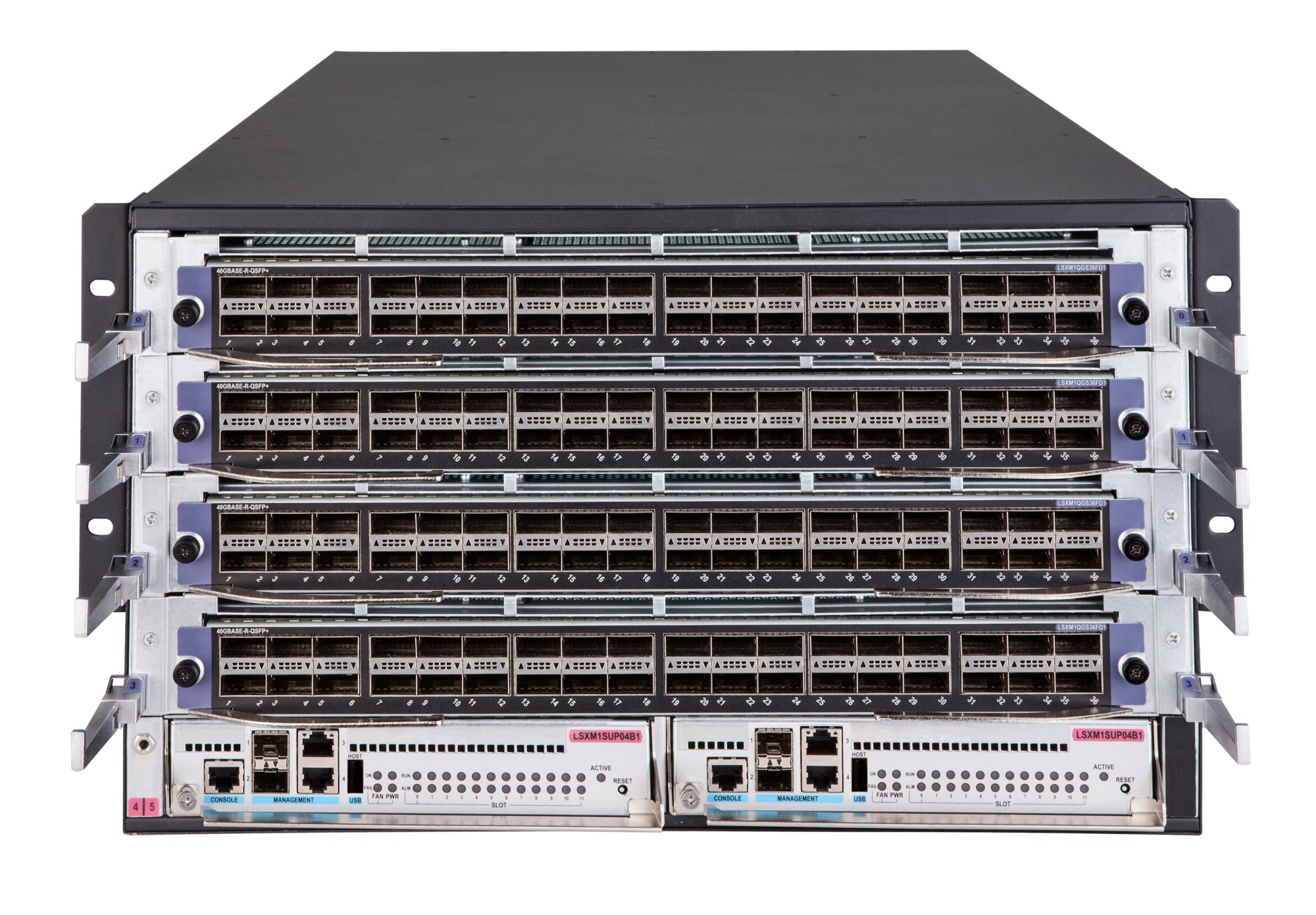

HPE Networking Comware Switch Chassis 12904E
Networking Comware Switch Chassis 12904E
Part#:
JH262A
Manufacturer:
HPE
Excl. VAT: £5,300.55
RRP: £8,402.00
Save: 37%
Available to Backorder: contact for lead time
The HPE Networking Comware Switch Series 12900E is a next-generation modular data center core switch designed to support virtualized data centers and the evolving needs of private and public cloud deployments. It offers unprecedented levels of performance, buffering, scale, and availability with high-density 1GbE, 10GbE, 40GbE,100GbE and 400GbE connectivity. The switch series includes 1-, 2-, 4-, 8- and 16-slot chassis. Ready for software-defined networking (SDN), the HPE Networking Comware Switch Series 12900E supports a full Layer 2 and Layer 3 feature set as well as advanced data center features to build resilient scalable fabrics and deliver outstanding convergence times.
What is new supporting point:
High density 10GbE, 40GbE, 100GbE and 400GbE connectivity with nonblocking wirespeed performance. (H2 modules supports 100GbE/400GbE with OS-Comware v9)
New generation OS-Comware v9 available with H2 modules offers enhanced software features such as segment routing MPLS, egress ACL, egress rate limiting and others for highly distributed environments
HB/HF, Type X and H2 modules support the same chassis, fan tray and power supply resulting in investment protection for customer
VXLAN, EVPN, IRF, and DRNI support for virtualized and cloud deployments
Nonblocking, lossless Clos architecture
Introducing next-generation, high performance 400G/100G H2 modules with improved features ideal for Telco, Cloud Service Providers and large enterprises
What is new supporting point:
High density 10GbE, 40GbE, 100GbE and 400GbE connectivity with nonblocking wirespeed performance. (H2 modules supports 100GbE/400GbE with OS-Comware v9)
New generation OS-Comware v9 available with H2 modules offers enhanced software features such as segment routing MPLS, egress ACL, egress rate limiting and others for highly distributed environments
HB/HF, Type X and H2 modules support the same chassis, fan tray and power supply resulting in investment protection for customer
VXLAN, EVPN, IRF, and DRNI support for virtualized and cloud deployments
Nonblocking, lossless Clos architecture
Introducing next-generation, high performance 400G/100G H2 modules with improved features ideal for Telco, Cloud Service Providers and large enterprises
More Information
Part#
JH262A
EAN
0889296195948
Specification
| Ports & interfaces | |
|---|---|
| I/O ports | (4) I/O module slots; Supports 192 1/10/40/100 GbE ports or 96 400 GbE ports or a combination |
| Data transmission | |
| Throughput | 16000 Mpps |
| MAC address table | 16384 entries |
| Switching capacity | 76800 Gbit/s |
| Protocols | |
| Routing protocols | BGP4, IS-IS, MPLS, OSPF, OSPFv3, RIP, RIPng |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 1200 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 1024 MB |
| Built-in processor | Yes |
| Power | |
| Power consumption (max) | 2400 W |
| Output voltage | 48 - 60 V |
| AC input voltage | 100 - 240 V |
| DC input voltage | 48 - 60 V |
| Power consumption note | 2400W |
| Power supply note | 16 power supply slots 1 minimum power supply required (ordered separately) |
| Other features | |
| Latency | < 5 microseconds (64-byte packets) |
| Dimensions (WxDxH) | 439.9 x 857 x 263.9 mm |
| Performance management | IMC - Intelligent Management Center; Command-line interface; Out-of-band management (serial RS-232C); SNMP manager; Telnet; Terminal interface (serial RS-232C); Modem interface; IEEE 802.3 Ethernet MIB; Ethernet interface MIB |
| Memory and processor | Quad Core MIPS64 @ 1.2 GHz, 1 GB flash, 8 GB DDR3 SDRAM Quad Core Intel X86 @ 2.2GHz , 8 GB flash, 16 GB DDR3 SDRAM (Type X and H2 modules) |
| Weight (imperial) | 36 kg (79.4 lbs) |
| I/O ports | (4) I/O module slots; Supports 192 1/10/40/100 GbE ports or 96 400 GbE ports or a combination |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 439.9 mm |
| Depth | 857 mm |
| Height | 263.9 mm |
| Weight | 36 kg |
| Weight (imperial) | 36 kg (79.4 lbs) |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Processor frequency | 1200 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Memory type | DDR3-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 1024 MB |
Manufacturer
HPE
