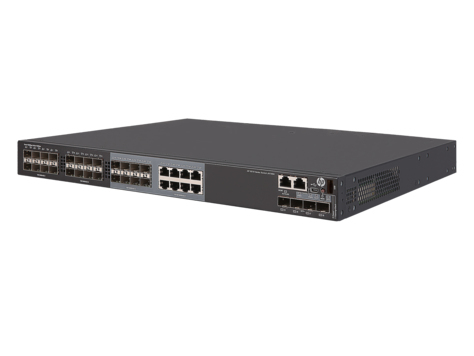

HPE JH149A - 5510 24G SFP 4SFP+ HI Renew Swch
HPE 5510 24G SFP 4SFP+ HI 1-slot Renew Switch
Part#:
JH149AR
Manufacturer:
HPE
Excl. VAT: £6,582.80
RRP: £9,404.00
Save: 30%
Available to Backorder: contact for lead time
**RENEW**
More Information
Part#
JH149AR
EAN
0190017043739
Specification
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic shaping | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Virtual LAN features | |
| VLAN support | Yes |
| Data transmission | |
| Multicast MAC address table | 32768 entries |
| Throughput | 214 Mpps |
| Latency (10-100 Mbps) | 5 µs |
| Latency (1 Gbps) | 5 µs |
| Latency (10 Gbps) | 3 µs |
| Packet buffer memory | 4 MB |
| Switching capacity | 288 Gbit/s |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 4 MB |
| Stackable | Yes |
| Physical stacking (units) | 9 |
| Internal memory | 2048 MB |
| Flash memory | 512 MB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Physical stacking (units) | 9 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 16 |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 8 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Multicast features | |
| Multicast MAC address table | 32768 entries |
| Multicast support | Yes |
| Memory | |
| Packet buffer memory | 4 MB |
| Internal memory | 2048 MB |
| Flash memory | 512 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 460 mm |
| Height | 43.7 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Manufacturer
HPE
