HPE JG913A - 1620-24G Renew Switch

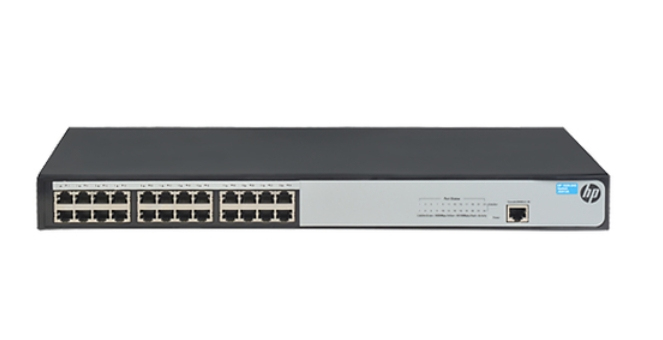

HPE OfficeConnect 1620 24G Renew Switch
Part#:
JG913AR
Manufacturer:
HPE
Excl. VAT: £192.00
Available to Backorder: contact for lead time
HPE OfficeConnect 1620 24G Renew Switch
More Information
Part#
JG913AR
EAN
0889296506799
Specification
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Network | |
| IGMP snooping | Yes |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Packet buffer memory | 4.1 MB |
| Stackable | Yes |
| Processor frequency | 500 MHz |
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Processor frequency | 500 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Management features | |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Data transmission | |
| Throughput | 35.7 Mpps |
| Latency (10-100 Mbps) | 7 µs |
| Latency (1 Gbps) | 5 µs |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8192 entries |
| Switching capacity | 48 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 15 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 439.9 mm |
| Depth | 173 mm |
| Height | 43.9 mm |
| Weight | 2.2 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Manufacturer
HPE
