HPE JG406A - MSR3024 AC Router

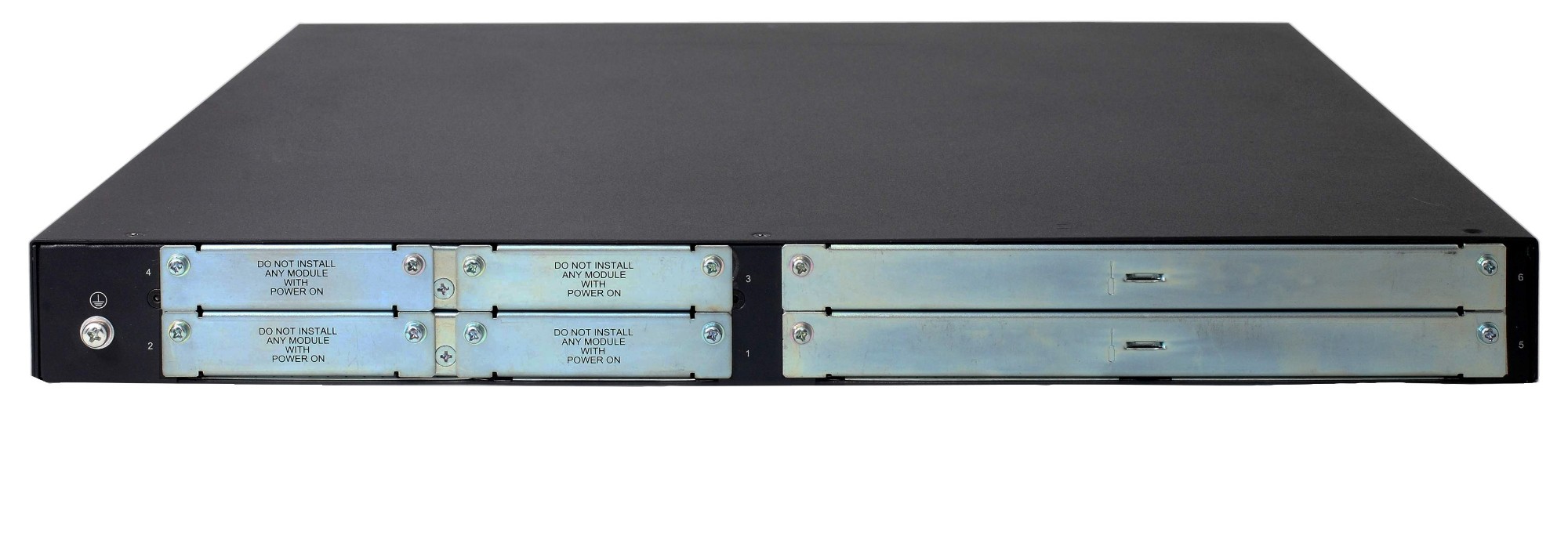

HPE FlexNetwork MSR3024 AC Router
Part#:
JG406A
Manufacturer:
HPE
Excl. VAT: £2,866.00
Available to Backorder: contact for lead time
The HPE Networking Comware Router Series MSR3000 feature a modular design that delivers unmatched application services for medium to large branch offices. These routers offer Gigabit switching, provide an enhanced PCI bus, ship with the Comware v7 OS, provide a full-featured resilient routing platform including IPv6 and MPLS, offer up to 13 Mpps forwarding capacity and 14.3 Gb/s of IPSec VPN encrypted throughput to ensure high performance with concurrent services. With the Open Application Platform module, the HPE Networking Comware Router Series MSR3000 offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches. The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly adapt to changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.
What is new supporting point:
Additional features such as ADVPN and hierarchical QoS.
High-density voice modules and channelized POS access to cover.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
What is new supporting point:
Additional features such as ADVPN and hierarchical QoS.
High-density voice modules and channelized POS access to cover.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
More Information
Part#
JG406A
EAN
0887758088999
Specification
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Network | |
| MAC address table | 500000 entries |
| Networking standards | IEEE 802.3ab |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Forwarding rate | 2.6 Mpps |
| Ethernet interface type | Gigabit Ethernet |
| Memory | |
| Flash memory | 256 MB |
| Internal memory | 2048 MB |
| Performance | |
| Internal memory type | DDR3 |
| Flash memory | 256 MB |
| Internal memory | 2048 MB |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Mean time between failures (MTBF) | 8760 h |
| Heat dissipation | 168 BTU/h |
| WAN connection | |
| SFP WAN | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| I/O ports | 2 HMIM slots 4 SIC slots or 2 DSIC slots 3 RJ-45 10/100/1000 WAN ports (1 combo can be used as SFP WAN port) 1 VPM slots |
| Smart Interface Card (SIC) slots quantity | 4 |
| WAN ports quantity | 3 |
| Technical details | |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Mean time between failures (MTBF) | 8760 h |
| Product colour | Black |
| Wireless features | 3G, 4G LTE, 4G Depending on options and configuration |
| Weight (imperial) | 7.9 kg (17.4 lbs) |
| Heat dissipation | 168 BTU/h |
| Warranty period | 1 year(s) |
| Security | |
| MAC address table | 500000 entries |
| Features | |
| Internal memory type | DDR3 |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; AS/NZS 60950-1; GB 4943.1 |
| Flash memory | 256 MB |
| Internal memory | 2048 MB |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Mean time between failures (MTBF) | 8760 h |
| Heat dissipation | 168 BTU/h |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Rack capacity | 1U |
| Power | |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 100 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 480 mm |
| Height | 44.2 mm |
| Weight | 9.7 kg |
| Dimensions (W x D x H) (imperial) | 439.9 x 480.1 x 44.2 mm (17.3 x 18.9 x 1.74") |
| Other features | |
| Memory and processor | : RISC, 4 cores @ 1 GHz, 256 MB flash capacity, 2 GB DDR3 SDRAM |
| Performance management | IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB |
| Mounting | Desktop or can be mounted in a EIA-standard 19 in. telco rack when used with the rack-mount kit in the package |
| Wireless features | 3G, 4G LTE, 4G Depending on options and configuration |
| Weight (imperial) | 7.9 kg (17.4 lbs) |
| Dimensions (W x D x H) (imperial) | 439.9 x 480.1 x 44.2 mm (17.3 x 18.9 x 1.74") |
| System requirements | |
| Memory and processor | : RISC, 4 cores @ 1 GHz, 256 MB flash capacity, 2 GB DDR3 SDRAM |
| Certificates | |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; AS/NZS 60950-1; GB 4943.1 |
Manufacturer
HPE
