HPE JG405A - MSR3044 Router

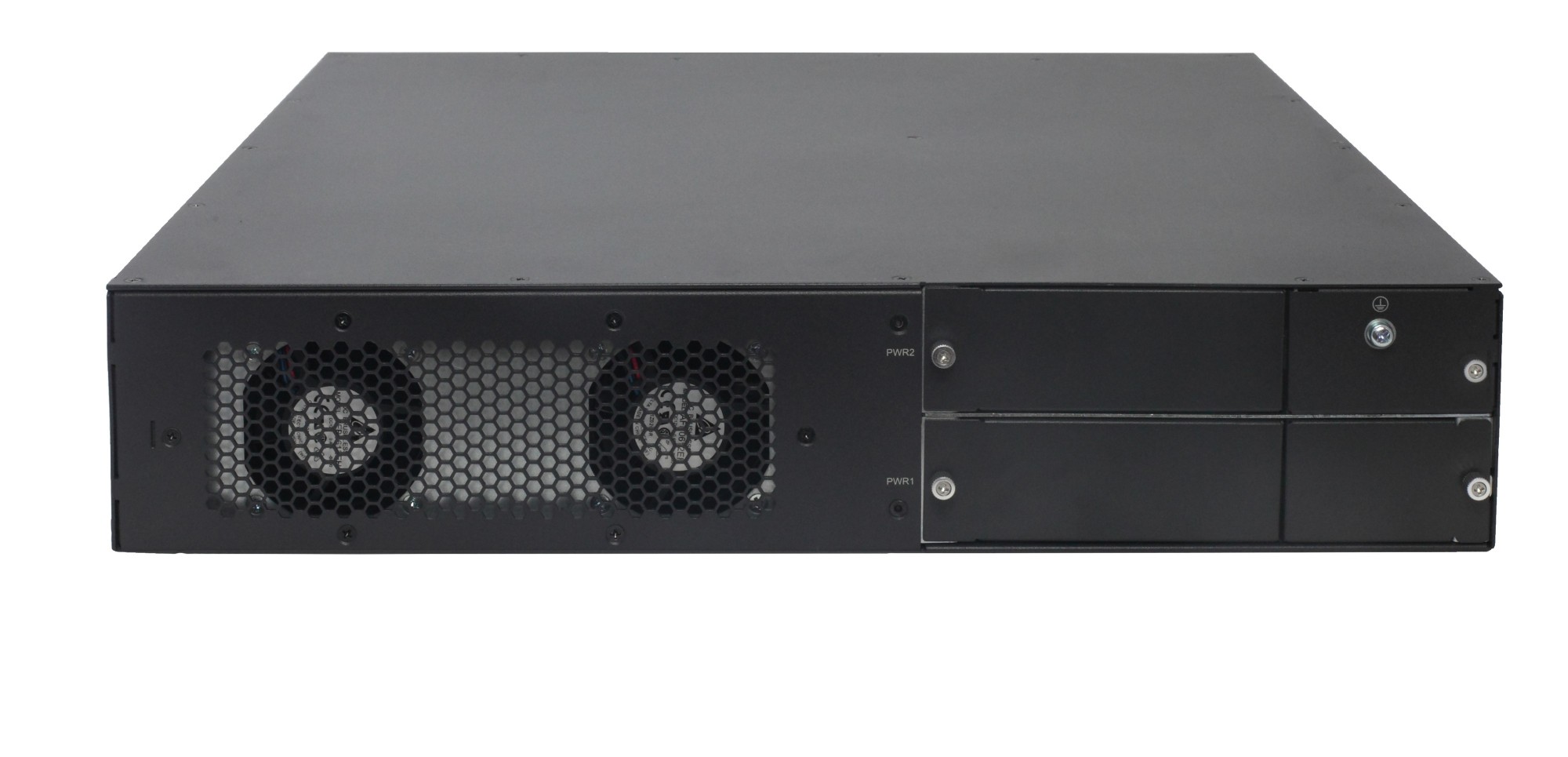

HPE FlexNetwork MSR3044 Router
Part#:
JG405A
Manufacturer:
HPE
Excl. VAT: £2,655.31
RRP: £4,128.00
Save: 36%
Available to Backorder: contact for lead time
The HPE Networking Comware Router Series MSR3000 feature a modular design that delivers unmatched application services for medium to large branch offices. These routers offer Gigabit switching, provide an enhanced PCI bus, ship with the Comware v7 OS, provide a full-featured resilient routing platform including IPv6 and MPLS, offer up to 13 Mpps forwarding capacity and 14.3 Gb/s of IPSec VPN encrypted throughput to ensure high performance with concurrent services. With the Open Application Platform module, the HPE Networking Comware Router Series MSR3000 offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches. The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly adapt to changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.
What is new supporting point:
High-density voice modules and channelized POS access to cover.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
Additional features such as ADVPN and hierarchical QoS.
What is new supporting point:
High-density voice modules and channelized POS access to cover.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
Additional features such as ADVPN and hierarchical QoS.
More Information
Part#
JG405A
EAN
0886112790486
Specification
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Network | |
| MAC address table | 500000 entries |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Forwarding rate | 2.5 Mpps |
| Ethernet interface type | Gigabit Ethernet |
| Memory | |
| Flash memory | 256 MB |
| Internal memory | 2048 MB |
| Performance | |
| Processor cores | 4 |
| Internal memory type | DDR3 |
| Flash memory | 256 MB |
| Internal memory | 2048 MB |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Heat dissipation | 172 BTU/h |
| WAN connection | |
| SFP WAN | Yes |
| Ethernet WAN | Yes |
| Management features | |
| Web-based management | Yes |
| Ports & interfaces | |
| Installed SFP modules quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| I/O ports | 4 HMIM slots 4 SIC slots or 2 DSIC slots or a combination 3 RJ-45 10/100/1000 WAN ports (2 combo can be used as SFP WAN port) 2 VPM slots 2 power supply slots |
| Smart Interface Card (SIC) slots quantity | 4 |
| Combo SFP ports quantity | 2 |
| WAN ports quantity | 3 |
| Protocols | |
| DHCP server | Yes |
| DHCP client | Yes |
| Technical details | |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Throughput | 3.5 |
| Product colour | Stainless steel |
| Wireless features | 3G, 4G LTE, 4G Depending on options and configuration |
| Weight (imperial) | 15.3 kg (33.8 lbs) |
| Heat dissipation | 172 BTU/h |
| Harmonized System (HS) code | 85176990 |
| Warranty period | 1 year(s) |
| Security | |
| Firewall | Yes |
| MAC address table | 500000 entries |
| Features | |
| Processor cores | 4 |
| Internal memory type | DDR3 |
| Flash memory | 256 MB |
| Internal memory | 2048 MB |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Heat dissipation | 172 BTU/h |
| Design | |
| Rack mounting | Yes |
| Product colour | Stainless steel |
| Power | |
| AC input voltage | 220 - 240 V |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 100 W |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 480 mm |
| Height | 88.1 mm |
| Weight | 15.3 kg |
| Dimensions (W x D x H) (imperial) | 439.9 x 480.1 x 88.1 mm (17.3 x 18.9 x 3.47") |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Memory and processor | : RISC, 4 cores @ 1 GHz, 256 MB flash capacity, 2 GB DDR3 SDRAM |
| Throughput | 3.5 |
| Performance management | IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB |
| Mounting | Desktop or can be mounted in a EIA-standard 19 in. telco rack when used with the rack-mount kit in the package |
| Wireless features | 3G, 4G LTE, 4G Depending on options and configuration |
| Weight (imperial) | 15.3 kg (33.8 lbs) |
| Dimensions (W x D x H) (imperial) | 439.9 x 480.1 x 88.1 mm (17.3 x 18.9 x 3.47") |
| System requirements | |
| Memory and processor | : RISC, 4 cores @ 1 GHz, 256 MB flash capacity, 2 GB DDR3 SDRAM |
