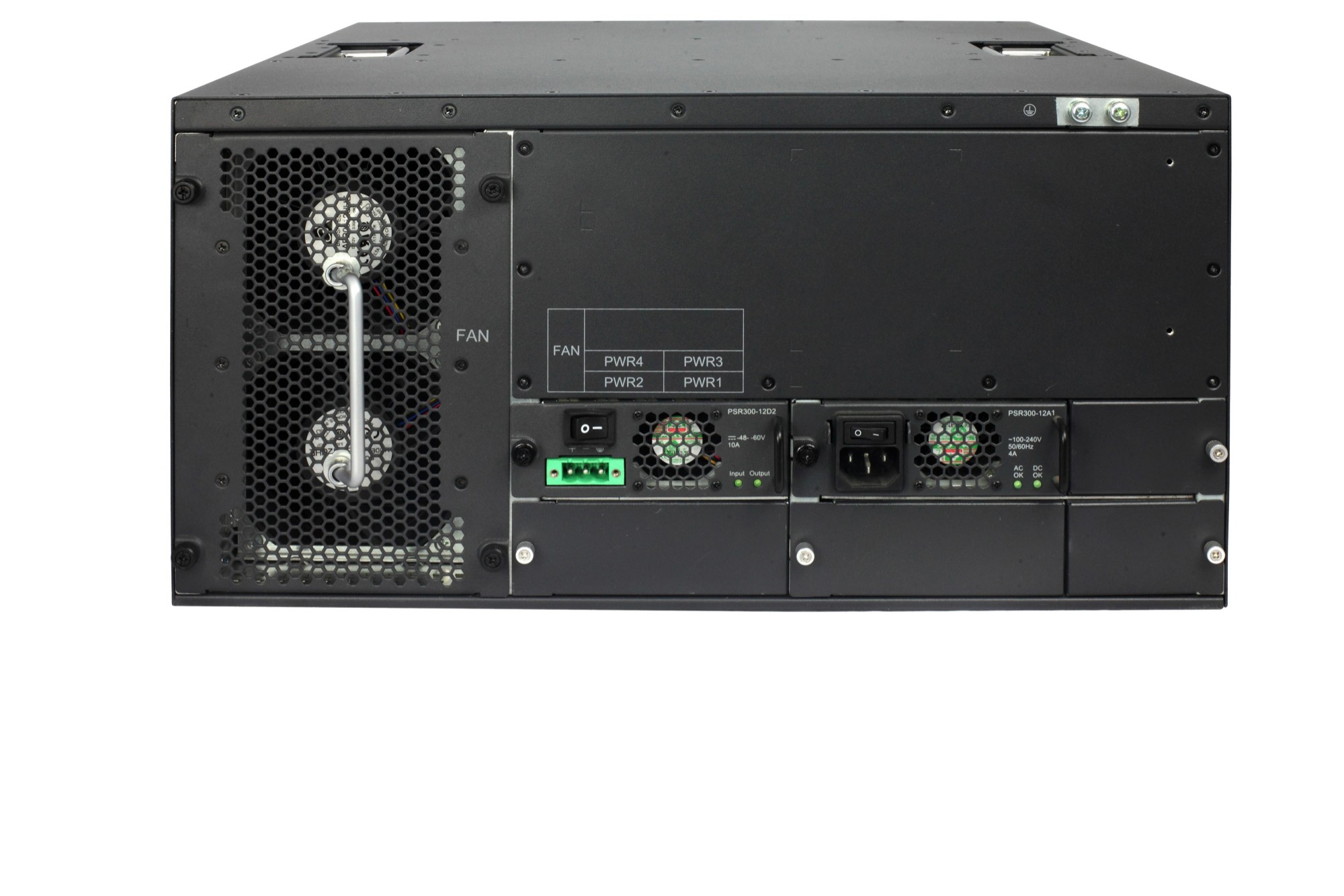

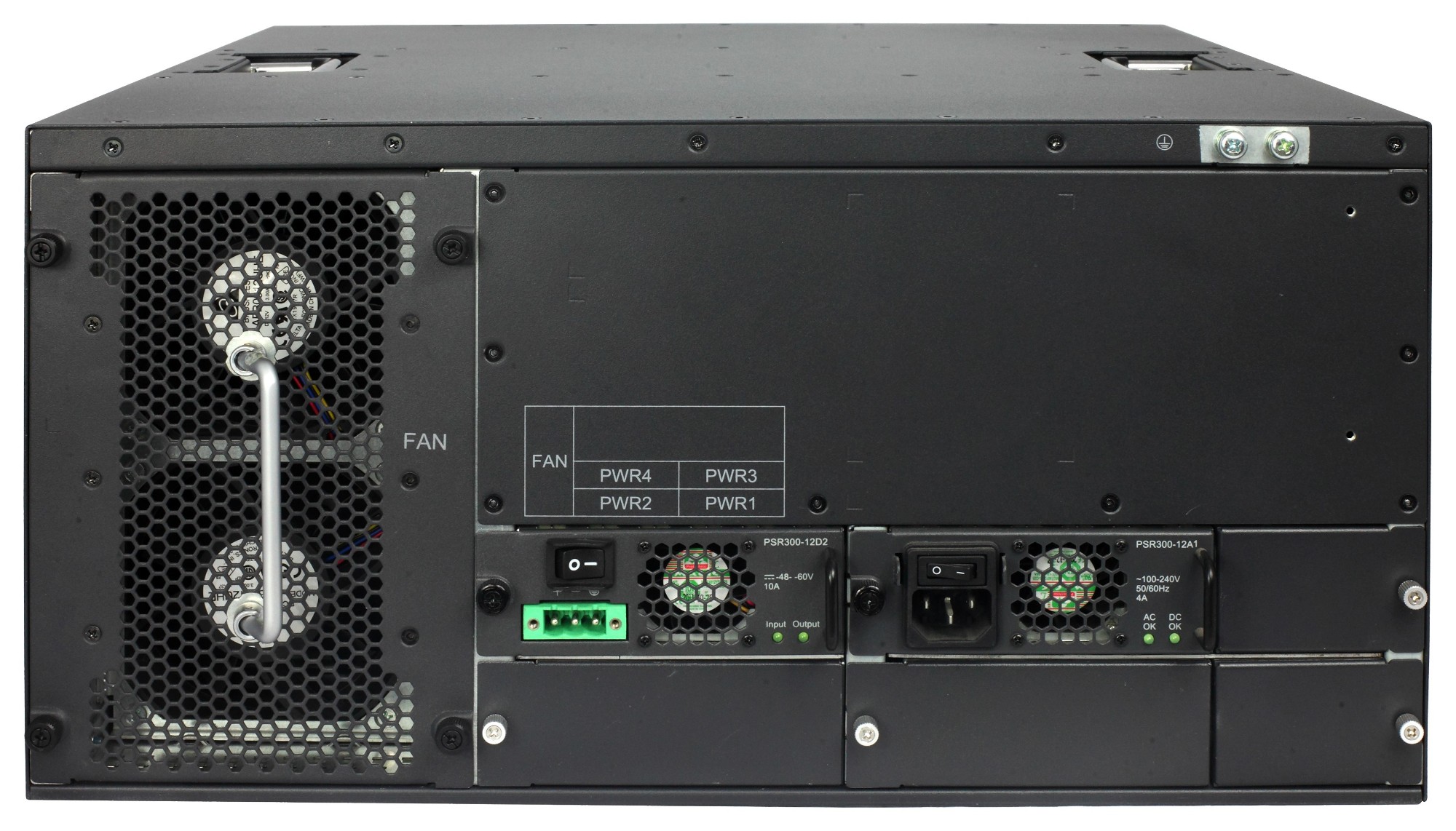

HPE JG402A - MSR4080 Router Chassis
HPE Networking Comware MSR4080 Router Chassis
Part#:
JG402A
Manufacturer:
HPE
Excl. VAT: £4,013.00
Available to Backorder: contact for lead time
The HPE Networking Comware Router Series MSR4000 delivers high-performance large branch routing with up to 36 Mpps in a cost-optimized form factor. Featuring integrated routing, switching, security, VPN, and SIP with no additional licensing, you can boost your service delivery while simplifying the management of your corporate WAN. The MSR4000 Series leverages separated data and control planes, dual main processing units (MPUs), and support for up to four power supplies. The routers provide a full-featured, resilient routing platform with the latest multicore CPUs, offer 10 Gigabit SFP+ integrated, provide an enhanced PCI bus, and ship with the latest version of HPE Comware software to help enable high performance with concurrent services. With the Open Application Platform module, the MSR4000 Series offers a wide range of virtualized applications. Its distributed, modular architecture and high reliability also strengthen the resiliency of large branches.
More Information
Part#
JG402A
EAN
0886112790424
Specification
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Network | |
| MAC address table | 1000000 entries |
| Port forwarding | Yes |
| Auto MDI/MDI-X | Yes |
| Traffic control | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Forwarding rate | 36 Mpps |
| Multicast support | Yes |
| VLAN support | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Memory | |
| Flash memory | 512 MB |
| Internal memory | 2048 MB |
| Performance | |
| Internal memory type | DDR3 |
| Traffic control | Yes |
| Flash memory | 512 MB |
| Internal memory | 2048 MB |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| Management features | |
| Web-based management | No |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 6 |
| I/O ports | (8) HMIM slots, (2) MPU (main processing unit) and 1 SPU (service processing unit) slots Maximum, depending on model and configuration |
| Number of MPU slots | 2 |
| Protocols | |
| Routing protocols | RIP-1, RIP-2 |
| DHCP server | Yes |
| DHCP client | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Technical details | |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Product colour | Black, Silver |
| Wireless features | Uses USB memory disk to download and upload configuration or OS image files; supports an external USB 3G/4G modem for a 3G/4G WAN uplink |
| Weight (imperial) | 22.6 kg (49.9 lbs) |
| Security | |
| Firewall | Yes |
| MAC address table | 1000000 entries |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1 |
| ARP attack prevention | Yes |
| Access Control List (ACL) | Yes |
| ICMP attack prevention | Yes |
| Features | |
| Internal memory type | DDR3 |
| Flash memory | 512 MB |
| Internal memory | 2048 MB |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Design | |
| Rack mounting | Yes |
| Product colour | Black, Silver |
| Rack capacity | 5U |
| Power | |
| Power source type | PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 300 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 480 mm |
| Height | 219.5 mm |
| Weight | 22.6 kg |
| Dimensions (W x D x H) (imperial) | 439.9 x 480.1 x 219.5 mm (17.3 x 18.9 x 8.64") |
| Other features | |
| Memory and processor | : MPU-100, 2 cores RISC @ 1 GHz, 512 MB flash capacity, 2 GB DDR3 SDRAM : SPU-100, 8 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM : SPU-200, 16 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM |
| Performance management | IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB |
| Mounting | Desktop or can be mounted in a EIA-standard 19 in. telco rack when used with the rack-mount kit in the package |
| Wireless features | Uses USB memory disk to download and upload configuration or OS image files; supports an external USB 3G/4G modem for a 3G/4G WAN uplink |
| Weight (imperial) | 22.6 kg (49.9 lbs) |
| Dimensions (W x D x H) (imperial) | 439.9 x 480.1 x 219.5 mm (17.3 x 18.9 x 8.64") |
| System requirements | |
| Memory and processor | : MPU-100, 2 cores RISC @ 1 GHz, 512 MB flash capacity, 2 GB DDR3 SDRAM : SPU-100, 8 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM : SPU-200, 16 cores RISC @ 1 GHz, 2 GB DDR3 SDRAM |
Manufacturer
HPE
