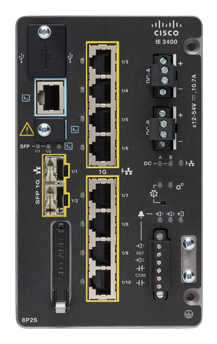

Catalyst IE3400 with 8GE PoE/PoE+, 2GE SFP, Adv. Modular, NE

Catalyst IE3400 with 8GE PoE/PoE+, 2GE SFP, Adv. Modular, NE
Part#:
IE-3400-8P2S-E
Manufacturer:
Cisco
Excl. VAT: £5,125.96
RRP: £7,967.89
Save: 36%
Available to Backorder: contact for lead time
Cisco's Catalyst IE3400 Rugged Series switches combine full Gigabit Ethernet switch solutions with advanced features in a modular, future-proof design. Expandable up to 26 ports in a compact form factor, these rugged switches are optimized for size and power, and bring Cisco intent-based networking to Industrial Ethernet applications.

Advanced features support for digital transformation
Cisco Catalyst IE 3400 Rugged Series is capable of redundancy protocols and time-sensitive networking, ensuring high availability for mission-critical applications. This switch platform is also capable of advanced security for Intent Based Networking.

Modular, versatile switch design
The Cisco Catalyst IE 3400 Rugged Series offers nine modules with copper, fiber, and power over ethernet port options. The platform provides the flexibility to adapt to your growing network connectivity needs and helps to future-proof your investments.

Compact form factor for rugged switch use cases
Measuring 25 percent smaller than the IE3400, the Cisco Catalyst IE3400 Rugged Series is easy to integrate into space and power constrained cabinet installations. Its rugged die-cast chassis is well suited for the harshest environments.

Fast speed, all Gigabit Ethernet
Accelerate digital transformation and upgrade your Internet of Things (IoT) infrastructure to Gigabit speeds. The Cisco Catalyst IE3400 Rugged Series can expand up to 26 ports of Gigabit Ethernet for a wide variety of connectivity needs.

Open extensible platform with IOS XE
Cisco IOS XE is the next-generation network operating system, with built-in open and standards-based APIs and multilayer security that inspires trust. This unified software stack is superb for process and workflow automation, enabling you to qualify and deploy new network connectivity services quicker.
More Information
Part#
IE-3400-8P2S-E
EAN
0889728140348
Specification
Management features
Multicast supportYes
Traffic shapingYes
ARP inspectionYes
Switch typeManaged
Web-based managementYes
System event logYes
Quality of Service (QoS) supportYes
Switch layerL2/L3
Network
IGMP snoopingYes
IGMP entries1000
Networking standardsIEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN supportYes
Spanning tree protocolYes
Number of VLANs256
IP routingYes
Virtual LAN featuresVoice VLAN
Virtual LAN features
VLAN supportYes
Number of VLANs256
Virtual LAN featuresVoice VLAN
Data transmission
Number of VLANs256
MAC address table8000 entries
Number of queues8
Static routeYes
Optical fiber
Fiber optic connectorSFP
Power
Power connectorDC-in jack
Power consumption (typical)47 W
Input current10.6 A
DC input voltage9.6 - 60 V
Technical details
Product colourBlack
Mean time between failures (MTBF)414313 h
Rack mountingYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Fiber ports quantity2
Fiber optic connectorSFP
Console portRJ-45/Mini-USB
Power connectorDC-in jack
Security
Security algorithms802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH
IGMP snoopingYes
Access Control List (ACL)Yes
IGMP entries1000
DHCP featuresDHCP server, DHCP snooping
Multicast features
Multicast supportYes
Protocols
Routing protocolsBGP, BGP4, EIGRP, IS-IS, OSPF, RIP, RIP-1, RIP-2
Memory
Memory typeDRAM
Internal memory4000 MB
Flash memory1500 MB
Design
DIN rail mountingYes
Product colourBlack
Rack mountingYes
Performance
Memory typeDRAM
Mean time between failures (MTBF)414313 h
Internal memory4000 MB
Flash memory1500 MB
Harmonized System (HS) code85176990
FanlessYes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget240 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE+
Operational conditions
Storage temperature (T-T)-40 - 85 °C
Operating temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Width101.6 mm
Depth127 mm
Height152.4 mm
Weight2.27 kg
Logistics data
Harmonized System (HS) code85176990
Manufacturer
Cisco
