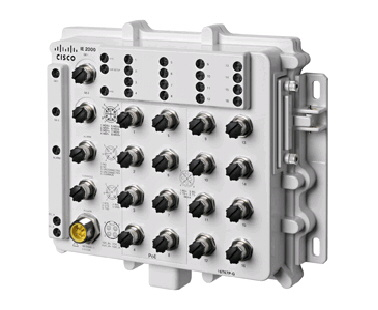

IE2000 IP67 with 16 FE M12 ports (8 PoE+) and 2GE (Lan Base)
16x 10/100Base-T Ethernet (100 MB D-Code), 2x X-Code Port, LAN Base, IEEE 1588, IP67, NAT, PoE+
Part#:
IE-2000-16T67P-G-E
Manufacturer:
Cisco
Excl. VAT: £3,045.07
RRP: £4,766.09
Save: 36%
Available to Backorder: contact for lead time
The Cisco® Industrial Ethernet (IE) 2000 IP67 Series is Cisco’s first ruggedized switching platform that complies with the most demanding IP67 industrial standards. It also provides everything you’ve come to expect from the global leader in Internet Protocol (IP) networking: easy integration with the rest of your network, reliability, rock-solid performance, and world-class support. Now, those advantages and Cisco IOS® Software features extend all the way to the factory floor, rail yard, or other industrial site, even in the harshest environments. So you can finally fulfill the promise of network convergence-across both information technology (IT) and operations technology (OT) environments-with one supplier.
- Line rate/nonblocking uplink/downlink ports
- Forwarding rate: 6.5 mpps with 64-byte packets
- Egress buffer: 2 MB
- Unicast MAC addresses: 8000
- Internet Group Management Protocol (IGMP) multicast groups: 255
- Max VLANs: 1005
- IPv4 MAC security ACEs: 384 (default TCAM template)
- Bidirectional, 128 NAT entries
- Line rate/nonblocking uplink/downlink ports
- Forwarding rate: 6.5 mpps with 64-byte packets
- Egress buffer: 2 MB
- Unicast MAC addresses: 8000
- Internet Group Management Protocol (IGMP) multicast groups: 255
- Max VLANs: 1005
- IPv4 MAC security ACEs: 384 (default TCAM template)
- Bidirectional, 128 NAT entries
More Information
Part#
IE-2000-16T67P-G-E
EAN
0882658623448
Specification
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | BRIDGE-MIB, CALISTA-DPA-MIB, CISCO-ACCESS-ENVMON-MIB, CISCO-ADMISSION-POLICY-MIB, CISCO-AUTH-FRAMEWORK-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CAR-MIB, CISCO-CDP-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CLUSTER-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DATA-COLLECTION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-ENTITY-ALARM-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ENVMON-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FTP-CLIENT-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-MIB, CISCO-SNMP-TARGET-EXT-MIB, CISCO-STACK-MIB, CISCO-STACKMAKER-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VTP-MIB, ENTITY-MIB, ETHERLIKE-MIB, HC-RMON-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, IF-MIB, IP-FORWARD-MIB, IP-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, NETRANGER, NOTIFICATION-LOG-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-CPU-MIB, OLD-CISCO-FLASH-MIB, OLD-CISCO-INTERFACES-MIB , CISCO-IP-STAT-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-MAC-AUTH-BYPASS-MIB, CISCO-MAC, NOTIFICATION-MIB, CISCO-MEMORY-POOL-MIB, CISCO-PAE-MIB, CISCO-PAGP-MIB, CISCO-PING-MIB,CISCO-PORT-QOS-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RESILIENT-ETHERNET-PROTOCOL-MIB, CISCO-RTTMON-ICMP-MIB, CISCO-RTTMON-IP-EXT-MIB, CISCO-RTTMON-MIB, CISCO-RTTMON-RTP-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-MEMORY-MIB, OLD-CISCO-SYS-MIB<, OLD-CISCO-SYSTEM-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, RMON-MIB, RMON2-MIB, SMON-MIB, SNMP-COMMUNITY-MIB, SNMP-FRAMEWORK-MIB, SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-PROXY-MIB, SNMP-TARGET-MIB, SNMP-USM-MIB, SNMP-VIEW-BASED-ACM-MIB, SNMPv2-MIB, TCP-MIB, UDP-MIB |
| Switch layer | L2 |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Data transmission | |
| Number of multicast groups filtered | 255 |
| Throughput | 6.5 Mpps |
| Packet buffer memory | 2 MB |
| MAC address table | 8000 entries |
| Performance | |
| Packet buffer memory | 2 MB |
| Mean time between failures (MTBF) | 374052 h |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | White |
| Mean time between failures (MTBF) | 374052 h |
| Rack mounting | No |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Compatible memory cards | SD |
| Security | |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SSH |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Number of multicast groups filtered | 255 |
| Multicast support | Yes |
| Protocols | |
| Management protocols | IGMP, IPv4, IPv6, HTTP, SNMP |
| Switching protocols | IEEE 802.1, 802.3, 802.3at, 802.3af, VTPv2, NTP, UDLD, CDP, LLDP, Flex Link, REP, VTPv3, EtherChannel, Voice VLAN |
| Certificates | |
| Safety | UL/CSA 60950-1, EN 60950-1, CB to IEC 60950-1, NOM to NOM-019-SCFI, CCC |
| Electromagnetic compatibility | FCC 47 CFR Part 15 Class A, EN 55011, EN 55022A Class A, VCCI Class A, AS/NZS CISPR 22 Class A, CISPR 11 Class A, CISPR 22 Class A, ICES 003 Class A, CNS13438 Class A, KN22, EN55024, CISPR 24, AS/NZS CISPR 24, KN24, Brazil ANATEL certification, EN 61000-4-2 Electro Static Discharge, EN 61000-4-3 Radiated RF, EN 61000-4-4 Electromagnetic Fast Transients, EN 61000-4-5 Surge, EN 61000-4-6 Conducted RF, EN 61000-4-8 Power Frequency Magnetic Field, EN 61000-4-9 Pulse Magnetic Field, EN 61000-4-10 Oscillatory Magnetic Field, EN-61000-4-29 DC Power Voltage Dips and Immunity |
| Memory | |
| Packet buffer memory | 2 MB |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP67 |
| Safety | UL/CSA 60950-1, EN 60950-1, CB to IEC 60950-1, NOM to NOM-019-SCFI, CCC |
| Product colour | White |
| Electromagnetic compatibility | FCC 47 CFR Part 15 Class A, EN 55011, EN 55022A Class A, VCCI Class A, AS/NZS CISPR 22 Class A, CISPR 11 Class A, CISPR 22 Class A, ICES 003 Class A, CNS13438 Class A, KN22, EN55024, CISPR 24, AS/NZS CISPR 24, KN24, Brazil ANATEL certification, EN 61000-4-2 Electro Static Discharge, EN 61000-4-3 Radiated RF, EN 61000-4-4 Electromagnetic Fast Transients, EN 61000-4-5 Surge, EN 61000-4-6 Conducted RF, EN 61000-4-8 Power Frequency Magnetic Field, EN 61000-4-9 Pulse Magnetic Field, EN 61000-4-10 Oscillatory Magnetic Field, EN-61000-4-29 DC Power Voltage Dips and Immunity |
| Rack mounting | No |
| Power | |
| Power consumption (max) | 150 W |
| Power consumption (typical) | 137 W |
| Input voltage | 50 - 57 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 4200 m |
| Non-operating altitude | 0 - 4200 m |
| Weight & dimensions | |
| Width | 300.7 mm |
| Depth | 81.5 mm |
| Height | 241.7 mm |
| Weight | 3.3 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Input voltage | 50 - 57 V |
