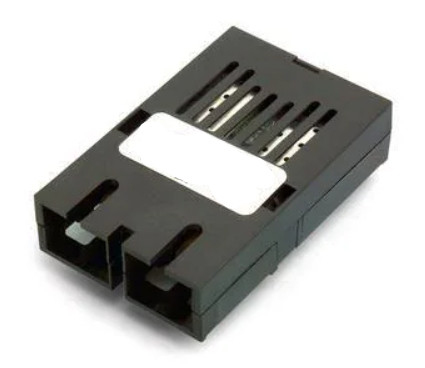

ATGBICS HFCT-53D5EMZ Avago Broadcom Compatible Transceiver 1x9 for ATM Gigabit Ethernet Black Case (1300nm 1.25Gbps SMF 10km SC 5v)
HFCT-53D5EMZ Avago Broadcom Compatible Transceiver 1x9 for ATM Gigabit Ethernet Black Case (1300nm 1.25Gbps SMF 10km SC 5v)
Part#:
HFCT-53D5EMZ-C
Manufacturer:
ATGBICS
Excl. VAT: £26.00
Available to Backorder: contact for lead time
ATGBICS Avago Broadcom compatible HFCT-53D5EMZ 1x9 Through hole form factor network transceiver supports a distance of up to 10km over single-mode fibre (SMF) using a wavelength of 1300nm via an SC Duplex connector. This product operates within a commercial temperature range. Our product meets the specification of Avago Broadcom HFCT-53D5EMZ and we proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
More Information
Part#
HFCT-53D5EMZ-C
EAN
5056468751928
Specification
| Performance | |
|---|---|
| Digital Diagnostics Monitoring (DDM) | No |
| Fiber optic connector | SC |
| Auto MDI/MDI-X | No |
| Maximum transfer distance | 10000 m |
| Wavelength | 1300 nm |
| Maximum data transfer rate | 1000 Mbit/s |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Ethernet interface type | Gigabit Ethernet |
| Fiber ethernet cabling technology | 1000BASE |
| Coarse Wavelength Division Multiplexing (CWDM) | No |
| Country of origin | Taiwan, China |
| Easy to install | Yes |
| Product colour | Black |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Brand compatibility | Avago Technologies |
| Features | |
| Easy to install | Yes |
| Product colour | Black |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Brand compatibility | Avago Technologies |
| Country of origin | Taiwan, China |
| Certification | CE, FCC, RoHS, REACH |
| Power | |
| Input voltage | 5 V |
| Certificates | |
| Certification | CE, FCC, RoHS, REACH |
| Compliance certificates | UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE |
| Sustainability | |
| Sustainability compliance | Yes |
| Doesn't contain | Lead |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Network | |
| Fiber optic connector | SC |
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Technical details | |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Auto MDI/MDI-X | No |
| Maximum transfer distance | 10000 m |
| Wavelength | 1300 nm |
| Sustainability compliance | Yes |
| Doesn't contain | Lead |
| Compliance certificates | UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE |
| Packaging data | |
| Package type | Box |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | Taiwan, China |
Manufacturer
ATGBICS
