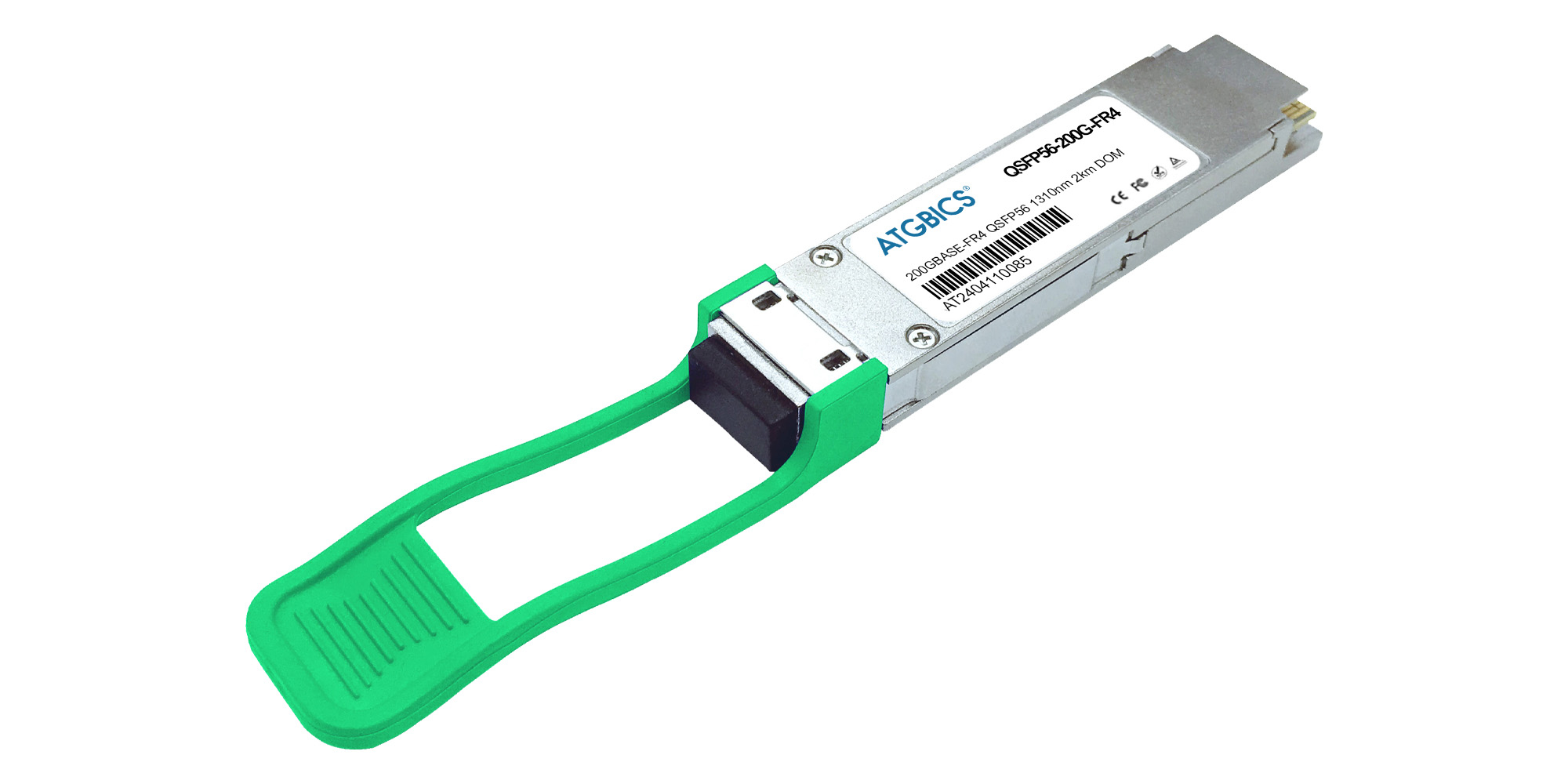

ATGBICS FN-TRAN-QSFP56-FR4 Fortinet compatible Transceiver QSFP56 200GBase-FR4 (1270/1290/1310/1330nm SMF 2km LC DOM)

FN-TRAN-QSFP56-FR4 Fortinet compatible Transceiver QSFP56 200GBase-FR4 (1270/1290/1310/1330nm SMF 2km LC DOM)
Part#:
FN-TRAN-QSFP56-FR4-C
Manufacturer:
ATGBICS
Excl. VAT: £1,922.00
Available to Backorder: contact for lead time
ATGBICS Fortinet® compatible FN-TRAN-QSFP56-FR4 QSFP56 200GBase-FR4 form factor network transceiver supports a distance of up to 2km over single-mode fibre (SMF) using a wavelength of 1270/1290/1310/1330nm via an LC Duplex connector. This product operates within a commercial temperature range. Digital optical monitoring (DOM) support is also present enabling real-time monitoring of the parameters of the fibre optic transceiver. Our product meets the specification of Fortinet® FN-TRAN-QSFP56-FR4 and we proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
More Information
Part#
FN-TRAN-QSFP56-FR4-C
Specification
Performance
SFP transceiver typeFiber optic
Ethernet LANYes
Wavelength-division multiplexing (WDM)No
Digital Diagnostics Monitoring (DDM)Yes
Fiber optic connectorLC
Maximum transfer distance2000 m
Wavelength1330 nm
Maximum data transfer rate200000 Mbit/s
Interface typeQSFP56
Single-mode fiber (SMF) supportedYes
Multi-mode fiber (MMF) supportedNo
Ethernet interface type200 Gigabit Ethernet
SFP transceiver standardFR4
Fiber ethernet cabling technology200GBASE
Export Control Classification Number (ECCN)5A991
Country of originUnited Kingdom
Easy to installYes
Product colourSilver
Housing materialMetal
Plug and PlayYes
Hot-Plug supportYes
Hot-swapYes
Brand compatibilityFortinet
Features
Easy to installYes
Product colourSilver
Housing materialMetal
Plug and PlayYes
Hot-Plug supportYes
Hot-swapYes
Brand compatibilityFortinet
Country of originUnited Kingdom
CertificationCE, EMC, FCC, REACH, RoHS, TÜV
Certificates
CertificationCE, EMC, FCC, REACH, RoHS, TÜV
Compliance certificatesTÜV mark, UKCA, Electromagnetic Compatibility (EMC), REACH, Federal Communications Commission (FCC), RoHS, CE
Sustainability
Doesn't containLead
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Minimum operating temperature0 °C
Maximum operating temperature70 °C
Network
SFP transceiver typeFiber optic
Fiber optic connectorLC
Maximum data transfer rate200000 Mbit/s
Interface typeQSFP56
Ethernet interface type200 Gigabit Ethernet
Technical details
Plug and PlayYes
Hot-Plug supportYes
Hot-swapYes
Maximum transfer distance2000 m
Wavelength1330 nm
Ethernet LANYes
Doesn't containLead
Compliance certificatesTÜV mark, UKCA, Electromagnetic Compatibility (EMC), REACH, Federal Communications Commission (FCC), RoHS, CE
Logistics data
Country of originUnited Kingdom
Manufacturer
ATGBICS
