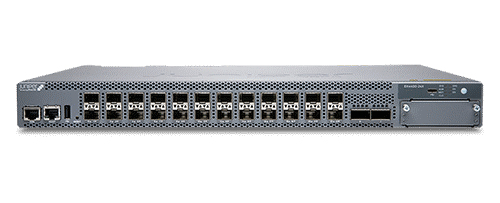

24X10GBASEX SWITCH WITH 2X100G
24x10GbaseX switch with 2x100G uplink ports. MACsec AES256. Airflow out of PSU. Optional module-4x10G or 4x25G
Part#:
EX4400-24X
Manufacturer:
Juniper
Excl. VAT: £7,222.08
RRP: £17,670.00
Save: 59%
In stock
The EX4400-24X is a compact, scalable, 10GbE switch ideal for enterprise campus distribution deployments. The AI-driven, cloud-native switch offers leading-edge technologies, including EVPN-VXLAN for building advanced campus fabrics and streaming telemetry for optimizing user experiences from client to cloud. It’s differentiated by features such as MACsec AES-256, microsegmentation using group-based policies, and Juniper Virtual Chassis technology.
The EX4400-24X can be deployed as a distribution switch in larger campuses or in small or medium-sized campus core networks. It’s cloud-ready and zero-touch provisioning (ZTP)-enabled, so you can onboard, configure, and manage it with Juniper Mist™ Wired Assurance for improved connected-device experiences. The EX4400-24X transmits rich telemetry to the Juniper Mist cloud, while Mist AI™ simplifies operations and enables actionable client-level insights in real time.
The EX4400-24X can be deployed as a distribution switch in larger campuses or in small or medium-sized campus core networks. It’s cloud-ready and zero-touch provisioning (ZTP)-enabled, so you can onboard, configure, and manage it with Juniper Mist™ Wired Assurance for improved connected-device experiences. The EX4400-24X transmits rich telemetry to the Juniper Mist cloud, while Mist AI™ simplifies operations and enables actionable client-level insights in real time.
More Information
Part#
EX4400-24X
EAN
0832938097926
Specification
Management features | |
---|---|
Multicast support | Yes |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
Network | |
IGMP snooping | Yes |
Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
VLAN support | Yes |
Spanning tree protocol | Yes |
Number of VLANs | 4093 |
10G support | Yes |
Virtual LAN features | Policy-based VLAN, Port-based VLAN, Private VLAN, Voice VLAN |
Virtual LAN features | |
VLAN support | Yes |
Number of VLANs | 4093 |
Virtual LAN features | Policy-based VLAN, Port-based VLAN, Private VLAN, Voice VLAN |
Data transmission | |
Number of VLANs | 4093 |
Throughput | 803 Mpps |
Number of static routes | 9216 |
MAC address table | 112000 entries |
Switching capacity | 1080 Gbit/s |
Store-and-forward | Yes |
Static route | Yes |
Technical details | |
Form factor | 1U |
Product colour | Grey |
Rack mounting | Yes |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
Security | |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
Access Control List (ACL) ingress | 2048 |
DHCP features | DHCP client, DHCP relay, DHCP server, DHCPv6 server |
Multicast features | |
Multicast support | Yes |
Protocols | |
Management protocols | SNMP: v1, v2c, v3 |
Routing protocols | IS-IS, OSPFv3, RIPng |
Design | |
Form factor | 1U |
Product colour | Grey |
Rack mounting | Yes |
Number of fans | 2 fan(s) |
Redundant fans support | Yes |
Power | |
Power consumption (typical) | 550 W |
Power source | AC |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 0 - 90% |
Operating temperature (T-T) | 0 - 45 °C |
Operating relative humidity (H-H) | 5 - 90% |
Operating altitude | 0 - 1828.8 m |
Weight & dimensions | |
Width | 441.7 mm |
Depth | 430 mm |
Height | 43.7 mm |
Manufacturer
Juniper
