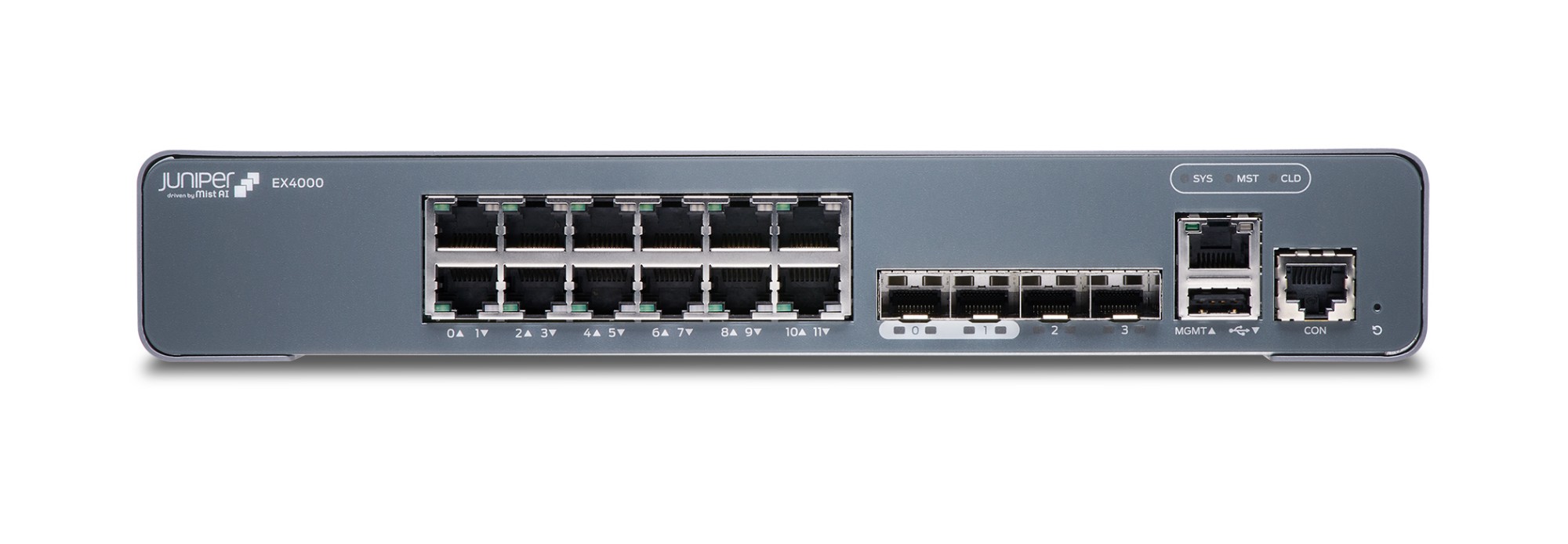

Juniper EX4000-12T network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Grey
EX4000-12T - Compact, fanless switch offering 12 x 1GbE non-PoE access ports, 2 x 1/10G SFP+ uplink ports, and 2 x 10G SFP+ Virtual Chassis (VC) ports
Part#:
EX4000-12T
Manufacturer:
Juniper
Excl. VAT: £585.32
RRP: £1,249.00
Save: 53%
Available to Backorder: contact for lead time
The Juniper Networks EX4000 line of switches offers a Cloud-Native, AI-Native portfolio of access switches ideal for enterprise branch, remote office, and enterprise campus networks. EX4000 switches combine the simplicity of the cloud, the power of Mist AI™, and a robust high-performance hardware foundation to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, you can effortlessly onboard, configure, and manage EX4000 switches from the cloud. This simplifies operations, improves visibility, and ensures a optimal experiences for connected devices.
Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4000 supports a wide range of deployment scenarios. As scaling requirements increase, you can rely on Juniper’s Virtual Chassis technology to seamlessly connect and manage up to six EX4000 switches as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.
Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4000 supports a wide range of deployment scenarios. As scaling requirements increase, you can rely on Juniper’s Virtual Chassis technology to seamlessly connect and manage up to six EX4000 switches as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.
More Information
Part#
EX4000-12T
EAN
0832938104945
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3z, IEEE 802.3x, IEEE 802.3by, IEEE 802.3af, IEEE 802.3at |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| 10G support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| Throughput | 77 Mpps |
| MAC address table | 32000 entries |
| Switching capacity | 104 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Static route | Yes |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) ingress | 510 |
| Access Control List (ACL) egress | 510 |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP: v1, v2c, v3 |
| Routing protocols | BGP, IP, IS-IS, OSPF, OSPFv3, RIP-1, RIP-2, RIPng |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Memory type | DRAM |
| Internal memory | 4096 MB |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 34 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 4572 m |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN |
| Weight & dimensions | |
| Width | 264 mm |
| Depth | 243 mm |
| Height | 43.4 mm |
| Weight | 2.3 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Memory | |
| Memory type | DRAM |
| Internal memory | 4096 MB |
Manufacturer
Juniper
